Electric Diesel Soil Test Drilling Machine For Water Wells 1 Year Warranty

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 7-12 days

Brand: JINZHOU SHITAN

Product Description

High Quality Electric Diesel Soil Test Drilling Rig Machine for Water Wells

Product Description:

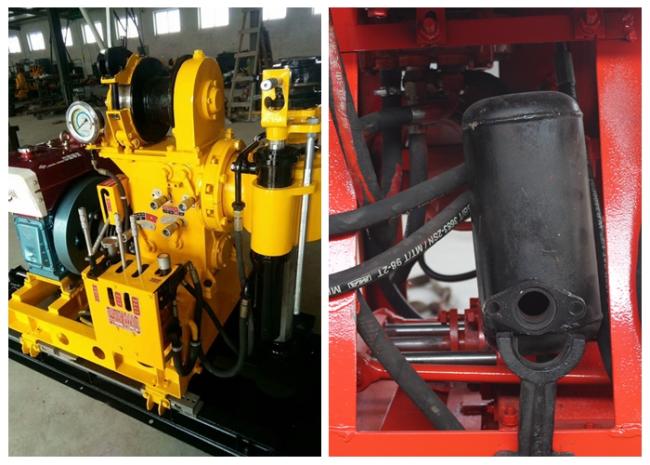

The ST-180 hydraulic core drilling rig is a low speed and high torque portable drilling machine with oil pressure.

This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.

Product Parameter:

Drilling depth	100/180 m
Initial hole dia.	150mm
Final hole dia.	75/46mm
Drill rod dia.	42/43mm
Angle range	90°-75°
Dimensions(L×W×H)	1620×970×1560(mm)
Weight(without power unit)	620kg
Migration distance	350mm
Swivel Head
Spindle speed(5-speed)	1010/790/470/295/140r/min
Spindle stroke	450mm
Upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Hoist
Max .lifting capacity(single rope)	15KN
Lifting rotating speed	121/76/36r/min
Hoisting drum linear velocity (two levels)	0.166/0.331/0.733/1.465m/s
Drum dia.	140mm
Wire rope dia.	9.3mm
Wire rope capability	35m
Brake dia.	252mm
Brake belt width	50mm
Oil Pump
Model	YBC-12/80
Rated pressure	8Mpa
Displacement	8ml/r
Rated speed	1500r/min
Power (diesel engine or motor)
Model (diesel engine)	S1100A2
Rated speed	2200r/min
Rated power	10.3KW
Model (motor)	Y160M-4
Rated power	11KW
Rated speed	1460r/min
