Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig
Small Borehole Geological Rock Core Water Well Drilling Rig Machine Portable
Core Drilling Rig

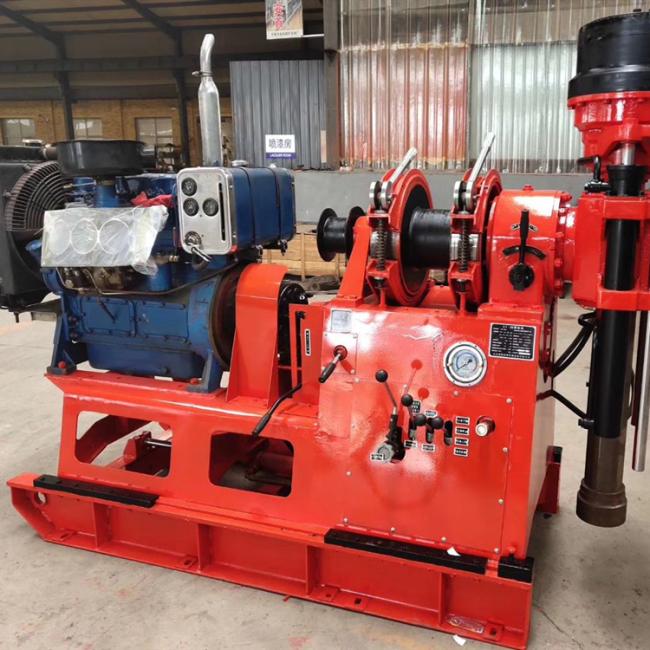

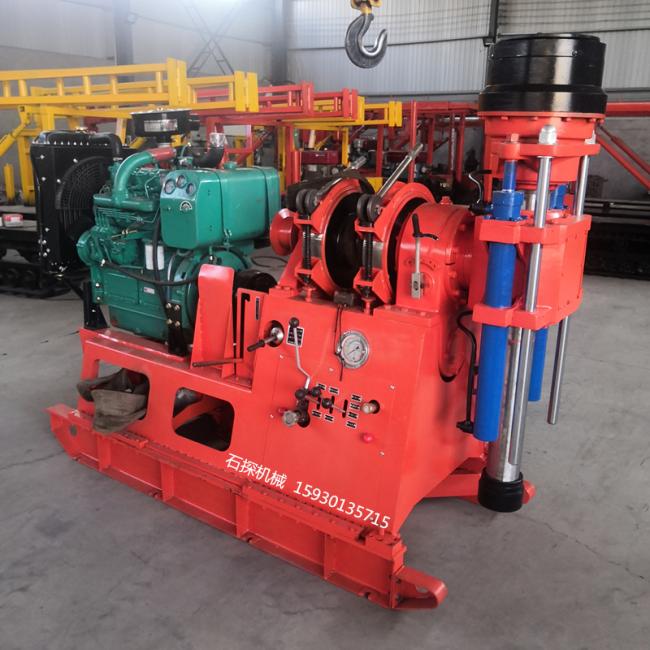

XY-2B hydraulic core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.
Core Drilling Rig Product parameters
| XY-2 BType | |||
| Drill | Swivel Head | ||
Drilling depth | Max.100~530m | Spindle speed | 57 99 157 217 270 470 742 1024 r/min |
Hole diameter | Max.600m | Spindle stroke | 560mm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
| Angle range | 0°~90° | Spindle lifting capacity | Max. 60KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Gear oil pump |
| Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 150r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 212kgs | Model(diesel engine | 395K2 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 19.85KW |
| Drum diameter | 140mm | Rated speed | 2200 r/min |
| WEIGHT | AROUND 1200kgs | ||
| SIZE | 2220x900x1880mm | ||
Core Drilling Rig Advantages
This machine gained 3 national practical new type patents invention.
1. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .
2. To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.
3. To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.
4. To be equipped with speed reducer and sludge pump,being integrated structure.
5. The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.
6. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
7. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
