High Working Efficiency Yuchai Engine OEM GK 200 Geological Drilling Rig
High Working Efficiency Yuchai Engine OEM GK 200 Geological Drilling Rig Machine

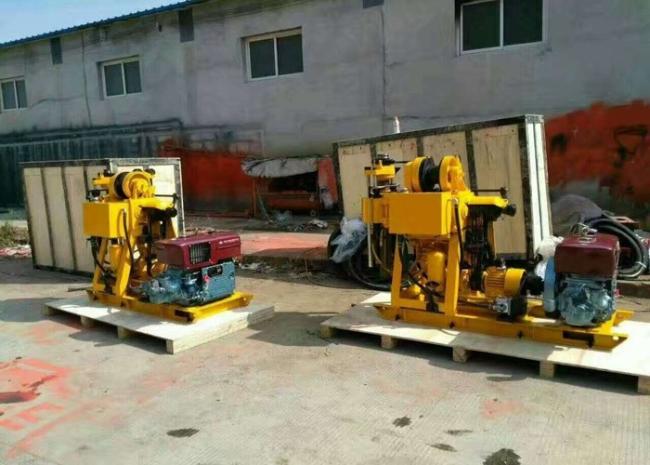

GK 200 Geological Drilling Rig Machine Introduction
It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings. According to different strata, it drills by choosing diamond, composite films and alloy.
GK 200 Geological Drilling Rig MachineTech Information
|
Drilling depth
|
200m | |
| Maximum open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 60mm | |
| Drilling angle | 90°~75° | |
| Drill weight (No include power) | 975kg | |
| Unity machine dimensions | 1433×697×1273m | |
| Spindle | ||
| spindle speed | 64 128 287 557r/min | |
| Spindle stroke | 450mm | |
| Winch | ||
| Max.single line hoisting capacity | 2400kg | |
| Single line lifting speed | 0.41,0.82,1.64m/s | |
| steel wire rope caliber | 13m(35m) | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement |
170/150L/min(diesel or electromotor)
|
|
| Diesle engine | ZS1115 16.2kw 2200r/min | |
| Electric motor | Y160M—4 11kw 1440r/min | |
GK 200 Geological Drilling Rig Machine Features
1. With oil pressure automatic feeding mechanism, high drilling efficiency. 2. The ball card clamping mechanism is used to replace the chuck, which can implement non-stop inverted rod. 3. Centralized handle, convenient operation, safe and reliable. 4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis, occupying small space. 5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.
FAQ Of GK 200 Geological Drilling Rig Machine
Q1. What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
