Machinery Machine Tool Equipment Metal Cutting Machinery CNC Plasma Cutters
China CNC Plasma Cutting Machine 1500*300mm cutting area with high quality 200A China Plasma power supply for sale

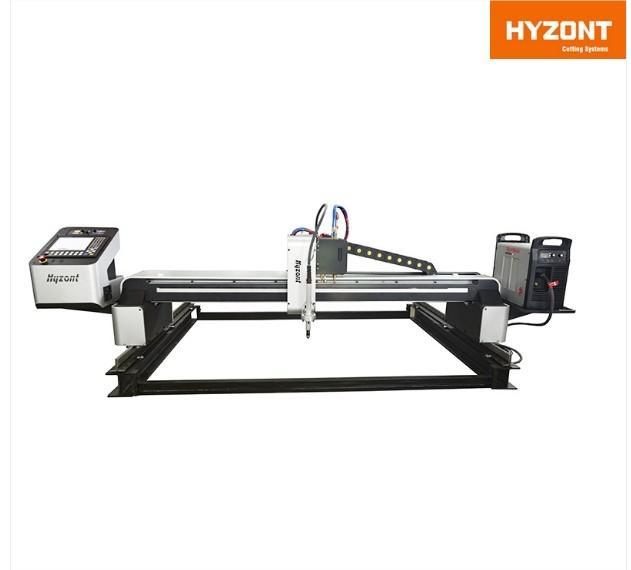

CNC Plasma Cutting Machine 1500*300mm cutting area with high quality 200A China Plasma power supply

Price Negotiable
Price: USD3000-5000/set
MOQ: 1
Delivery Time: 5-8DAYS
Brand: ZHAOZHAN
Product Description



PMCNC Series is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .

Model
PMCNC-2560
Power source
machine:AC220V/50hz / palasma cutter: AC380V/50hz
Effective cutting width
2500mm
Effective cutting length
6000mm ( accept tailor-made length)
Cutting thickness(flame)
5-120mm (oxygen+acetylene or propane)
Cutting thickness(plasma)
0.5-40mm Depending on the customer's plasma power supply
Cutting speed
20-3500mm/min (max.4000mm/min)
Cutting accuracy
±0.5m
Line marking accuracy
±0.2mm
Motion accuracy
±0.2mm
Torch lifting distance
≤150mm
Gas pressure
Max 0.1Mpa
Oxygen pressure
Max 0.7Mpa
Applicable gas type
Oxygen and propane or acetylene
Working interface
Chinese and English (other languages can be customized)
Duty cycle
24hours
Working temperature
0~45℃
CAD drawing conversion
nesting cut code StarCAM
Processing Materials
carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates
