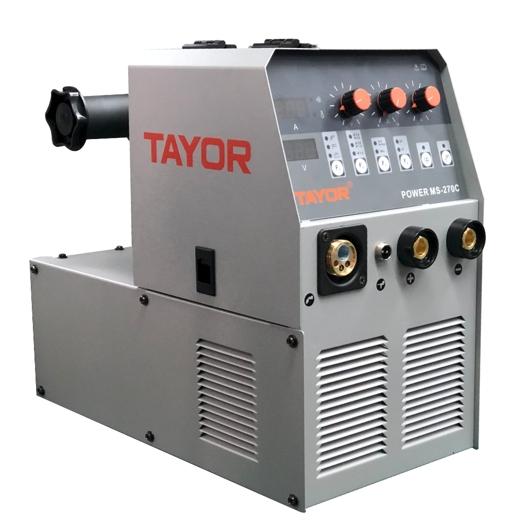

POWER MS-270C DC INVERTER MIG WELDER MIG and MMA 270A IGBT CV /CC salable welding machine
POWER MS-270C DC INVERTER MIG WELDING MACHINE
POWER MS-270C provides excellent arc performance with solid wire in short circuit, globular and spray transfers, and with flux or metal cored wires in globular and spray transfer modes.
Standard features include:output voltage regulation, built-in overload protection, voltage and amperage meters, environmental protection for optimum reliability in harsh environments.
·Aluminum wire/rods 5356/4043
·Stainless steel wire/rods 308L/309L/316L ·Carbon steel wire/rods 70S-6
·Flux cored wire 71T-1
·Gasless wire 71T-11/71T-GS
·Gasless stainless wire 308LT-0/309LT-0 ·Stainless steel Fulx cored wire 308L/309L/316L ·E6013/E6011/E7018 Electrode...
·Copper Electrode·Cast iron Electrode
·Hardfacing Electrode·Stainless steel Electrode
| Machine Specifications | |
| Input Voltage | 220V 1ph 50/60Hz |
| Input Current | 59.2A |
| Open Circuit Voltage | 62V |
| Load Voltage | 26.5 V |
| Welding Current | 40~250 A |
| Wire diameter | 0.6-1.2 mm |
| Duty Cycle (40ºC) |
20%@250A 60%@168A 100%@130A |
| Insulation Class | H |
| Protection Class | IP21 |
| Dimensions(L*W*H) | 524*251*425mm |
| Weight | 18.1kg |
