China Carbon Steel Tube Beveling Machine 75mm Thickness for Nuclear Power Industry for sale

Carbon Steel Tube Beveling Machine 75mm Thickness for Nuclear Power Industry

Price Negotiable
Price: Negotiable
MOQ: 1Set
Delivery Time: 5-8 days
Brand: AOTAI
Product Description

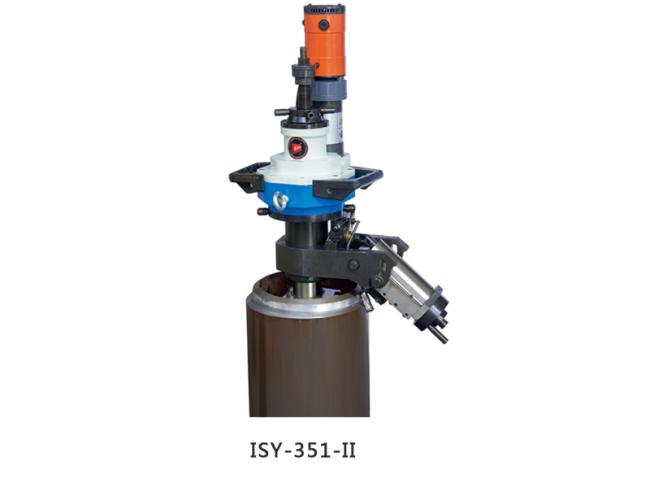

ISY-351-II 75 mm thickness Tube beveling machine Pipe diameter 150-330 mm

Model ISY-351-II

Applications:

Type II expend positioning pipe beveling machine adopts automatic knife-tooling mechanism design, and can adjust any range within the adjustable angle of the groove; it is suitable for groove processing of thick-walled pipe, and can also be used for the convex flange after welding.

  • Pipeline installation engineering
  • Pipeline repair site in petroleum, chemical industry
  • Natural gas pipeline
  • Boiler and head exchanger fabricating
  • Pharmaceutical industry
  • Nuclear power industry
  • Steel pipe construction and other industries

    • Main processing functions:

  • The outer end of the pipe end
  • he end of the pipe end
  • pipe end flat facing
  • composite bevel cutting
  • lange facing fabricate

    • Specification:

    Model Tube Range ID mm Wall thickness mm Rated Power kW Rotation Speed rpm
    Electric Pneumatic
    ISY-250-II TCM-250-II 80-240 ≤75 1.4 16
    ISY-351-II TCM-351-II 150-330 ≤75 1.4 10
    ISY-630-II TCM-630-II 300-600 ≤75 1.4 8
    ISY-850-II TCM-850-II 600-820 ≤75 2.0 7

    Powre Supply

    Electric

    Convenient power supply

    Stable Performance

    Popular choice

    Electric requirement: 220-230 V, 1-phase, 50/60 Hz

    Power: 1.43 kW, . 2.0 kW

    Detailed Pictures

    Tube beveling Machine
