Galvanized Steel 1 Hour Fire Rated Door With Vision Panel/ Commercial Fire Rated Doors
Eo-friendly & Healthy Galvanized Steel Hospital Insulated Fire Door With Vision Panel
Product Description
The hospital is a crowded public place and a key unit of fire safety. Doing a good job in hospital fire safety and preventing is an extremely important part of safety and security work. Fire doors are key equipment in fire protection of hospitals. They have the function of preventing the spread of fire and the spread of smoke, which can ensure the evacuation of personnel.

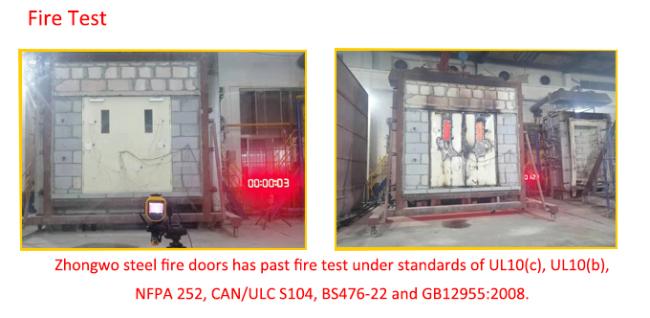

All of Zhongwo steel insulated fire doors are class A fully insulated fire doors according to Britsish standard BS476:part 22 and China standard GB12955:2008.
- Top Fire Insulation Performance: Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃.
- High Fire Integrity Performance: When fire test reaches 1.5 hours the flame on unexposed surface of our fire door sustained no longer than 10 seconds.
- Eco-friendly& Healthy Infilling Material: All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. This advantage protects patients from extra damages of smokes beside their illness.
- Flexible Opening: Door leaf opening force of our double swing flush panel steel fire door is no more than 66N, which ensures that even a weak patient can easily open the door in case of fire.
- High Anti-Explosion Performance of Vision Panel: All of our glasses inserted into door leafs are class A composite insulated fireproof glasses which has great performance in anti-explosion test and fire test. This ensures that patients and personnel in hospital from extra damages.
Specification
| Product Name | unequal leaf steel insulated fire door with vision panel |
| Fire Rating | 30 min/60 min/ 90min |
| Certificate | CCC, ISO9001:2008 |
| Door Leaf | 0.8 mm Galvanized Steel Sheet |

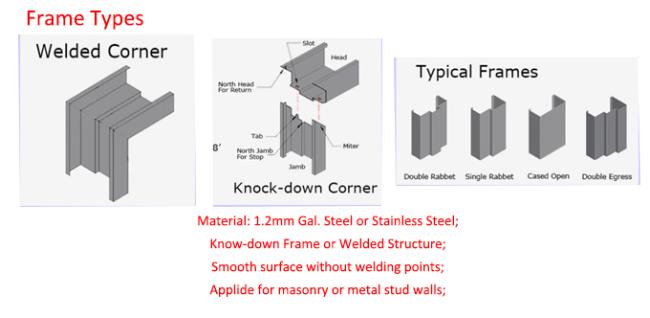

| Door Frame | 1.2 mm Galvanized Steel Sheet |
| Thickness of Door Leaf |
90min: 55 mm 60min: 45 mm 30min:40 mm |
| Frame Depth |
90min: 120 mm 60min: 112 mm 30min: 90 mm |
| Size | Standard: 1400X 2300(mm); 1400X 2100(mm); 1400X 2000(mm) or Customized As Your Request. |
| Glass |
90min: FFB-32-A1.5 60min: FFB-24-A1.0 |
| Open Style | Swing Open |
| Infilling Material |
90min: 53 mm Fireproof Perlite Board(400±40kg/m3) 60min: 43 mm Fireproof Perlite Board(300±30kg/m3) 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) |
| Weight | 25 Kg/m2 |
| Surface Treatment | Powder Coating; Heat Transfer Printing |
| Color |
Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request Heat Transfer Printing: Rosewood, Redwood, Oak Wood and Walnut or as Request |
| Fireproof Seal Strip |
90min: FPJ-B-20X 2 60min: FPJ-A-15X 2 30min: FPJ-A-15X 2 Or Customized |
| Warranty | 2 years |
| Package | Inside Bubble Bags with Outside Wooden Frame or As Request |
| Delivery Time | 35Days After Payment Received |
Why Choose Us?
1. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
2. Free pre-sales consult on any questions about fire doors.
3. More than 20 years experience.
4. Good after-sale service.
