UL Listed 3'X7' RH Open Fire Safety Door Powder Coating Finish High Security
Zhongwo UL Steel Fire Door
UL Listed 3'X7' RH Open Gal. Steel Fire Safety Door/ Powder Coating Finish
Zhongwo was established in 1995, after 24 years development she has become No.1 manufacturer in fire door industry in central China.
With two facilities of more than 32.12 acres she produce all kinds of fire doors such as steel fire doors, wood fire doors and wood fire doors with steel frames.
Workshop for steel fire doors covers more than 22 acres in which there are two modern production lines. With them we can provide for you up to 1200 doors each day.
Regulations & Fire Levels

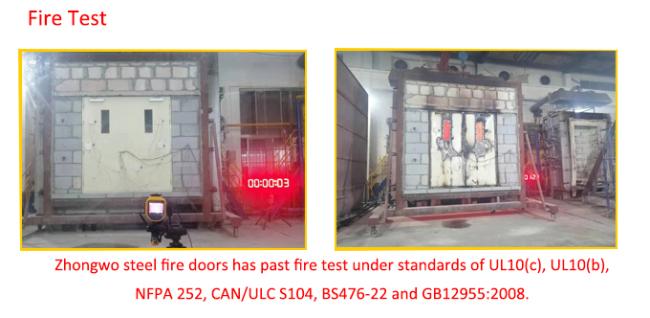

Zhongwo steel fire resistant doors are under test according to NFPA252, CAN / ULC S104, UL10 (b) and UL10 (c). And our fire doors hold themselves against fire in different levels such as 20mins, half hour, 45mins, 1 hour, 1.5 hours, 2 hours and 3 hours.
Specification
| Product Name | Zhongwo Fire Rated Steel Doors |
| Fire Rating | 20/30/60/90/150/180mins |
| Standard | NFPA252,ANSI/UL 10B,UL10C, CAN/ULC S104 |
| Material of Door Leaf | Galvanized Steel Sheet |
| Material of Door Frame | Galvanized Steel Sheet |
| Thickness of Steel Sheet of Door Leaf | 20-18-16 Ga. (1.0/1.2/1.6 mm) |
| Thickness of Steel Sheet of Door Frame | 18-16-14 Ga. (1.2/1.6/2.0mm) |
| Thickness of Door Leaf | US Standard Door: 45 mm |
| Frame Depth | 115 mm |
| Weight | 25-35Kg/m2 |
| Size(Overall Frame Size) |
Single Door: Max. 1200 X 2400 mm Double Door: 2100 X 2400 mm Or customized |
| Open Style | Swing Open |
| Infilling Material |
Standard: Fireproof Perlite Board; Magnesium Oxide Board Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam |
| Surface Treatment | Powder Coating, Wood Grain |
| Color | RAL |
| Glass |
Standard: American or British Standard Tested Clear or Wired Glass Or Customized As Request |
| Fireproof Seal Strip |
FPJ-B-20X 2 FPJ-A-15X 2 Or Customized |
| Delivery Time | 45Days After Payment Received |
Features:
- 3mm thick galvanized steel plate on sides of hinges, closer and
locks.
- Double U-type 43mm X 25mm skeleton made of 1.2mm galvanized steel.
- 25mm X 2mm gap covering stripe made of 0.8mm galvanized steel.
Glazing bead made of 0.8mm galvanized steel
- Steel covers on the lock sides made of 0.8mm galvanized steel for decoration
- Continuously welded edges
Hardware
UL listed door holders, hinges, locksets are standard choice for you. More options are aligners, stoppers, magnetic door holders etc.. We can also supply hardware to other standards upon request.
Remarks: If you don’t need hardware but only punching holes, please send us some samples of your ironmongery so that we can make it precise in door manufacturing.
Vision Panels
| Title | Description | Fire Rating | Certification |
| Insulated Fireproof Glass | 200*600*32 mm | Up to 3 hours | CCC |
| Glass Ceramic | 203.2*608.6*5 mm | Up to 3 hours | UL |
| Boron Glass | 203.2*608.6*6 mm | Up to 3 hours | UL |
Attention: In circumstances where fire doors with fire rating longer than 2 hours, we do not suggest doors with glass inserts.
Overseas Package
Our steel fire doors are packed specially for overseas transportation.
By default the package will be as following:
- PE paper around doors→2. foam plates around 4 edges and corners→3. foam sheets on perlite cotton between foam plates→4. strong carton
Customization: Wooden or Steel Pallet
Transport
Transportation by us is of different kinds and you can choose from ships, trucks, railways and aircraft.
Door to door delivery is also at your service.
