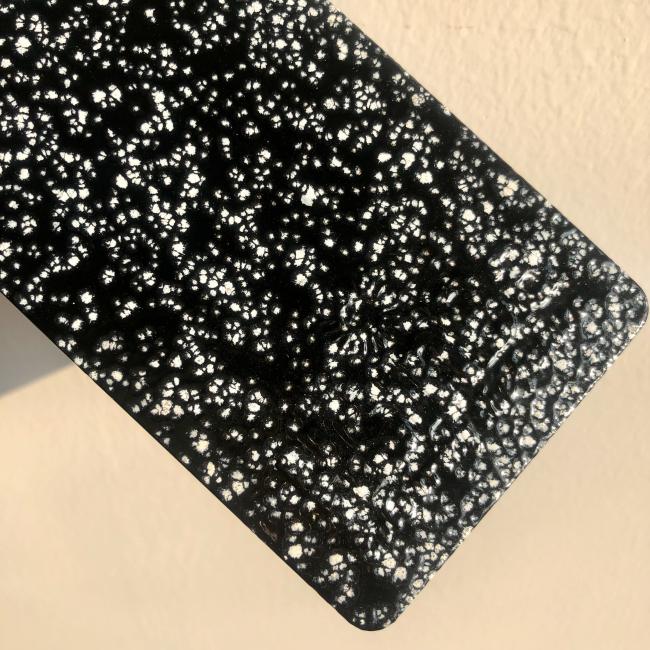

Spotted High Friction Electrostatic Powder Coating Enhanced Surface Coverage For Lighting
Super Matte Scratch Resistant Epoxy Polyester Powder Coating for Washer Panels Spray Paint
Product Information
What is electrostatic powder coating?
Electrostatic powder coating is an industrial-grade finishing process that uses electrically charged powder particles to coat conductive surfaces (primarily metals). The charged powder adheres uniformly to the grounded workpiece, then is heat-cured into a durable, protective layer. This method is eco-friendly, efficient, and widely used for high-quality finishes.
Key Advantages
✔ No Solvents or VOCs – Environmentally safer than liquid paint.
✔ Thick, Uniform Coating – Covers complex shapes evenly (no drips or runs).
✔ Durable & Resistant – Superior scratch, corrosion, and chemical resistance.
✔ Wide Range of Finishes – Matte, gloss, metallic, textures, and special effects.
✔ Cost-Effective – Minimal waste, fast production, long-lasting results.
Common Applications
-
Automotive: Wheels, engine parts, brake calipers.
-
Architecture: Window frames, fencing, railings.
-
Appliances: Refrigerators, washing machines, ovens.
-
Industrial: Machinery, agricultural equipment, electrical enclosures.
-
Consumer Goods: Furniture, lighting, bicycles.
-
Instruction
|
Application Voltage |
60-90 KV |
|
Gun to Component Distance |
15-30CM |
|
Curing Temperature |
180-200℃,10 min-15 min |
Storage Stability
|
♦Store in ventilated, dry, clean room, temperature < 25℃ |
♦Relative humidity 50-65% |
|
♦Away from direct sunlight, fire, heat |
♦For best performance, use within 6 months |
Product process
Product test
Quality control
|
Test Item |
Test Method |
Test Result |
|
Film Thickness |
ISO2360 |
60-80um |
|
Pencil Hardness |
ASTMD 3363 |
HB-H |
|
Bending |
ISO1519 |
≤10mm |
|
Grid Test 1mm |
ISO2409 |
0 Class |
|
Impulse Test |
ASTMD2794 |
Pass |
|
Cupping Test |
ISO1520 |
≥8mm |
|
Heat Resistance 1000 hours |
ISO6270-1 |
Popping<1mm |
|
Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours |
ISO9227 |
Corrosion Spreading<1mm |
Hsinda powder coating, offers the best levelling and adhesion to metal surface, with above 60% DSM resin content.
Packing & Shipping
|
Trade Terms |
FOB, CIF, CRF, CNF |
|
Payment Terms |
T/T, L/C, West Union, PayPal etc. |
|
Delivery time |
3-7 days after payment |
|
Packaging |
Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg |
|
Shipping |
By sea, by air, by courier |
Certificates
Company Information
- Company Name: Chengdu Hsinda polymer material co.,ltd
- Business Type: Manufacturer, Trading Company
- Year established: 2011
- Company Certifications:Supplier Assessment Certificate; ISO9001;SGS
- Main products: Epoxy powder coating, Polyester powder coating, Epoxy-polyester powder coating etc.
- Production Line: four advanced large-scale production lines, two experiment production lines
- Yearly capacity: 5000 tons
- Export market: Domestic Market, Africa, South America, Western Europe, Mid East etc.
- Advantage: Well- advanced manufacturing equipment, professional testing facilities,and excellent research group.
