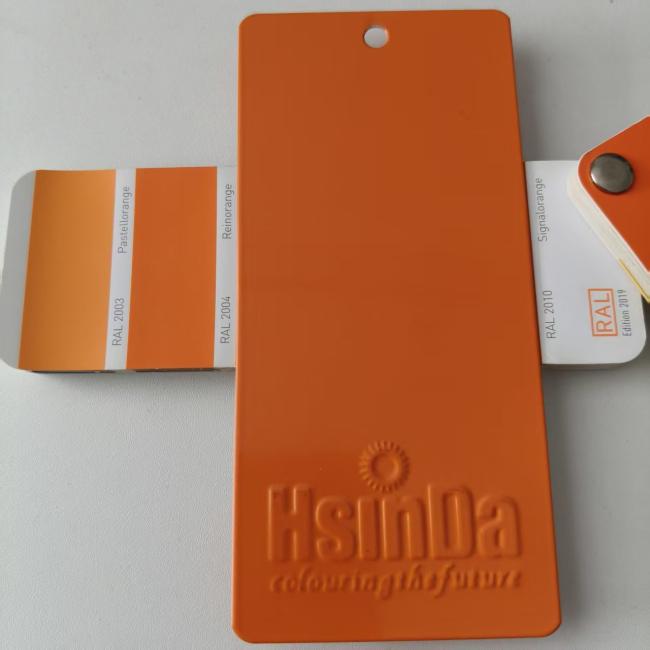

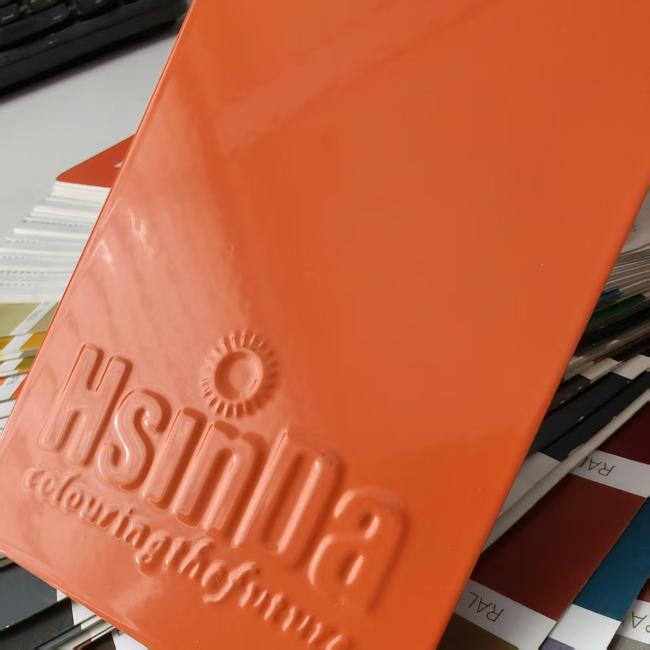

Outdoor Heat Oroof RAL 2004 90% Glossy Orange Dry Powder Coating Paint for Cabinet Box Spray Coat
Heat Oroof RAL 2004 90% Glossy Orange Dry Powder Coating Paint for Cabinet Box Spray Coat
1.Hsinda Powder Coating Powder Specification
| Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Salt Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
What is Powder Coating?
Powder coating is a type of coating that is applied as a free-flowing, dry powder. The mainDIFFERENCE between conventional liquid paint and powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form.
The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". So it is nontoxic and widely used in various fields.
- Powder coatings are based on Resin,Pigments,Curing Agents,Additives.
- Resin(including Epoxy, polyester, hybrid)giving the basic performance to the coating.
- Pigments, Providing the colour and effects, such as metallic or hammer.
- Curing Agents, reacts with the resin to form a continuous protective film.
- Additives, can be used to promote variations in the performance or surface effects.
| Trade Terms | FOB, CIF, CRF, CNF |
| Payment Terms | T/T, L/C, West Union, PayPal etc. |
| Delivery time | 3-7 days after payment |
| Packaging | Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg |
| Shipping | By sea, by air, by courier |
