1. Overview:

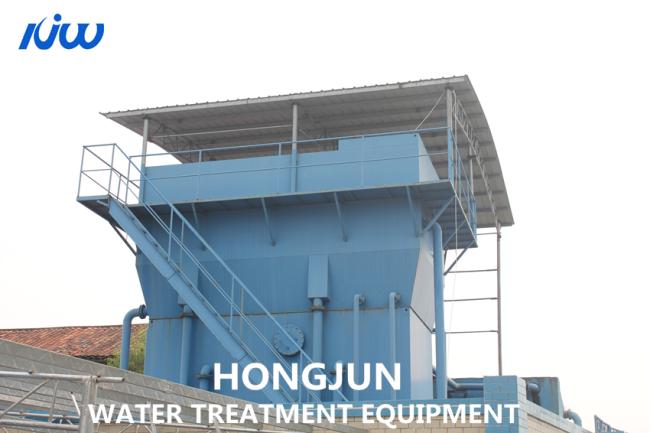

In this water purification plant, raw water is from river. At the begnning, river water will b passed through all in one sedimentation device to remove some big particles, like suspended solid, mud and sand. Then flow to mechanical filters to remove susended solid, colloid and silt. At last to activated carbon filter to remove organic matter, residual chlorine, color, odor and some impurities. All the devices above are sonsist of a perfect pre-treatment system.

The whole system could be controlled automatically by relay, water level detector, pressure transducer or manually by man power. Usually, the system is set to be controlled automatically. The system could provide pure water continuously. It's easy, safe and reliable.

2. Brief flow chat:

Chemicals dosing system:

PAC dosing device→Piping mixer

PAM dosing device→Pingping mixer

PH dosing device→Outlet from clean water tank

Bleaching powder dosing device→Outlet from clean water tank
