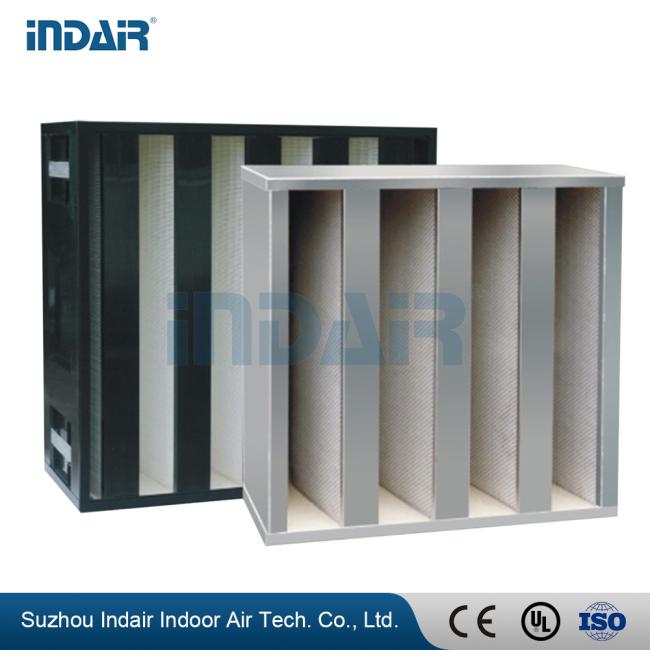

Mini Pleat Design V Bank Air Filter , Firm Structure V Type Filter Glass Fiber Media
Price:
negotiable
MOQ:
10
Delivery Time:
Negotiable
Brand:
indair
Product Description
Large Filtration Area V-Bank Hepa Filter V Cell Hepa Filter for clean room Low Pressure Drop large air flow
Product Description
Features:
1, V type with plastic frame
2, Mini-pleat design, glass fiber filter paper
3, High dust loading capacity, long service life
4, Firm structure, good performance under turbulent air flow
5, Efficiency:65%(M6),85%(F7),90%(F8)(EN779)
99.95%@MPPS(H13)
99.995%@MPPS(H14)
| Application: Very high efficiency final filtration, in air conditioning systems. Type: High flow rate very high efficiency filter. Frame: Polypropylene. Separator: hot melt beads. Media: Glass fiber. |
Gasket: CR,EVA,EPDM,PU Filter class acc. EN 1882: H11,H12,H13, H14. Recommended final pressure drop: 600 Pa. Temperature / Humidity: 70°C / 100% RH. |
Standard Size
We not only produce all kinds of different normal size V-Bank HEPA filter,but also accept all kinds of customized
size V-Bank HEPA filter.Please choose what size you want to buy refer to the below table,
| Model Dimensions (W×H×D) mm |
Filter grade EN 779 |
Airflow / pressure drop m³/h / Pa(± 15%) | Unit volume m³ |
| 610x610x292-5V | H13 | 3300/250 | 0.109 |
| 610x305x292-5V | H13 | 1650/250 | 0.055 |
| 610x610x292-4V | H13 | 2900/250 | 0.109 |
| 610x305x292-4V | H13 | 1450/250 | 0.055 |
| 592x592x292-4V | H13 | 2800/250 | 0.102 |
| 592x287x292-4V | H13 | 1400/250 | 0.050 |
| 610x610x292-5V | H14 | 3200/250 | 0.109 |
| 610x305x292-5V | H14 | 1600/250 | 0.055 |
| 610x610x292-4V | H14 | 2800/250 | 0.109 |
| 610x305x292-4V | H14 | 1400/250 | 0.055 |
| 592x592x292-4V | H14 | 2700/250 | 0.102 |
| 592x287x292-4V | H14 | 1350/250 | 0.050 |
