Side Installation HEPA Terminal Box , Disposable Ceiling HEPA Filter Box
Side Installation Terminal Disposable Ceiling Hepa Filters Module HEPA air box
Production Introduction:
It is a terminal filtration device used for renovation and new construction of 1000~300000 cleanroom, is the key equipment to meet purifying requirement
Construction Features:

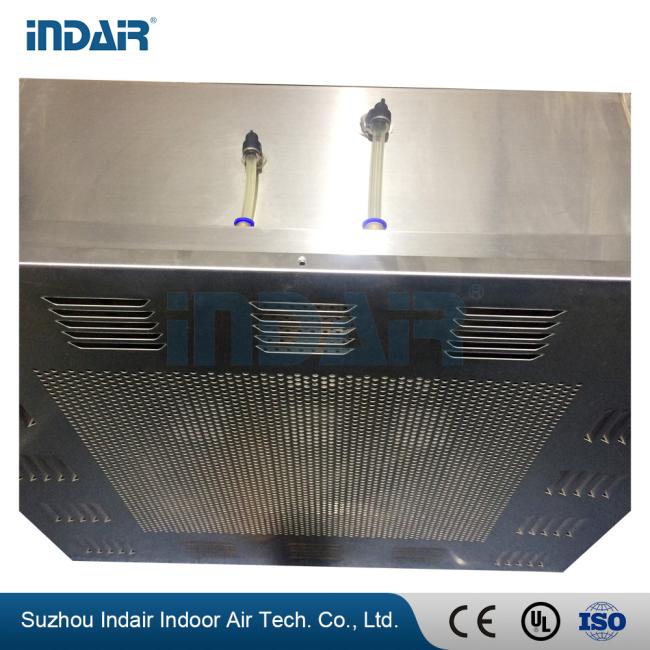

HEPA unit-cabinet, diffuser plate, HEPA filter, manual control valve;
Cabinet material-cold-rolled steel baking or stainless steel;
Diffuser plate-to ensure air flow speed in order to prevent the generation of eddy current;
Flange-round and square types, compact structure, sealing reliable, Cotton insulation available.
Advantages:
1. High Efficiency HEPA Filter Module;
2. Closed structure;
3. Light Shell,Hepa Filter;
4. Available leak and scan tested;high efficiency;Low resistance;Light weight;Easy to install;Low cost;
Parameters & Material:
Frame: Extruded Anodized Aluminum
Media: Microfne glass fber
Mounting system: Mechanical clamping structures
Max.Constant Temperature: 80℃ (170℉)
Recommended Final Resistance: 500Pa ( 2.0” W.G)
Flammability: UL Classifed
Relative Humidity: 100%
|
Model
|
Installation dimension of the box
B*A*Hmm |
Installation dimension of the box
B*A*H mm |
Nominal air flow rate m3/h
|
Nominal air flow rate m3/h
|
Pipe connection dimension
E*F mm |
External Dimension of the box
T*S*R mm |
Weight(kg)
|
|
Ceiling air supply
|
|||||||
|
GWT320
|
370*370*220
|
320*320*80
|
360
|
200*200
|
250*250
|
430*430*268
|
12
|
|
GWT350
|
400*400*220
|
350*350*80
|
450
|
200*200
|
250*250
|
460*460*268
|
14
|
|
GWT400
|
450*450*220
|
400*400*80
|
500
|
200*200
|
250*250
|
510*510*268
|
15
|
|
GWT484
|
534*534*220
|
484*484*80
|
800
|
320*200
|
270*250
|
594*594*268
|
16
|
|
GWT550
|
600*600*220
|
550*550*80
|
1000
|
320*200
|
370*250
|
660*660*268
|
17
|
|
GWT610
|
660*660*220
|
610*610*69
|
1000
|
320*250
|
370*300
|
720*720*268
|
18
|
|
GWT820
|
870*650*220
|
820*600*69
|
1300
|
320*250
|
370*300
|
930*710*268
|
20
|
|
GWT630
|
680*680*220
|
630*630*80
|
1500
|
320*250
|
370*300
|
740*740*268
|
22
|
|
GWT726
|
776*534*220
|
726*484*80
|
1200
|
400*200
|
450*250
|
836*594*268
|
22
|
|
GWT915
|
965*660*220
|
915*610*69
|
1500
|
500*250
|
550*300
|
1025*720*268
|
24
|
|
GWT968
|
1018*534*220
|
968*484*80
|
1700
|
500*200
|
550*250
|
1078*594*268
|
32
|
|
GWT1220
|
1270*660*220
|
1220*610*69
|
2000
|
500*200
|
550*250
|
1330*720*268
|
34
|
|
GWT945
|
995*680*220
|
945*630*80
|
2150
|
500*250
|
550*300
|
1055*740*268
|
32
|
|
GWT1260
|
1310*680*220
|
1260*630*80
|
3000
|
600*250
|
650*300
|
1370*740*268
|
37
|
