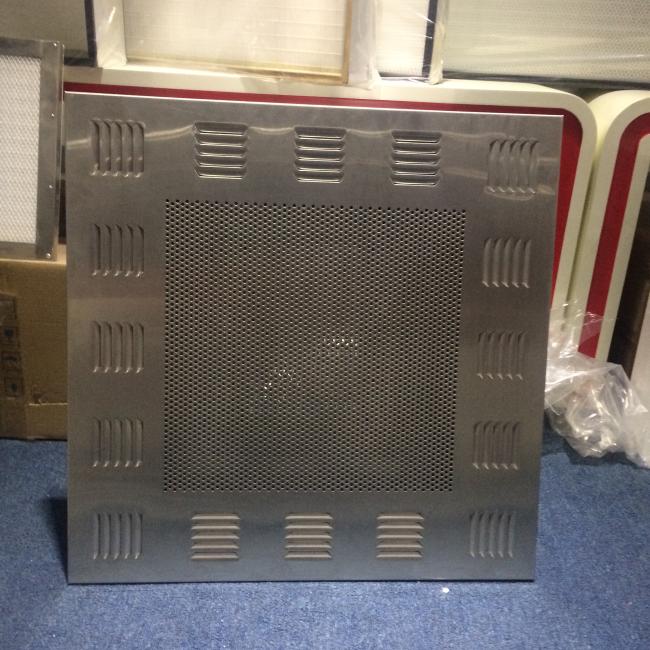

Customize Size HEPA Box High Strength Welded Construction With DOP Test
Electronics SS304 HEPA Terminal Box Replaceable Pharmaceutical ISO Extremely Durable with DOP test
Description
By coordinating with the use of ceiling T-bar system, T-Bar installation type Room Side Replaceable HEPA Filter module Unit can connect to air hose directly. And it is equipped with an anodized main body, filter protection face guard. In addition, the design of the internal air plenum is to have a gasket or U channel with Gel sealant inside of it to work as the sealing material between HEPA filter and module main body. So that, there is no any tools needed for HEPA filter replacement and this can protect HEPA filter from being polluted repeatedly. Moreover, as for its small size, light weight, easy assembling, and saving the time needed for its installation, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000. Customized sizes and specifications are available to meet customer's requirements.
Basic Info
Product Overview
Available with micro glass HEPA or ULPA media or extremely durable, low pressure drop ePTFE
Model | Installation dimension of the box B*A*Hmm | Installation dimension of the box B*A*H mm | Nominal air flow rate m3/h | Nominal air flow rate m3/h | Pipe connection dimension E*F mm | External Dimension of the box T*S*R mm | Weight(kg) |
Ceiling air supply | |||||||
GWT320 | 370*370*220 | 320*320*80 | 360 | 200*200 | 250*250 | 430*430*268 | 12 |
GWT350 | 400*400*220 | 350*350*80 | 450 | 200*200 | 250*250 | 460*460*268 | 14 |
GWT400 | 450*450*220 | 400*400*80 | 500 | 200*200 | 250*250 | 510*510*268 | 15 |
GWT484 | 534*534*220 | 484*484*80 | 800 | 320*200 | 270*250 | 594*594*268 | 16 |
GWT550 | 600*600*220 | 550*550*80 | 1000 | 320*200 | 370*250 | 660*660*268 | 17 |
GWT610 | 660*660*220 | 610*610*69 | 1000 | 320*250 | 370*300 | 720*720*268 | 18 |
GWT820 | 870*650*220 | 820*600*69 | 1300 | 320*250 | 370*300 | 930*710*268 | 20 |
GWT630 | 680*680*220 | 630*630*80 | 1500 | 320*250 | 370*300 | 740*740*268 | 22 |
GWT726 | 776*534*220 | 726*484*80 | 1200 | 400*200 | 450*250 | 836*594*268 | 22 |
GWT915 | 965*660*220 | 915*610*69 | 1500 | 500*250 | 550*300 | 1025*720*268 | 24 |
GWT968 | 1018*534*220 | 968*484*80 | 1700 | 500*200 | 550*250 | 1078*594*268 | 32 |
GWT1220 | 1270*660*220 | 1220*610*69 | 2000 | 500*200 | 550*250 | 1330*720*268 | 34 |
GWT945 | 995*680*220 | 945*630*80 | 2150 | 500*250 | 550*300 | 1055*740*268 | 32 |
GWT1260 | 1310*680*220 | 1260*630*80 | 3000 | 600*250 | 650*300 | 1370*740*268 | 37 |
