Fully Enclosing Bag In Bag Out Filter Housing For Safe Changing HEPA Filter
Price:
negotiable
MOQ:
1 unit
Delivery Time:
15-20 days
Brand:
indair
Product Description
Biotechnology Lab Pocket Filter Housing Bag in Bag out Bibo for changing HEPA filter
Product Description
Bag-In/Bag-Out (BIBO) is a bag type safe change filter housing. It can effectively prevent radioactive, toxic, or bacterial particles and gases from contaminating the environment. BIBO also provides safety for operators.
Typical applications include the nuclear industry, biochemical laboratories, fuel treatment,chemical and radioactive treatment, CDC and animal diseases research centers, hospitals andother healthcare facilities, toxic waste disposal facilities and biological laboratories.
Typical applications include the nuclear industry, biochemical laboratories, fuel treatment,chemical and radioactive treatment, CDC and animal diseases research centers, hospitals andother healthcare facilities, toxic waste disposal facilities and biological laboratories.
Product Overview
Testing: All BIBO housings have been tested and qualified after production to ensure it can be operated at an overpressure of up to positive 2500 Pa and negative 3000 Pa.
Structure: Housings are available as single modules or multi-modules systems and can be stacked to fulfill large air volume requirements, effectively reducing space constraints.
Filter Change: Filters are in wrapped in completely sealed safe change bags to achieve isolated changing.
Fully enclosing bag system for safe filter change
Multi-layer filtration can be applied to vertical downflow and horizontal airflow
Modular design – install any combinations for wide variety of uses.

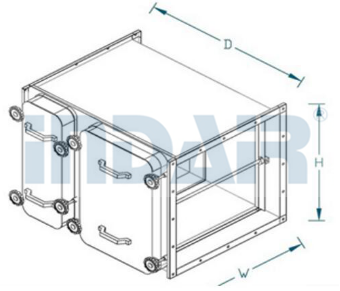

| Item | ID-HNH | ID-1CH | ID-4CH |
| SIZE(L x W x H) | 708 x 453 x 532 mm 27.9” x 17.9” x 21.0” | 708 x 708 x 794 mm 27.9” x 27.9” x 31.3” | 1416 x 1416 x 1694 mm 55.8” x 55.8” x 66.8” |
| Max Air Flow | 1700CMH/1000CFM | 3400CMH/2000CFM | 13600CMH/8000CFM |
| HEPA Efficiency | 99.99% @ 0.3um H13 @ EN 1822 610*305*292mm-1pcs | 99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-1pcs | 99.99% @ 0.3um H13 @ EN 1822 610*610*292mm-4pcs |
| Pre-filter | N.A | G4 @ EN 1822 | G4 @ EN 1822 |
| Carbon Filter | N.A | N.A | VOC |
| Material | EP Coated Cold-rolled steel/SUS 304 | ||
| PAO Test | SUS 304 Φ10mm | ||
| G.W. | 52 kg / 115 lbs | 86 kg / 190 lbs | 416 kg / 917 lbs |
| N.W. | 41 kg / 90 lbs | 72 kg / 159 lbs | 362 kg / 798 lbs |
| Pressure Sensor | Optional 0-500Pa | ||
| HEPA for Minipipe | Optional | ||
| Bio Sealed Valve | Optional | ||
| Disinfection Port | Optional | ||
| HEPA PAO Test | Optional | ||
