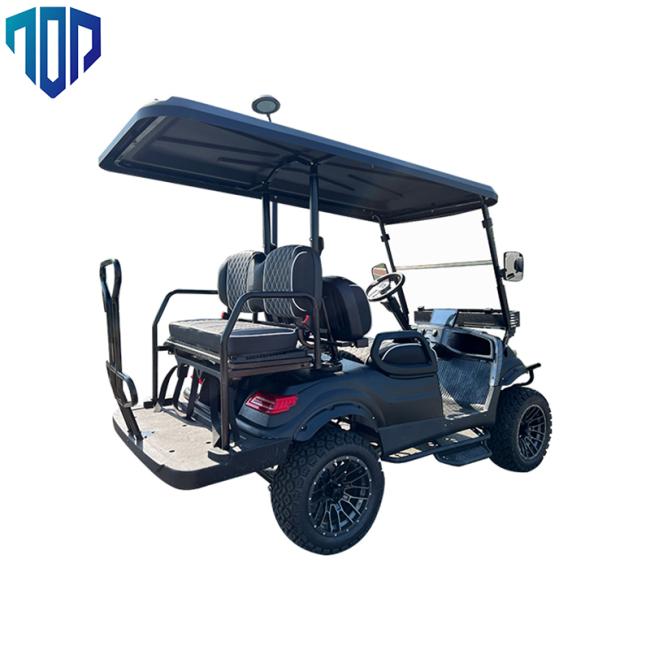

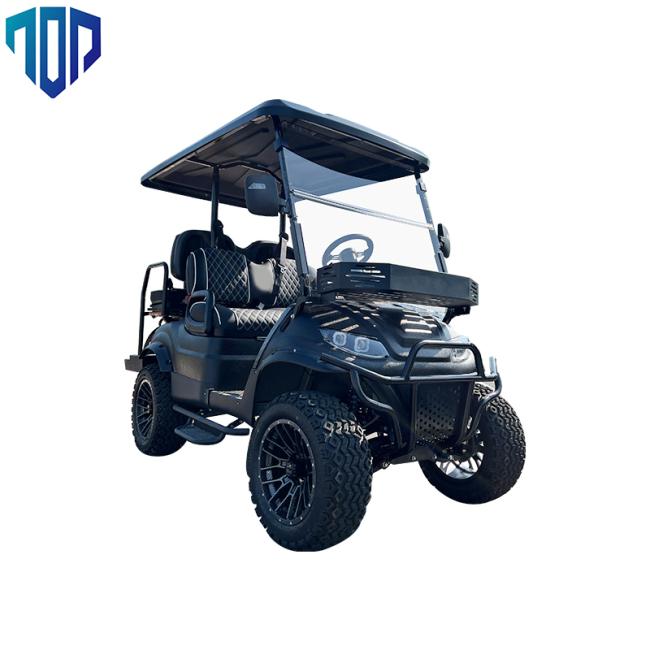

48V / 4kw Electrical Golf Cart Carbon Steel Powder Coated OEM / ODM
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
15-20 Work days
Brand:
TOP GOLF
Product Description
48V/4kw Golf Cart EV 2+2g Integral Rear Axle
Performance
| Body and Frame | |||
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | ||
| Body and Roof | PP plastic front body and rear body; FRP roof | ||
| Windshield | Organic plastic windshield, one-piece | ||
| Roof supports | Carbon Steel, powder coated | ||
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | ||
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | ||
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | ||
| Side trim | Aluminum alloy | ||
| Sider mirror | 2pcs, foldable | ||
| Electric System | |||
| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | ||
| Backup Buzzer | 12V | ||
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A | ||
| Steering, Brake, Transmission and Suspension | |||
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Brake system | Rear wheel mechanical brake, foot activated parking brake | ||
| Accelerator | Stepless speed change | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio12.49:1 | ||
| Suspension system | Front and rear plate leaf spring + cylinder hydraulic shock absorber | ||
Specifications
BODY PANELS
ABS 747 Injection molded P.P. Panels infused with automotive grade U.V. resistant gloss color finish.
foldable windshield, seat belts, seats cover, security light, swiss cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter
BATTERIES
Maintenance free batteries, easy for maintenance.
Maintenance free batteries, easy for maintenance.
MOTOR
Premium quality 48V 4kw high efficiency shunt wound, brushless AC motor
Premium quality 48V 4kw high efficiency shunt wound, brushless AC motor
CHARGER
DC 48v 16A fully automatic high frequency intelligent charger.
DC 48v 16A fully automatic high frequency intelligent charger.
STEERING
Self-Adjusting, permanently lubricated rack& pinion steering with sealed tie-rod ends.
Optional Spare Parts
Self-Adjusting, permanently lubricated rack& pinion steering with sealed tie-rod ends.
Optional Spare Parts
foldable windshield, seat belts, seats cover, security light, swiss cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter
Packaging & Shipping
1. Delivery date: 15 days for mass producing
2. 1*20'GP fit 4 units.1*40'HQ fit 16 units.
3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.
Our Service
We provide 12 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
Why choose us?
a. Delivery in Time
b. High quality with reasonable price
c. Quick response to all your inquiry for 5 minutes.
d. Provide customers with high quality products and efficient service.
