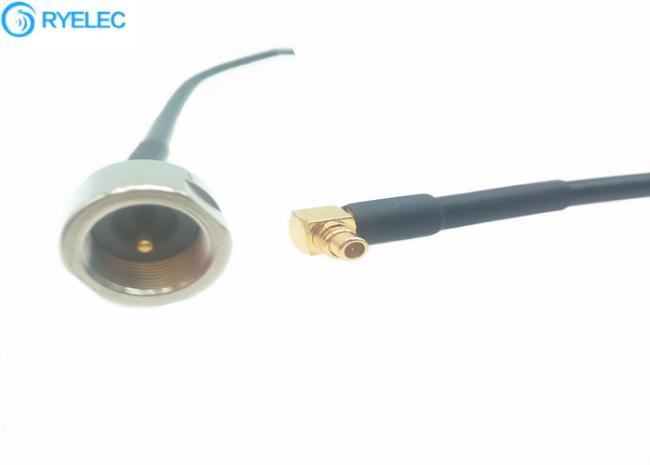

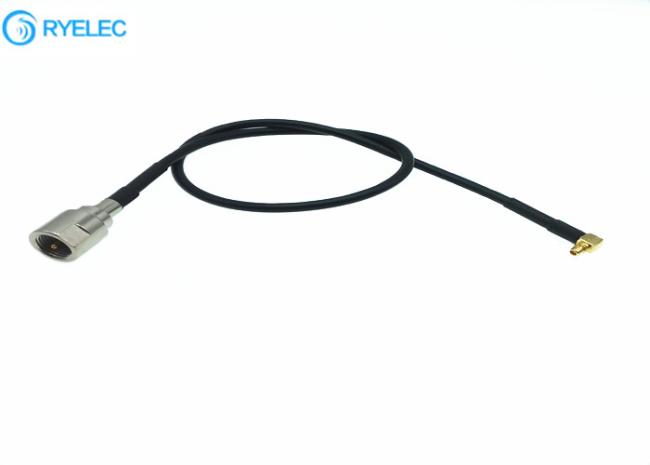

320mm RF Electrical Coaxial Aerial Cable , FME To MMCX Low Loss Cable Assembly
RF Electrical Wire Connector FME male to Mmcx male Right Angle Assembly Extension Coaxial Cable RG174 for Wireless
Specification:
| Electrical Performance | |
| Impedance | 50Ω |
| Frequency range | DC-1Ghz |
| VSWR | ≤1.2 |
| Voltage | 60V AC(rms) |
| Insulation Resisitance | 500 MΩ min. |
| Dielectric Withstanding Voltage | 100VAC(Cable Limited) |
| Insertion Loss | ≤1.55dB |
| Connector | FME to MMCX |
| Cable | RG174/RG316/RG142/RG58 etc |
| Bodies | Brass--gold plating |
| Pin contacts | Brass--gold plating |
| other metal parts | Gold Plated,Nickel Palted |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range | -40°C to +80°C |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can I get some samples?
3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
4. can I make OEM or ODM orders?
5.What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
