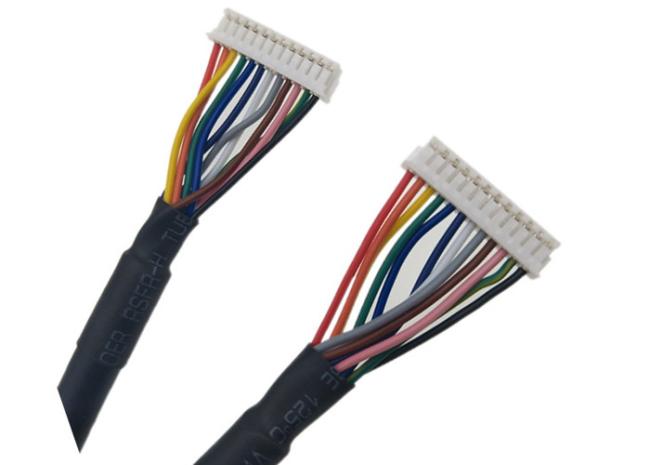

26 Awg Sheathed Insulation Jacket Flexible Pvc Cable Jst 12 Pin Zh 1.5mm Pitch With UL2464
Jst 12pin Zh 1.5mm Pitch With UL2464 26awg Sheathed Flexible Pvc Insulation Jacket Cable
Electrical Characteristics
| Series | ZH Series Pressure welding Bar Connector(1.5mm) |
| ROW | Single row |
| POLES | 2-15P |
| PITCH | 1.5mm |
| MATERIAL | PA66 & Brass Tin |
| COLOR | White |
| FEATURES | Fire-proof, Flame retardancy |
| RATED VOLTAGE | 250V AC,DC |
| RATED CURRENT | 1A |
| CONTACT RESISTANCE | 20mΩ MAX |
| INSULATION RESISTANCE | 500MΩ MIN |
| WITHSTAND VOLTAGE | 500V AC/min |
| WORKING TEMPERATURE | -25℃~85℃ |
| APPLICABLE WIRES | AWG#32~#22,2464 |
Wire Harness Applications:
1. Wire Harness for Display
2. Wire Harness for Advertising machine
3. Wire Harness for Monitoring
4. Wire Harness for Back projection
5. Wire Harness for Medical system/monitoring
6. Wire Harness for PC and Computer
7. Wire Harness for DVD

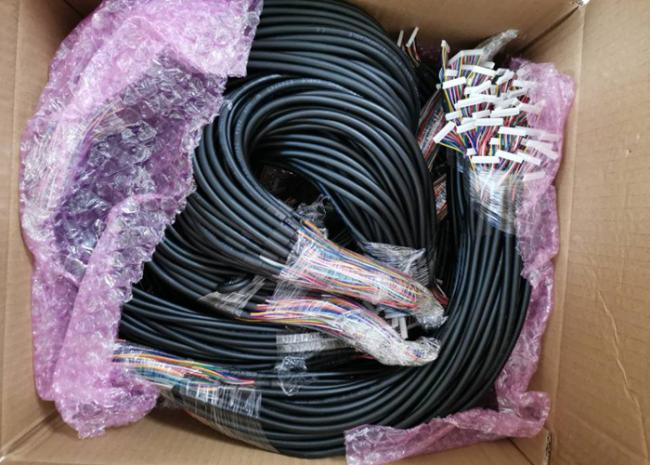

Product Details
Our Company
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
1. Manufacturing custom wiring.harness, rapid response, reliable quality,
environmental materials, RoHS compliant professional testing equipment,
excellent quality control,
2. We base on good faith.go toward to better service.
We are a team.we snugle tgether With esposilty and good training
3. Pertet atet sales sevie. trv our best 1o seve for you.
FAQ
1. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
2. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
3.Are you the factory?
Yes, we are the wire harness lvds cable assembly factory.
4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
