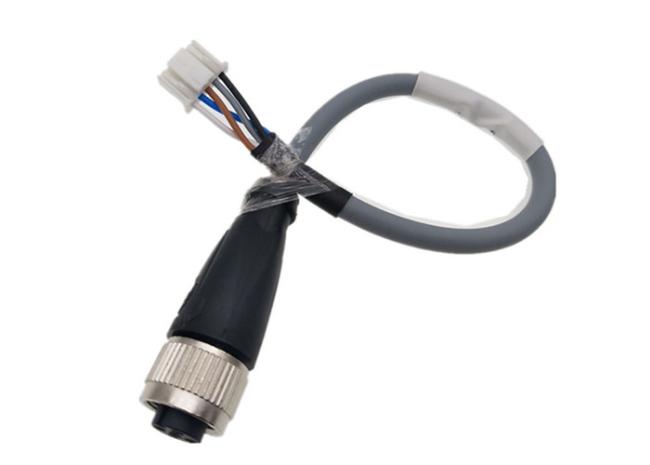

Jst PAP-05V-S 5pin Connector To Circular Waterproof 5pin M12 Female Plug Cable Wire Harness
Electrical Characteristics:
| Temperature Range: |
Solder,screw:-40℃/ +90℃ Screw damp, biatec:-25℃/+80℃ Moulded -25℃/+85℃ |
| Mechnical operation: |
>100 mating cycles
|
| Rated voltage: |
250V:3/4/5Pin, 60V:8Pin, 30V: 12Pin
|
| Rated current: |
4A:3/4/5Pin, 2A:8pin, 1.5A:12Pin
|
| Contact resistance: |
≤5mΩ
|
| Insulation resistance: |
≥100MΩ
|
| Protection degree: |
IP67
|
| Standard: |
IEC61076-2-101
|
|
Material:
|
|
| Contact plating |
Gold Planted, thickness 1U"
|
| Material of housing |
NYLON66 + GF
|
| Cable material |
PVC/PUR (cable length customized) Solder 0.25mm(AWG24) |
| Wire gauge |
Solder 0.25mm(AWG24) Screw 0.14mm-0.5mm(AWG26-20) Biatec 0.14mm-0.38mm(AWG26-22) |
| LED/Shielding |
With or without
|

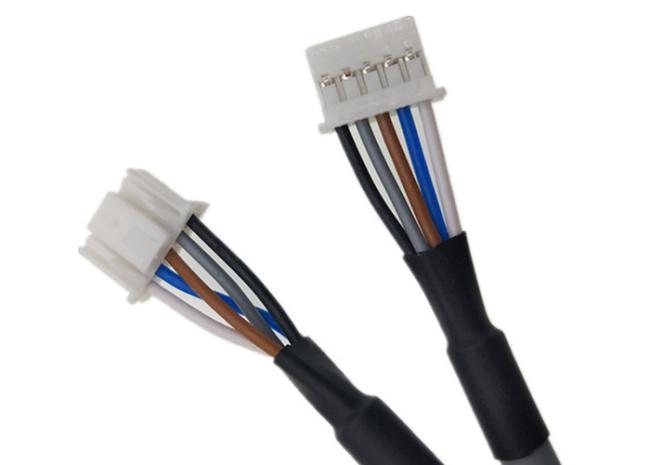

Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. OEM/ODM service.
5. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
4. What about the lead time for mass production?
Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. How long is your delivery time?
it is according to quantity.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
7. What is your terms of payment ?
We accept bank transfer, TT, Paypal & Western Union, or others methods.
