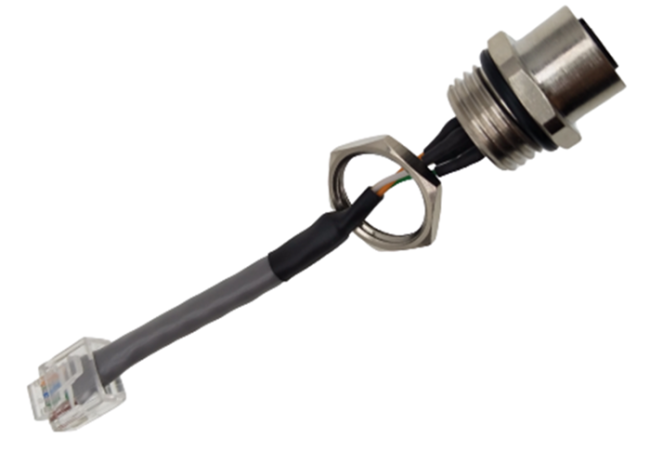

Custom M12 4 Pin Panel Mount Waterproof Female Connector To RJ45 Round Network Cable
Custom M12 4Pin Panel Mount Waterproof Female Connector To RJ45 Round Network Cable
Electrical Characteristics:
| Specification | |
| Cable Spec | UL2464 2725 24/26/28AWG |
| Cable Length | 6ft, 10ft, 15ft, 25ft, 50ft, 75ft, 100ft (Custom Length available) |
| Color | Black, Beige ,Blue(Custom Color available) |
| Diameter | OD:4.0mm or your request |
| Wire Gauge | 30AWG,28AWG,26AWG or your option |
| Conductor | bare copper(BC),Tin plated copper(TC)(optional) |
| Certificate | RoHS,UL,CE,FCC |
| Plug mould | PVC molding, plastic shell , metal shell |
| Connector | nickel-palted or gold-plated |
| Electrical Properties | |
| Quality Control | 100% open & short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M min |
| Contact Resistance | 2 ohm max |
| Working Temperature | -25C-80C |
| Data transfer rate | 10.2Gbps Max |
| Differential Impedance | 100±10Ω(TDR) |
| Noted: | Customer's specification is welcomed. |

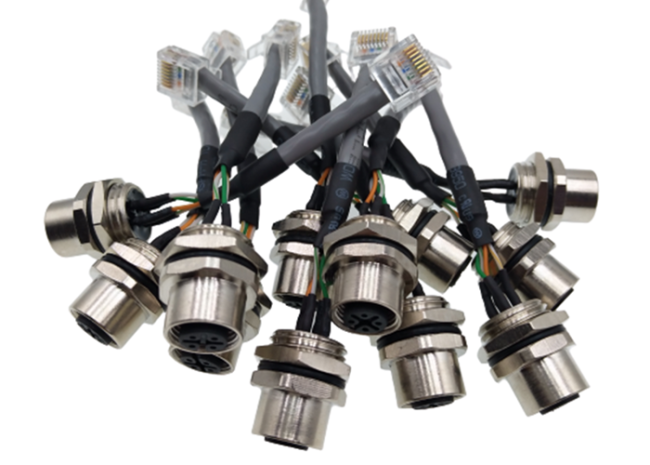

Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Application:
Our Services:
1. Inspection: 100% tested before delivery.
2. Processing: Making wire harness processing.
3. Samples: Making samples for you per your requirements.
4. After-sales service: Offering our best solutions if any questions about us.
5. Inquiry Response: Response with 24 hours.

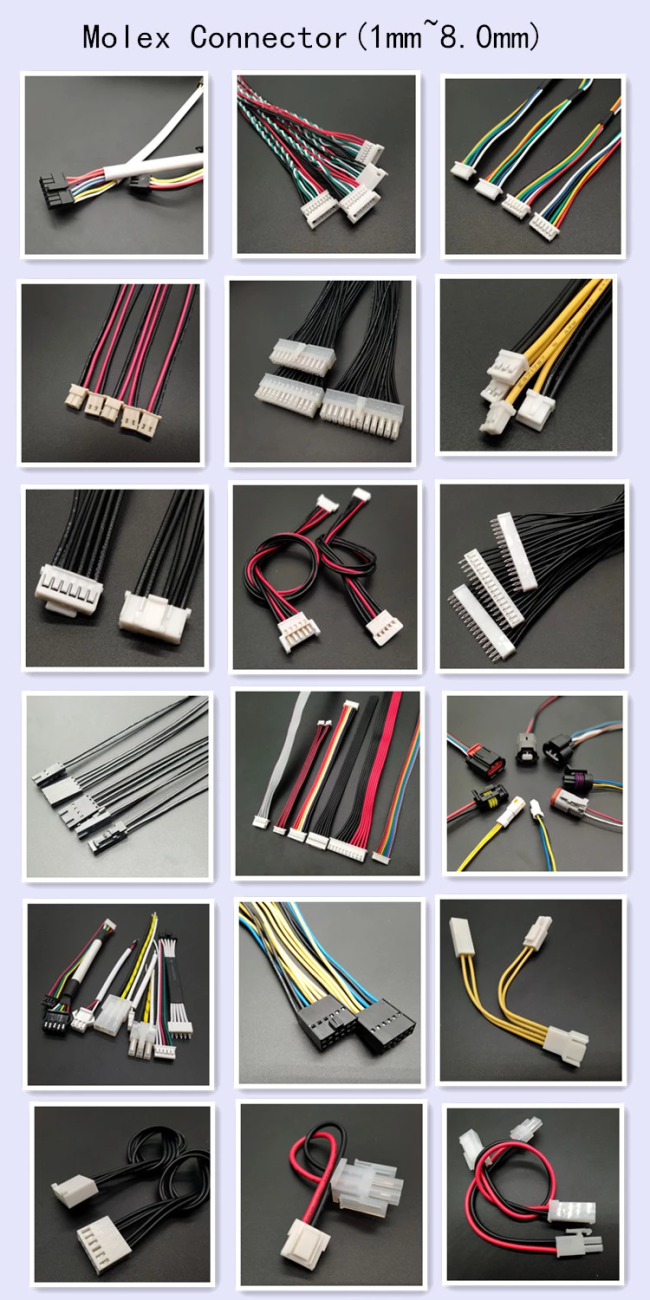

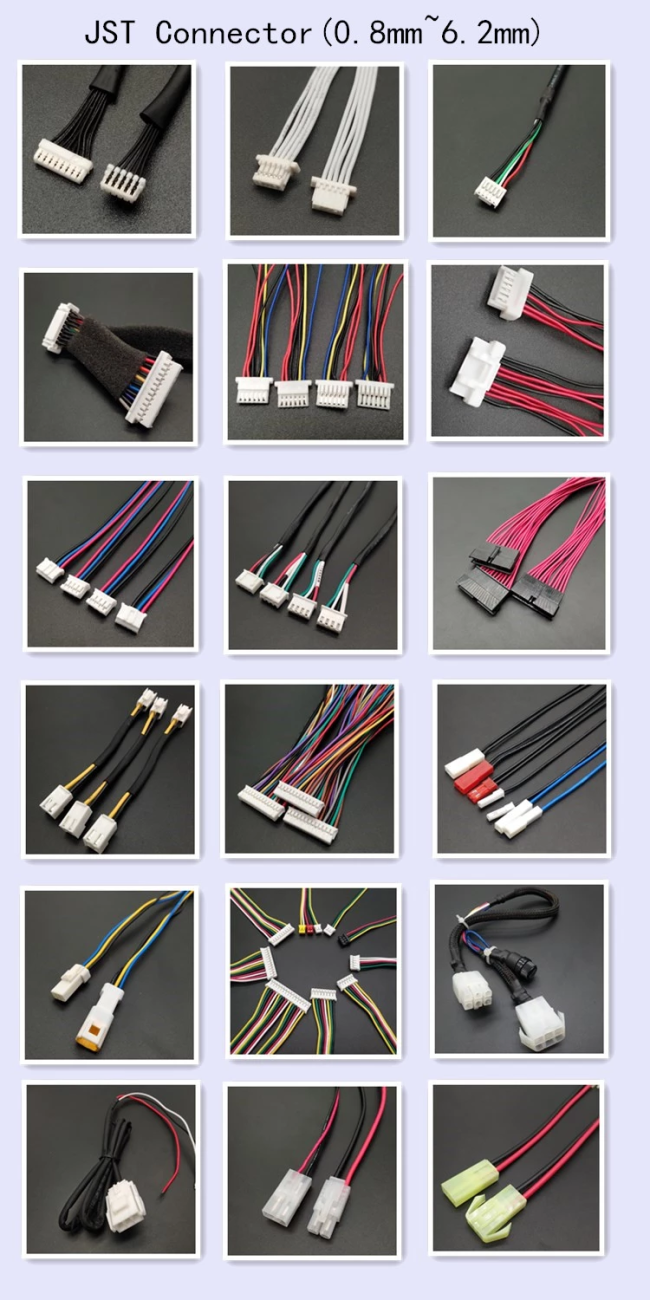

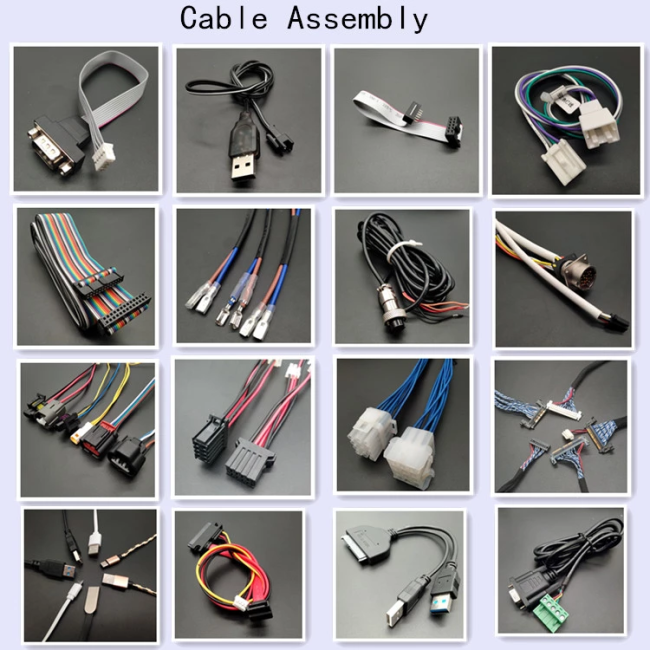

Related Products:
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3. What is the Minimum Order Quantity(M0Q) ?
Normally,MOQ is 50pcs,but special requirements can be accepted.
4. What is the delivery time?(How long do you need me to prepare my goods?)
1-5 days for sample orders,10-21days for mass
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
6. How will you deliver goods to me?
A4: We ship by air and sea generally.In the mean time,we cooperate with intermational expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
If you still have many questions or do not know how to place the order ,please kindly contact our saleman . They provode the online service .
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
