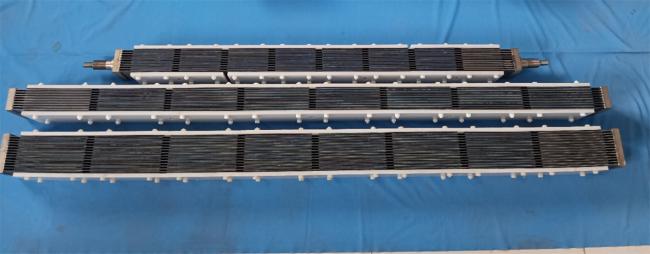

MMO Coating Titanium Anode Electrolytic Cell For Sodium Hypochlorite Production
MMO coating Titanium anode Electrolytic cell for sodium hypochlorite production
Introduction:
Titanium anode (MOx anode) is made of ruthenium, iridium, tantalum, rhodium, palladium and other precious metal salts coated on a titanium substrate and then sintered at high temperature.
1.The size of the titanium anode is stable, and the distance between the electrodes does not change during the electrolysis process, which can ensure that the electrolysis operation is performed under the condition of stable voltage.
2. The working voltage of the titanium anode is low, so the power consumption is small, which can save the power consumption, and the DC power consumption can be reduced by 10%-20%.
3. Titanium anode has a long working life, the life time can be customized from 3 years to 10years
Model:
| EC-100 | EC-200 | EC-300 | EC-500 | EC-800 | |
| Capacity | 100g/h | 200g/h | 300g/h | 500g/h | 800g/h |
| Brine concentration | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% |
| Input current | 30~40A | 60~80A | 90~110A | 90~130A | 120~160A |
| Input voltage | 14~16V | 14~16V | 14~16V | 21~24V | 28~32V |
| NaClO concentration | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm |
| NaClO output flow | 12.5~20L/h | 25~40L/h | 37.5~60L/h | 62.5~100L/h | 100~160L/h |
Manufacturing processes:
1)Pretreatment:choosing right material, cutting ,welding accordingly , annealing ,cleansing ,acid etching
2) Preparing noble metal: be made up in proportion of mol according to customer's application
3) Brush painting :coated by 12 to15 times
4) thermal decomposition of oxidation
