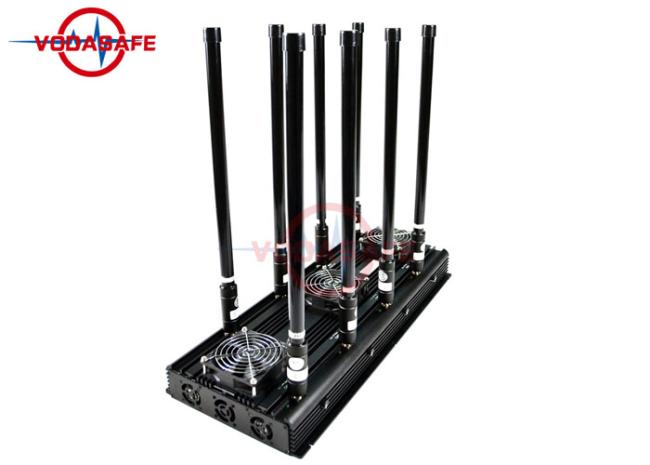

Vehicle Mobile Phone Signal Jammer Portable With 150 Watt Eight Antennas
Vehicle Using Mobile Phone Signal Scrambler With 150W Eight Antennas Signal Blocking
5dBi external omni-directional antennas mobile phone signal scrambler with human safe design, powerful cooling system with inner fans and hot-emitting shell support its working 24H/7D, it could effectively block 2G3G4G5GWifiRemote Control Signals. 150W total output power could block up to 150m jamming range.
Features:
- High power professional jammer model
- Portable and fixed
- Friendly use and maintenance
- 24/7hours working, Could continue to work
- powerful cell phone Wi-Fi ,Walkie-talkie jammers
Applicable place:
Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited, factory, bank, train, car, busetc.
Specification:
| Total Outputpower | 150W |
| Cover Radius | 50-150m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| Jamming type | Sweep Jamming |
| Antenna Type | 5dBi external omni-directional |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) |
| Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
| Operating Temp | -20 to +50℃ |
| Storage Temp | -40 to +60℃ |
| Humidity | 5%-80% |
| Dimension(LXWXH) | 600 x 350x 95mm not include antennas |
| Weight | 15kg |
Notices:
1.Before linking all the antennas, power supply shall not be switched on at first. Non taking off antenna when the mainframe is in the working condition.
2.The jammer shall be installed in the position with good ventilation. And large-scale things shall be avoided to ensure to the shielding effect.
3.When use the jammer outdoors, preventing water shall be taken into consideration.
4.Antenna shall be used Vertical to the ground.
5.If you used in car, please make sure the car output adapter is DC27V, this device only can be working on DC24-27V, the minimum output power of storage battery is 350Watt.
Order information:
Model:X8ProA CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie
America Type frequency for United States, Canada, Mexico ,S. America.
1. GSM850MHz:850-894MHz;25W; (CDMA/GSM)
2. GSM1900MHz:1920-1990MHz;20W;(2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz;25W;
4. 3G2100MHz:2100-2170MHz;20W;(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz; 20W
6.4GWiMAX/4GLTE2600MHz:2500-2700MHz;20W
7. VHF Radio:135-175MHz;10W
8. UHF Radio:400-470MHz;10W
Total Output Power:150W
Model:X8ProA CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie
Europe Type frequency for used Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz; 25W;
2.GSM1800MHz:1805-1880MHz; 20W;
3. 4GLTE700MHz:790-821MHz; 25W;
4. 3G2100MHz:2100-2170MHz;20W; (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz;20W
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz;20W
7. VHF Radio:135-175MHz;10W;
8. UHF Radio:400-470MHz;10W;
Total Output Power:150W
