Indexable Dovetail Hss End Mill Weldon Shank High Material Removal Rate
Price:
Reasonble price accorinding to your order quantity and quality inquiry
MOQ:
Not Limited
Delivery Time:
7-35 days after order confirmation
Brand:
M&G Productions P.R.China
Product Description

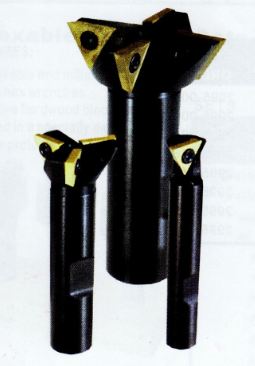

15° 65° Dovetall Mills
♦ Weldon Shank.
♦ High rate of material removal.
♦ No regrinding needed.
♦ Torx screw locking system.
Tool Angle
♦ Cutting rake 15°
♦ Axial rake 10°
♦ Redial rake 14°
| 60° Dovetall End Mill | ||||||
| CUTTING | ||||||
| D | d | F | H | C | No.Of Inserts |
Inserts used |
| 1/2 | 3/8 | .325 | .142 | 2.390 | 1 | TDGW21.5 |
| 3/4 | 3/8 | .325 | .282 | 2.390 | 2 | TDGW21.5 |
| 1 | 1/2 | .325 | .375 | 2.375 | 3 | TDGW21.5 |
| 1-3/8 | 5/8 | .510 | .550 | 2.862 | 3 | TDGW32 |
| 1-7/8 | 7/8 | .510 | .550 | 3 | 3 | TDGW32 |
| 2-1/4 | 1 | .700 | .750 | 3.500 | 3 | TDGW43 |
| 2-1/2 | 1 | .700 | .750 | 3.500 | 3 | TDGW43 |
| 15° Dovetall End Mill | ||||||
| CUTTING | ||||||
| D | d | F | H | C | No.Of Inserts |
Inserts used |
| 1/2 | 3/8 | .359 | .420 | 2.42 | 1 | TDGW21.5 |
| 1 | 1/2 | .359 | .420 | 2.42 | 3 | TDGW21.5 |
| 1-7/8 | 7/8 | .550 | .750 | 3.20 | 3 | TDGW32 |
| 2-1/2 | 1 | .750 | 1.00 | 3.75 | 3 | TDGW43 |
| CARBIDE INSERTS | |
| Insert# | Insert I.C. Thick |
| TDGW21.51 | 1/4x3/32 |
| TDGW21.52 | 1/4x3/32 |
| TDGW321 | 3/8x1/8 |
| TDGW322 | 3/8x1/8 |
| TDGW341 | 1/2x3/16 |
| TDGW342 | 1/2x3/16 |
3PCS Set Includes:
1/2" , 3/4" and 1" Diameters.
Wooden case.
