0 - 60° Precision Angle Block Machine Tool Accessories
Price:
Reasonble price accorinding to your order quantity and quality inquiry
MOQ:
Not Limited
Delivery Time:
8-35 days
Brand:
M&G Productions P.R.China
Product Description

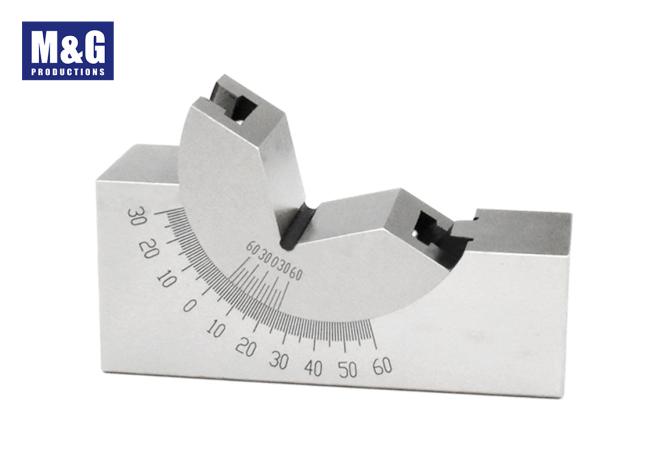

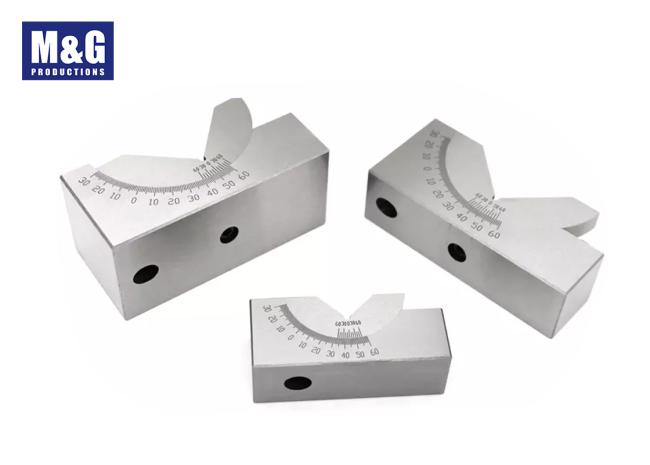

0 - 60° Precision Angle Block Machine Tool Accessories
Made of SK2 steel, which delivers long life expectancy, high wear resistance.
Uses: used for the milling machine, planer, grinder, and drilling machine ,to carry on workpiece processing, such as making an oblique plane, drilling a slant hole. it can be used with other workpiece clamps too.
Features
- 0 - 60° adjustable angle by locking the Hex. Screw on the bottom
- Angle accuracy 10'
- Squareness .0002"
- Hardness HRC50-55
- Size 1" x 1 1/4" x 3" & 1-3/16" x 1-3/4"x 4"
Specification
| Model | Length | Width | Height | height | Weigth |
| W25 | 75 | 25 | 36 | 25 | 0.5kg |
| W30 | 102 | 30 | 49 | 30 | 0.9kg |
| W46 | 102 | 46 | 49 | 30 | 1.5kg |
