Carbode steel , High Speed Steel , Carbide Tip Wood Auger Drill Bit with Quick Change Hex shank
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
30 Days
Brand:
M&G
Product Description

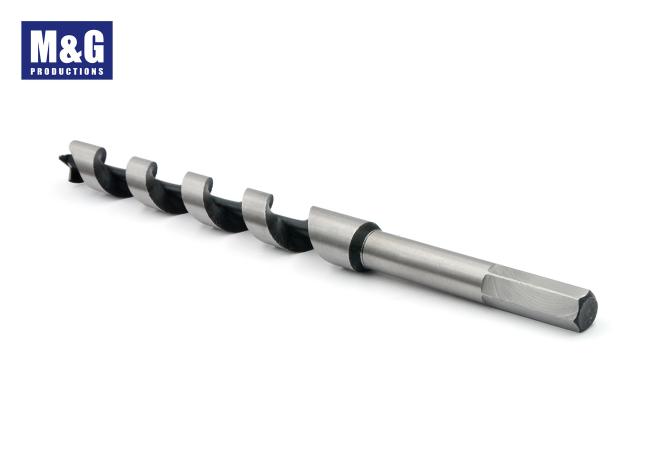

Woodworking Tools Hex Wood Auger Drill Bit Manufacturers for Deep Boring
Features:
- Precision ground back tapered flute prevents drill from jamming in holes and provides easy tool removal
- Thin body core with deep flutes allows greater removal of wood chips
- The ‘In Flute’ is steam tempered to provide a smooth finish which allows rapid removal of wood chips and faster drilling
- Precision machined ‘spur’ scores the outline of the hole into the wood, helping the bit to stay true and produce clean holes with minimal break through
- Screw tip pulls the auger through the wood for added ease of use and minimal user effort
Size:
|
Diameter |
Overall |
Working |
|
6 |
235 |
160 |
|
8 |
235 |
160 |
|
10 |
235 |
160 |
|
10 |
450 |
380 |
|
12 |
235 |
160 |
|
12 |
450 |
380 |
|
13 |
235 |
160 |
|
16 |
235 |
160 |
|
16 |
450 |
380 |
|
18 |
235 |
160 |
|
20 |
235 |
160 |
|
20 |
450 |
380 |
|
22 |
235 |
160 |
|
22 |
450 |
380 |
|
25 |
235 |
160 |
|
25 |
450 |
380 |
|
32 |
235 |
160 |
Other size can be available accorfing to request.
Operation Speed Chart:
| Diameter (mm) | Softwood RPM | Hardwood RPM |
| 6-10 | 2000 | 1500 |
| 11-15 | 1500 | 1250 |
| 16 - 20 | 1250 | 1000 |
| 21 - 25 | 1000 | 750 |
| 26 - 32 | 750 | 50 |
