JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability
JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability
1.Product Introduction:
Voltage transformer with fully enclosed cast insulation structure, the primary and secondary windings and toroidal core all encapsulated in epoxy casting body, using elbow-type plug to increase the outer insulation creepage distance and resistance contamination and moisture performance. It is used indoor for measuring voltage, electric energy and protective relaying in three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12M
The primary cone accords with IEEE 386-2006 figure 7.
Technical Data
1. Installation site: Indoor
2. Rated frequency: 50/60Hz
3. Load power factor: coscD=0.8 (lagging)
4. Technical standard accords with: IEC 60044-2
IEC 61869-1 &3
Specification:
| Item | Specification | Unit | Data |
| 1 | Um | kV | 12 |
| 2 | Rated Insulation Level | kV | 12/28/75 |
| Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) | Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
| JSZW 12-12R | 11/√3 |
0.11/√3/0.11/3 |
0.2/6P | 25 | 1200 | 12/28/75 |
| 0.5/6P | 50 | |||||
| 1/6P | 80 | |||||
|
0.11√3/0.11√3/0.11/3
|
0.2/0.2/6P | 10/10 | ||||
| 0.2/0.5/6P | 30/45/100 | |||||
| 0.5/0.5/6P | ||||||
| 90/90/100 | 900/900 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

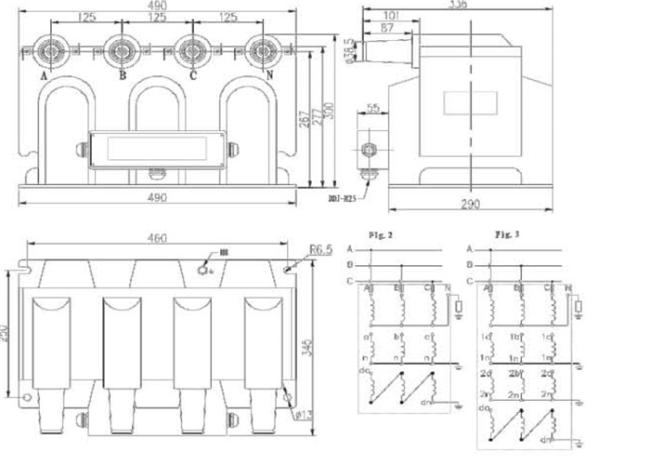

Outline drawing
