MV Voltage Transformer Outdoor JLDZXW1-17.5F 50Hz or 60Hz Cast-resin insulated
1. Introduction:
The transformer is casted together by 1 CT and 1 PT with small size, it saves room. It can be
used outdoor, Its highest voltage for equipment can be 17.5kV.
2. Specification:
| Rated primary Voltage(kV) |
Rated secondary Voltage(kV) |
Accuracy classes | Rated output(VA) | Rated current ratio (A) |
Accuracy class |
Rated output |
Rated Insulation level (kV) |
|
10/√3 11/√3 12.47/√3 13.8/√3 15/√3
|
100/√3 110/√3 120/√3 100 110 120 |
0.2 0.5 1 |
10 30 50 |
5-10/5 |
0.2S 0.2 0.5S 0.5 1 |
10 12.5 15 |
12/28/75 12/42/75 17.5/38/95 17.5/38/110 15/34/110 |
| 10-20/5 | |||||||
| 15-30/5 | |||||||
| …. | |||||||
| 200-400 | |||||||
| 300-600 | |||||||
| 400-800 | |||||||
| 500-1000 | |||||||
| 600-1200 |
3. Technical Data:
3.1.Installation site outdoor
3.2.Rated Frequency 50/60Hz
3.3.Burden power factor Cos $ =0.8 ( lagging )
3.4.Technical standard accords with IEC 60044-1 & 2
IEC 61869-1 & 2 & 3
3.2.Rated Frequency 50/60Hz
3.3.Burden power factor Cos $ =0.8 ( lagging )
3.4.Technical standard accords with IEC 60044-1 & 2
IEC 61869-1 & 2 & 3

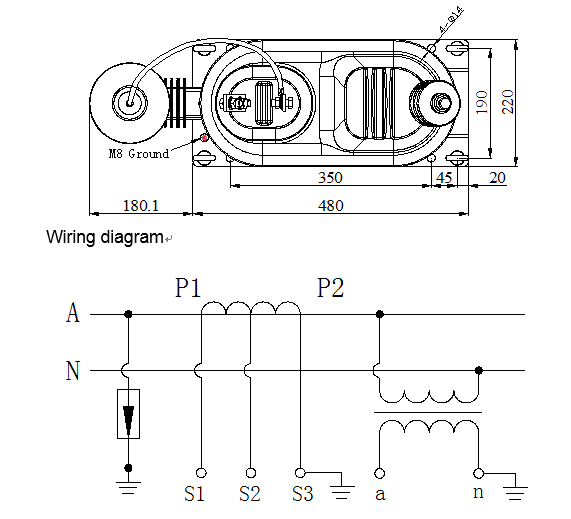

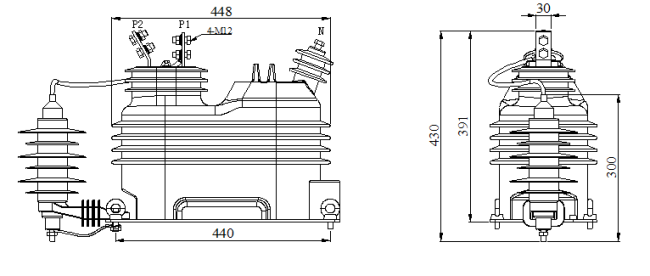

Outline drawing:
