17.5kv Outdoor Three-Phrase Epoxy Resin Type
17.5kv Outdoor Single-Phrase Epoxy Resin Type
1.Product Introduction:
This three phase, six compositions combined CT&VT, consists of three semi-insulation VTs of Y-Y wiring and three CTs series connected with phase A,B,C. Secondary leads in junction box is easy for wiring and testing. use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for metering/measuring in power system.
2.Technical Data:
1 Installation site: Outdoor
2 Rated Frequency: 50/60hz
3 Burden Power Factor : cosθ=0.8(lagging)
4 Technical Standard Accords with IEC60044-2 IEC61869-1&3
3.Specificaton
| Model | Rated Primary Voltage (kV) | Rated Secondary Voltage (kV) | Accuracy Class | Rated Output(VA) |
Limited Output (VA) |
Rated insulation level (VA) |
|
|
JSZXW18 -12 |
12.47/√3 10/√3 |
0.12 0.1 0.1/√3 |
0.2 0.5 |
25 50 |
1000VA |
12/42/75 GB 17.5/38/75 IEC |
|

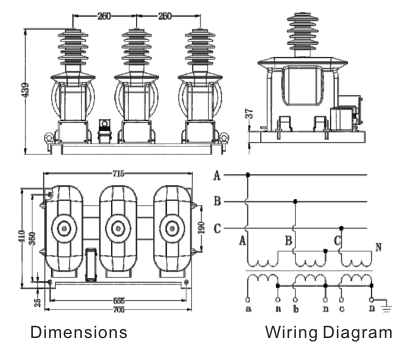

4.Outline Drawing
5.Photos
