China JDZ10-12,JDZ10-12V,JDZF10-12 Single-Phase Epoxy Resin Type MV VOLTAGE TRANSFORMER for sale

JDZ10-12,JDZ10-12V,JDZF10-12 Single-Phase Epoxy Resin Type MV VOLTAGE TRANSFORMER

Price Negotiable
Price: negotiable
MOQ: 1set
Delivery Time: Negotiable
Brand: Chuangyin
Product Description

JDZ10-12,JDZ10-12V,JDZF10-12 VOLTAGE TRANSFORMER





Description:



Epoxy resin casting and fully enclosed construction, is used indoor for measuring , electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2 /12kV. Be suitable for three phase V connection.



Technical Data

1,Installation site: indoor

2,Rated frequency: 50/60Hz

3,Load power factor: cosΦ=0.8 (lagging)

4,Technical standard accords with IEC 60044-2 (IEC 61869-1&3)




Specification



Type

Rated primary

Voltage

(kV)

Rated secondary

Voltage

(kV)

Accuracy classes

combination

 Rated output (VA)

Thermal limiting

Output

(VA)

Rated

Insulation level

(kV)

JDZ10-12(V)

JDZF10-12V



 11 0.11 0.2 15 400 12/28/75
0.5 50
1 80
0.11/0.11 0.2/0.2 10/10 200/200
0.2/0.5 15/30
0.11/0.22 0.2/6P 15/500 500
0.5/6P 30/500

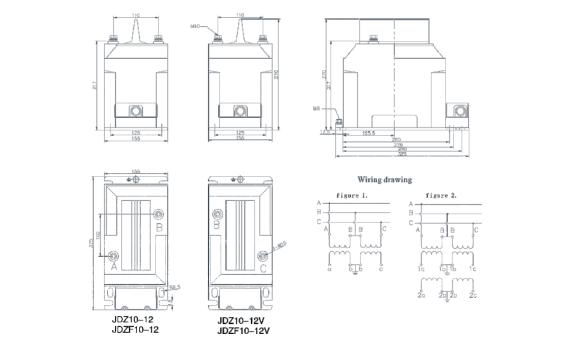

Outline
