China LPVT MV Voltage Transformer Indoor / Outdoor With Standard IEC60044-7 for sale

LPVT MV Voltage Transformer Indoor / Outdoor With Standard IEC60044-7

Price Negotiable
Price: Negetiable
MOQ: 1set
Delivery Time: Negotiable
Brand: Chuangyin
Product Description

Electric voltage transformer/voltage Sensor/LPVT



1Product introduction



The products accord with standard IEC60044-7 , GB/T20840.7-2007, and can meet customer' s other special requirement. The products use resistive partial-pressure method to test voltage, mainly be used in the ≤ 20kV switchgear, compatible with electric instrument, digital measure and protective equipment, able to conduct multifunction such as measure, control, protection and data transmission etc simultaneity.











2. Technical Data:



1. Rated primary voltage : 22/V3kV

2. Rated secondary voltage : 2A/3V, 3.25/>/3V or 6.5/V3V

3. Rated burden > 1MQ

4. Rated digital output: 0x2D41 (measuring), 0*01 CF(protection)

5. Accuracy for measure winding : 0.2

6. Protective accuracy winding : 3P

7. Rated frequency : 50Hz

8. Rated insulation level: 24/65/125 Kv

9. Ambient temperature : -5℃ -40℃ (indoor),﹣25 ℃ -50℃ outdoor)

10. Ambient humidity : ≤95%(25℃))

11.Altitude : ≤2000m( Can devise according customer* s requirement)

12.Installation site : Indoor/outdoor

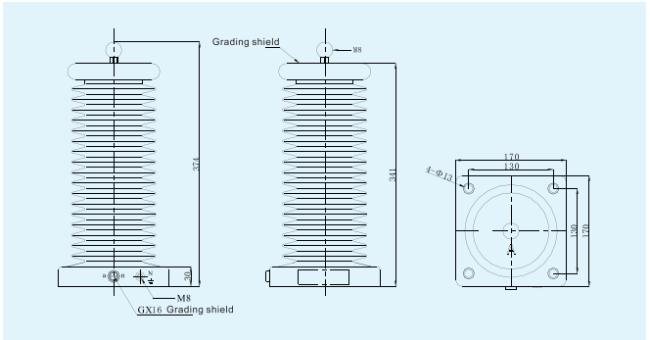

3. Outline Drawing:
