Epoxy Resin MV Voltage Transformer 12 Kv For Measuring Current JDZ10-6.6/12R
MV Voltage Transformer JDZ10-6.6/12R Voltage Transformer 12Kv Indoor Single-Phanse Epoxy Resin Type
JDZ10-6.6/12R voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2 /12kV, Be suitable for three phase V connnection matching “RV”.
| Type |
Rated primary Voltage (kV) |
Rated secondary Voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting Output (VA) |
Rated Insulation level (kV) |
|
JDZ10-3R(V) JDZ10-6R(V) JDZ10-12R(V) |
6.6 11 |
0.1 0.11 |
0.2 | 25 | 400 |
7.2/20/60 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
|
JDZF10-3R(V) JDZF10-6R(V) JDZF10-12R(V) |
0.1/0.1 0.11/0.11 |
0.2/0.2 | 15/15 | 250 | ||
| 0.2/0.5 | 15/25 | |||||
|
0.1/0.22 0.11/0.22 |
0.2/6P(3P) | 15/400 | 500 | |||
| 0.5/6P(3P) | 25/400 |

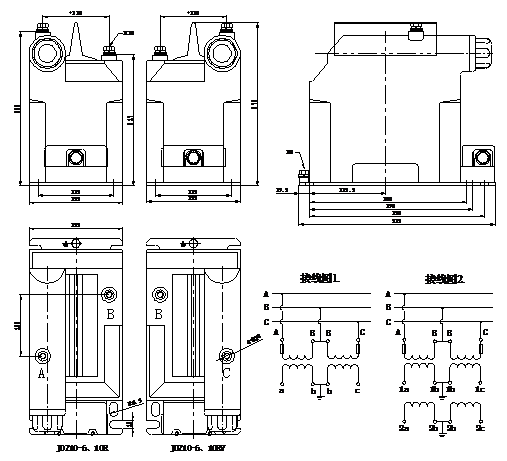

Outline drawing
