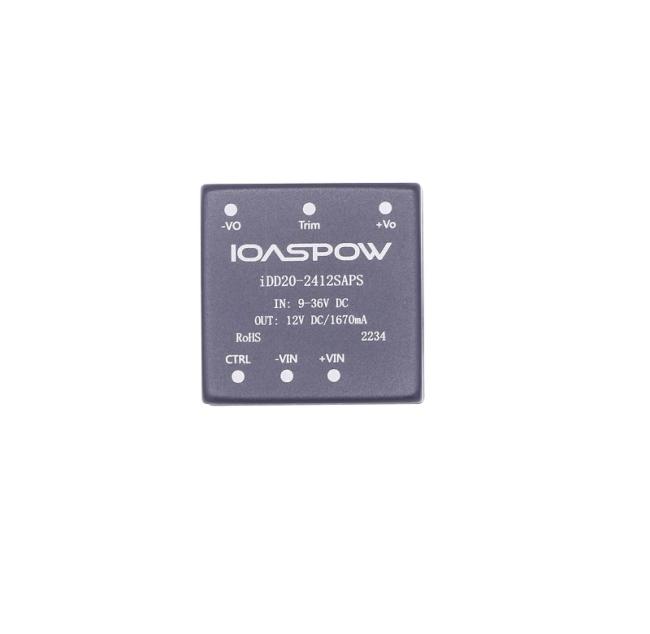

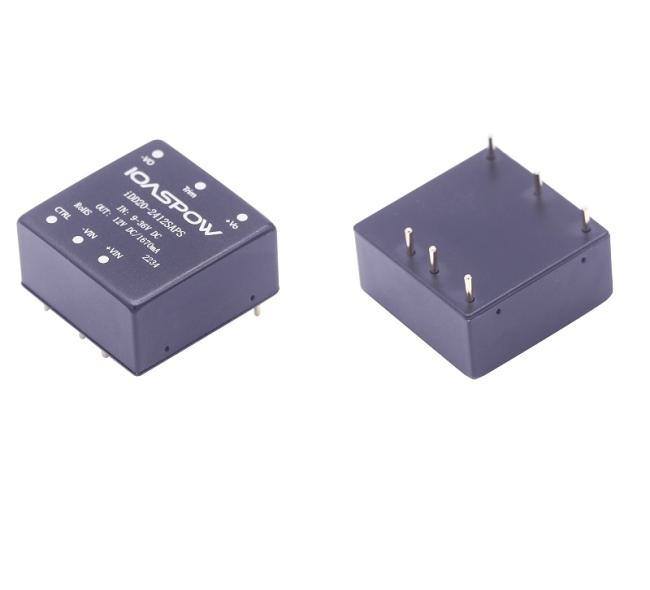

IOASPOW DC DC Isolation Converter 20W DC input9 36VOr 18 75V output 3.3V 5V 12V 15V iDD20 XXYYSAPS
Price:
USD 11 PCS
MOQ:
100PCS
Delivery Time:
Negotiable
Brand:
IOASPOW
Product Description
◆Dimensions(MM):L25.4×W25.4×H16.6
◆Input voltage:+9V/DC - 36V/DC OR +18V/DC - 75V/DC 4:1 wide input voltage range
◆Output Power:20W
◆Overall efficiency:>=88%
◆Operating temperature:-40℃～85℃
◆Storage temperature:-55℃～125℃
◆Cooling method:Natural cooling
Output characteristics:
| MODEL | Input voltage range(VDC) | 0utput | Ripple | Efficiency(%) | ||||
| standard | range | Voltage | current(mA)MAX/Min | mVp-p | Min | Typ | ||
| Typ | Max | |||||||
| iDD20-243R3SAPS | 24 | 9-36 | 3.3 | 5000/0 | 50 | 100 | 86 | 88 |
| iDD20-2405SAPS | 24 | 9-36 | 5 | 4000/0 | 50 | 100 | 88 | 90 |
| iDD20-2412SAPS | 24 | 9-36 | 12 | 1670/0 | 50 | 100 | 88 | 90 |
| iDD20-2415SAPS | 24 | 9-36 | 15 | 1333/0 | 50 | 100 | 88 | 90 |
| iDD20-2424SAPS | 24 | 9-36 | 24 | 833/0 | 50 | 100 | 88 | 90 |
| iDD20-363R3SAPS | 48 | 18-75 | 3.3 | 5000/0 | 50 | 100 | 86 | 88 |
| iDD20-3605SAPS | 48 | 18-75 | 5 | 4000/0 | 50 | 100 | 88 | 90 |
| iDD20-3612SAPS | 48 | 18-75 | 12 | 1670/0 | 50 | 100 | 88 | 90 |
| iDD20-3615SAPS | 48 | 18-75 | 15 | 1333/0 | 50 | 100 | 88 | 90 |
