1.6 - 2.5mm 4A Molecular Sieve Desiccant For High Voltage Electric Equipment Switchgear
1.6 - 2.5mm 4A Molecular Sieve Adsorbent For High Voltage Electric Equipment Switchgear

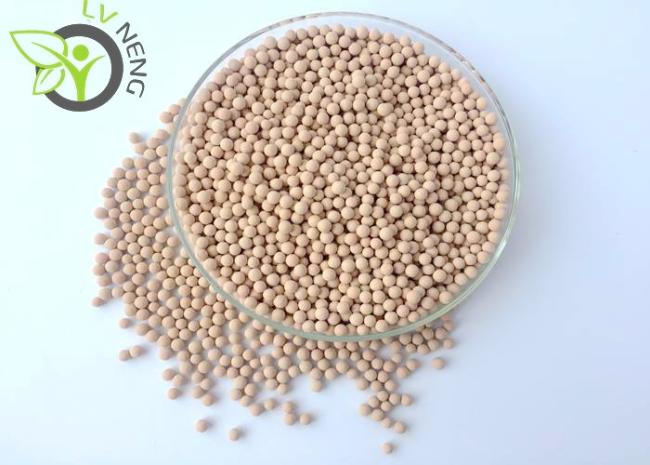

Product Description of Molecular Sieve Adsorbent
Due to its high chemical stability and excellent insulation performance, SF6 has been widely used internationally as an insulating medium for various electrical equipment in the 1980s. However, SF6 inevitably contains trace amounts of low fluoride sulfides during its manufacturing and use, such as SOF2, SO2F2, S2F10O, etc. These gases are highly toxic and corrosive, posing a threat to equipment operation. KDHF-03 can adsorb trace amounts of low fluoride sulfides, acidic substances, and moisture in SF6 gas. According to relevant authorities, our products have surpassed similar Japanese products in terms of the speed and depth of impurity removal.
(GIS) Gas insulated metal enclosed switchgear is widely used.
Zeolitic Molecular Sieves are adsorbents with well defined pore sizes and limits to adsorption selectivity. Adsorption is a surface phenomenon whereby a molecule, contained in a fluid (gas or liquid), attaches itself on the surface of a solid. Adsorbents possess high porosity with internal surface area in the order of several hundred m²/gr.
Polar & polarizable molecules & non-saturated hydrocarbons are preferably adsorbed as a result of the existence & accessibility of freely moving cations that act as adsorption sites within the zeolite framework. Make it possible to separate substances with different molecular diameters.
Technical Specification of Molecular Sieve Adsorbent
| Model | 4A | |
| Diameter (mm) | Φ2-3 | φ4-6 |
| Loss on Ignition (wt%.575℃, 1hr) | ≤ 1.0 | ≤ 1.0 |
| Bulk density (g/ml) | ≥ 0.7 | ≥ 0.68 |
| Crushing strength (N) | ≥ 60/particle | ≥ 120/particle |
| Static H2O capacity (wt%) | ≥ 23 | ≥ 23 |
| Attrition rate (wt%) | ≤ 0.3 | ≤ 0.3 |
| Particle qualification (%) | ≥ 98 | ≥ 98 |
| Package moisture content (%) | ≤ 1.0 | ≤ 1.0 |
| Decomposer | Equilibrium Adsorption(ml/g) |
| S2F10O | ≥0.76 |
| SO2 | ≥10.8 |
| SOF2 | ≥6.7 |
Application of Molecular Sieve Adsorbent
1100kV Gas insulated Metal Enclosed Switchgear (GIS)
SF6 Generator Circuit Breaker complete set (GCB)
Rigid gas insulated transmission line (GIL)
etc.
Package of Molecular Sieve Adsorbent
Factory View of Molecular Sieve Adsorbent
Attention of Molecular Sieve Adsorbent
- The product cannot be exposed in the open air & should be stored in dry condition with air-proof bag.
- It should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
FAQ of Molecular Sieve Adsorbent
Q: Could we send a free sample for reference?
A: Yes, of course.
Q: What about the price and MOQ?
A: We promise a competitive price with top quality, & accept both mass and small quantity order.
Q: What is the lead time?
A: Within 15 days after received payment.
Q: Payment term?
A: 100% TT in advance. or 30% TT deposit & balance before shipment.
Q: How to solve problems after sales?
A: Take photos of the problems. After confirmed, we will make a satisfying solution for you within 3 days.
For more information please contact us. It's our pleasure to serve you.
