RGB synchronous control 12V 17W IP68 PAR56 316L stainless steel above ground swimming pool
RGB synchronous control 12V 17W IP68 PAR56 316L stainless steel above ground swimming pool
1. Various wattages, 12W-70W for optional.
2. Anti-UV transparent PC cover, won't turn yellow within 2 years.
3. 316L stainless steel material shell, strong corrosion resistance.
4. Swimming pool lamp are IP68 structural waterproof, not resin filled.
5. All products succeeded in 10m deep water testing before delivery.
6. The same dimension as the traditional PAR56 bulb, can completely match the various niches in the market.
Specification
| HG-P56-18W-C-RGB-T/HG-P56-18W-C-RGB-K | ||||||||
| Lamp paramater | Material | SS316L + Anti-UV PC cover | ||||||
| Light dimension | Φ177×102mm | |||||||
| Input voltage | AC12V | |||||||
| Wattage | 17W±10％ | |||||||
| Light lumen | 520LM±10％ | |||||||
| Beam angle | 120° | |||||||
| BASE | two screws terminal | |||||||
| CCT | RGB | |||||||

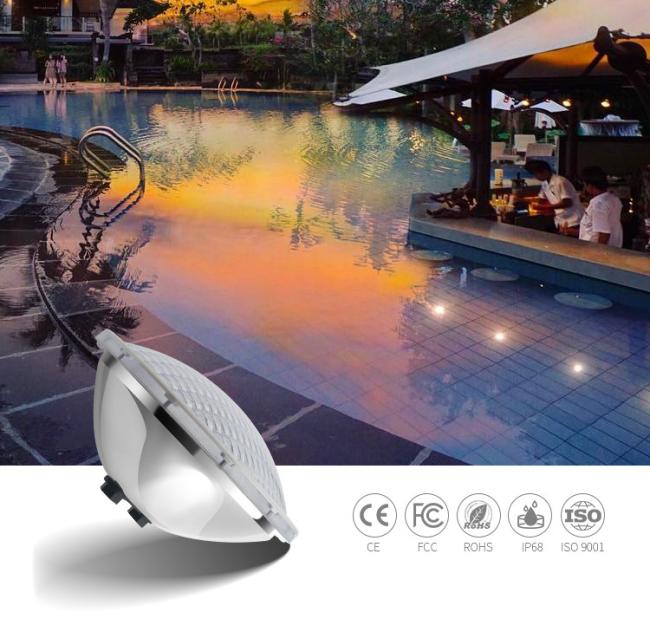

| Specifics | Certificate | CE, ROHS,FCC, IP68,VDE | ||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC12-15V coil transformer | ||||||
| Wattage | 1.5W | |||||||
| cable | 2 wires | |||||||
| Control way | Synchronous control effect | |||||||
| Test position | LED PAR56 swimming pool lights (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 69 | 72 | ||||||

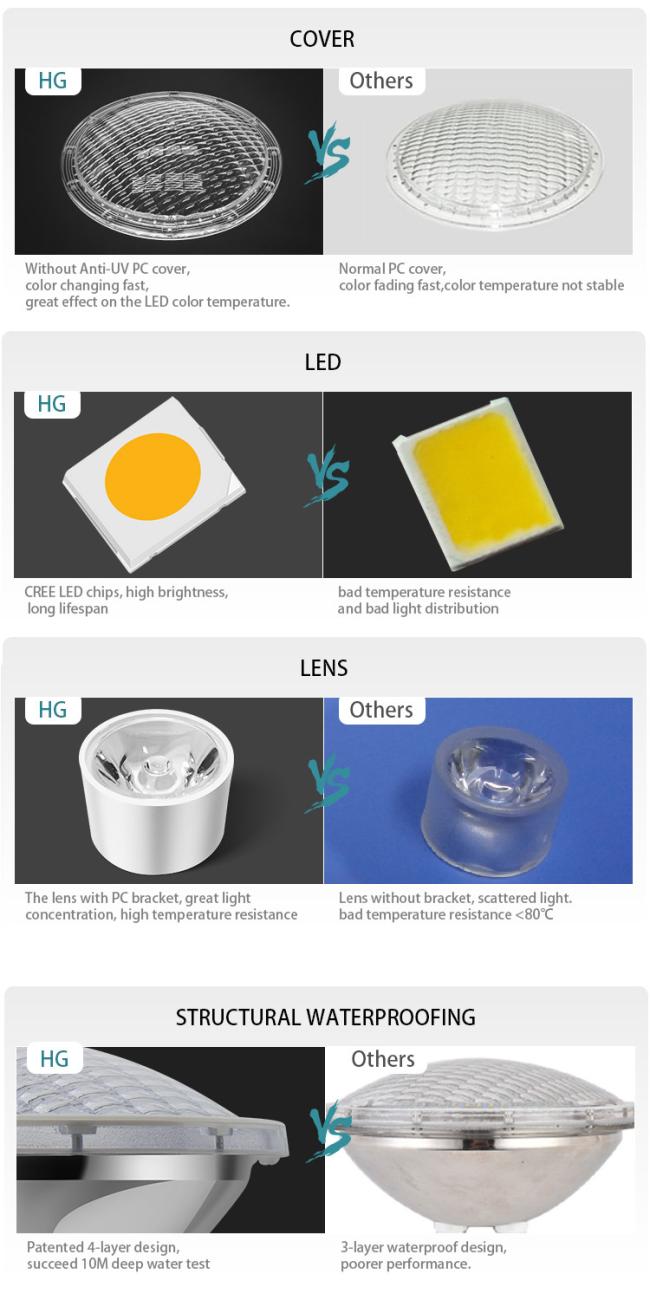

Advantage
1. Underwater led lights boat UL approval for some models.
2. IP68 structure waterproof ,whithout glue filled ,no color temperature fading.
3. Constant current power supply driver, EMC anti-interference circuit.
4. Assembly with SS316 screws,more durable.
5. PC material LED lens with bracket,high heat resistance.
6. Pool led lights 18w for pools diameter is about 177mm,can totally meet various PAR56 2. housing/niche: Pentair,Austra,Hayward,etc.

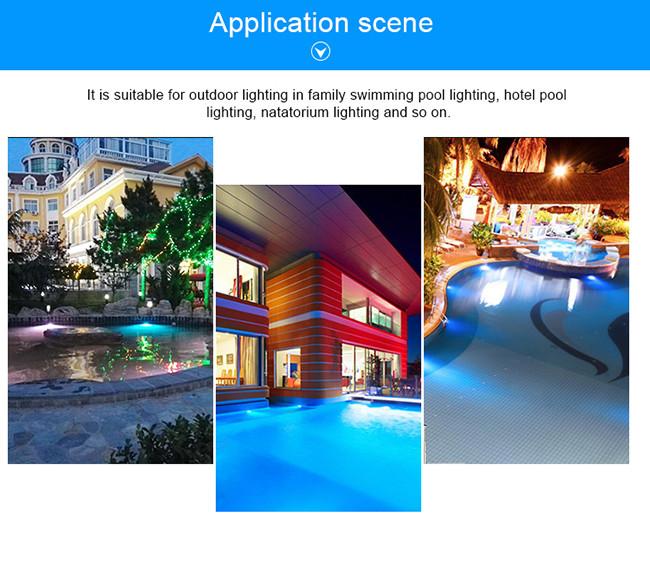

Application
HG-P56-18W-C-RGB-T led pool lighting widely use in concrete pool ,
vinyl pool, the lamp size can totally match various Germany and US PAR56 housing/niches.
Packing List
| Item | HG-P56-18W-C-RGB-T LED pool lighting |
| Product weight | 950G |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 20.6Kg |
