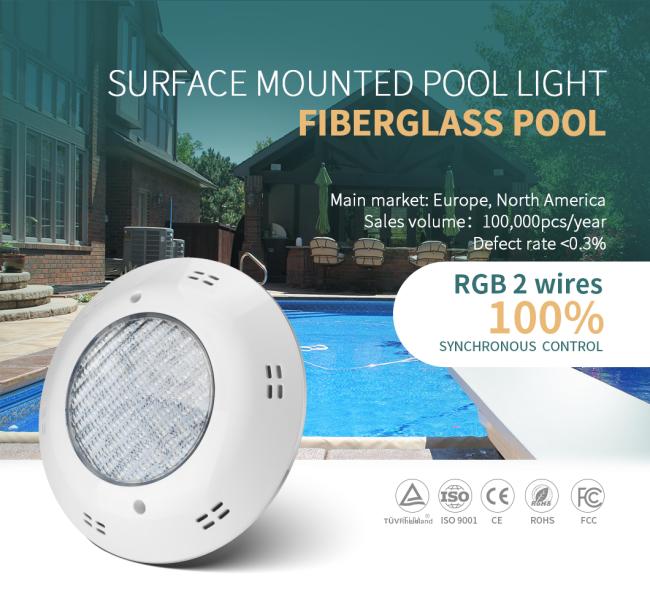

ABS RGB Fiberglass Pool Lights AC12V VDE LED Swimming Pool Bulbs
Product details
1. Nylon+fiber plastic back cover, good toughness and anti-aging ability.
2. Swiming pool light led underwater with high tension waterproof silicone ring, no glue ,color changing <3%.
3. Patented 4-layers waterproof structure, more stable than resin-filled pool lights.
4. Anti-UV PC cover, excellent yellowing resistance, and durable
5. Environmental ABS material shell.
| HG-PL-18W-F1-RGB-T | ||||||||
| Lamp parameter | Material | ABS + Transparent PC cover | ||||||
| Light dimension | Φ290×85mm | |||||||
| Input voltage | AC12 | |||||||
| Wattage | 17W±10％ | |||||||
| Light lumen | 520LM±10％ | |||||||
| Beam angle | 120° | |||||||
| BASE | Wire out | |||||||
| CCT | RGB | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, ROHS,FCC, IP68,VDE | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220Vcoil transformer | ||||||
| Wattage | 1.5W | |||||||
| cable | 2 wires | |||||||
| Control way | Synchronous control effect | |||||||
| Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 52 | 58 | 64 | 67 | 48 | 56 | 60 | 70 |

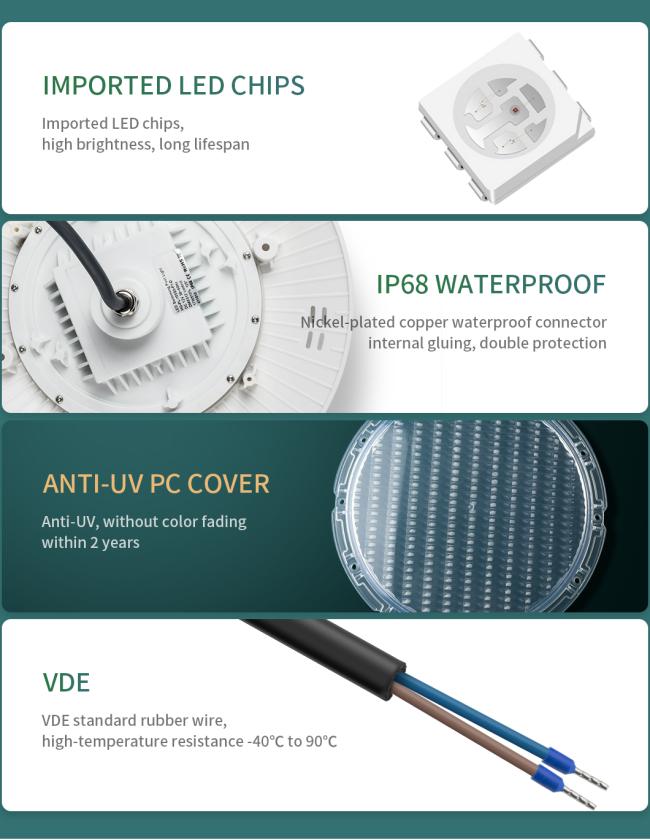

Product Features
1. IP68 structure waterproof ,whithout glue filled ,no color temperature fading.
2. Constant current power supply driver, EMC anti-interference circuit
3. PC material LED lens with bracket, high heat resistance.
4. IP68 nickel plated brass connector, better waterproof and anti-corrosion.
5. More fastness with 8mm thickness bracket, 2 end screws fixation.

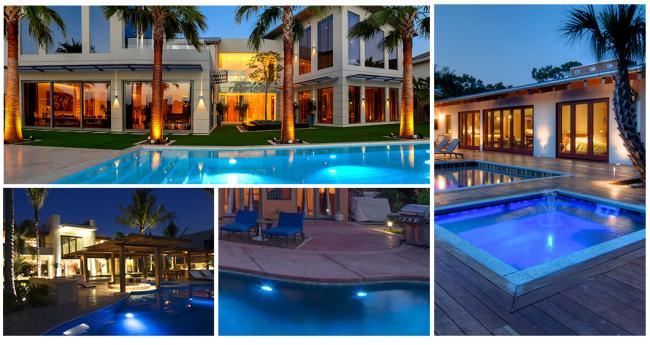

Application
Colored pool lights application :Concrete pool ,Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,
underwater etc.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip should be ≤120℃,
so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be
controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is
less than three per thousand .
