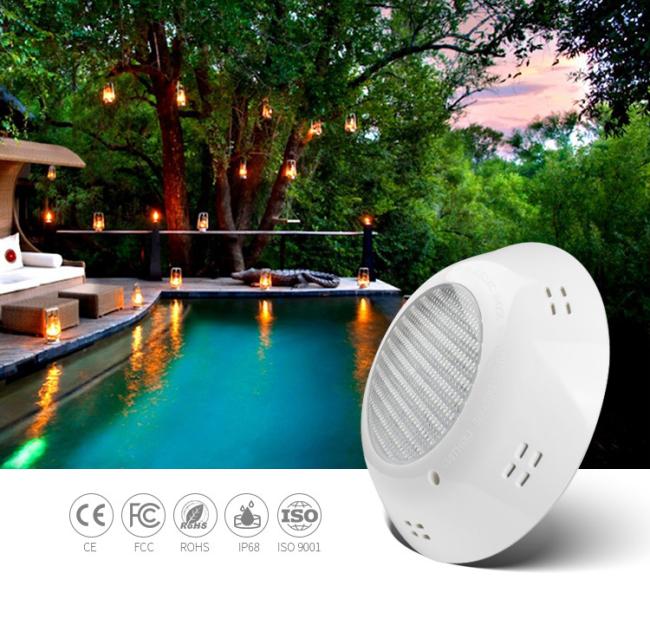

520LM LED Underwater Swimming Pool Lights FCC AC12V LED Vinyl Pool Lights
AC12V LED Vinyl Pool Lights RGB Switch control 18W Color Changing Swimming Pool LED
Product details
1. Shinning angle:120°.

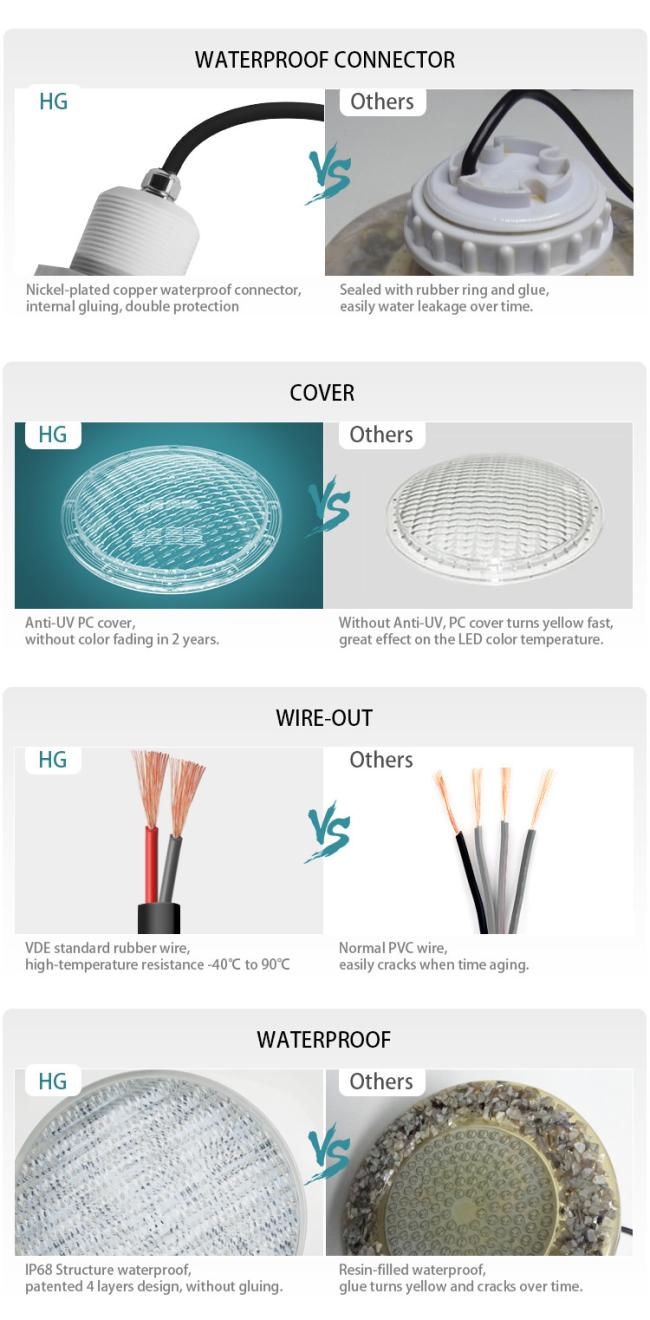

2. IP68 Structure waterproof, without resin-filled.
3. Patented 4-layers waterproof structure, more stable than resin-filled pool lights
4. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
5. LED Color & Control Way:RGB Color with 100% RGB Synchronous Control.
Product Features
1. All products succeeded in 10m deep water testing before delivery.
2. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
3. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
4. Dimmable led pool lights are Structure waterproof without glue, color changing ＜3%.
5. Transparent PC cover ,uniform lighting no dazzing.
Specification
| HG-PL-18W-V-RGB-K | ||||||||
| Lamp paramater | Material | ABS + Transparent PC cover | ||||||
| Light dimension | Φ290×150.6mm | |||||||
| Input voltage | AC12 | |||||||
| Wattage | 17W±10％ | |||||||
| Light lumen | 520LM±10％ | |||||||
| Halogen replacement | / | |||||||
| Beam angle | 120° | |||||||
| BASE | Wire out | |||||||
| CCT | RGB | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, ROHS,FCC, IP68,VDE | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer | ||||||
| Wattage | 1.5W | |||||||
| cable | 2 wires | |||||||
| Control way | Synchronous control effect | |||||||
| Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 67 | 70 | ||||||
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color changing swimming pool lights Must be 8 hours aging test.
3. Pool light MIni Finished products all passed 30 steps quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led Vinyl Pool Lights widely used for underwater lighting in film pools, hot spring pools, garden pools, etc.
RGB switch ON / OFF control(2 wires)
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the prices,
please call us or tell us in your email so that we will give priority to your inquiry.
2, Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3, Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of the sample is the same as a normal order and can be ready in 3-5 days.
4, Q: What is the MOQ?
A: One piece is OK. Because any order is from the sample.
5, Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
