Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
1. LED Color: White/Red/Green/Blue/RGB.
2. Control Way: Switch OF/OFF control.
3. Material: 316L Stainless steel +anti UV PC cover.
4. Underwater lighting 12v with structure waterproof IP68.
5. LED underwater lighting has 45 mil 3W LED chips, can choose white/blue/green/.etc.
6. Lamp body with stainless steel 316L material,strong anti-corrosion, 2 screws terminal or with 1M cable.
Product features
1. Private Mode products.
2. Finished product passed 30 steps quality inspection.
3. Anti UV PC cover, Uniform light,no yellowing or dazzling for two years.
4. IP68 rgb underwater led pool light withTwin posts, not easy to loose.
5. 12V led pool light bulb with 316 stainless steel screw assembly.
6. Constant current power driver,EMC anti-interference circuit.
Specification
| HG-P56-18X3W-C-RGB-T/HG-P56-18X3W-C-RGB-K | ||||||||
| Lamp paramater | Material | SS316L + Anti-UV PC cover | ||||||
| Light dimension | Φ177×102mm | |||||||
| Input voltage | AC12V | |||||||
| Wattage | 24W±10％ | |||||||
| Light lumen | 1200LM±10％ | |||||||
| Beam angle | 15°/30°/45°/60° | |||||||
| BASE | two screws terminal | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| Certificate | CE, ROHS,FCC, IP68,VDE | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer | ||||||
| cable | 2 wires | |||||||
| Control way | Synchronous control effect | |||||||
| Test position | LED PAR56 swimming pool lights (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 70 | 73 | ||||||

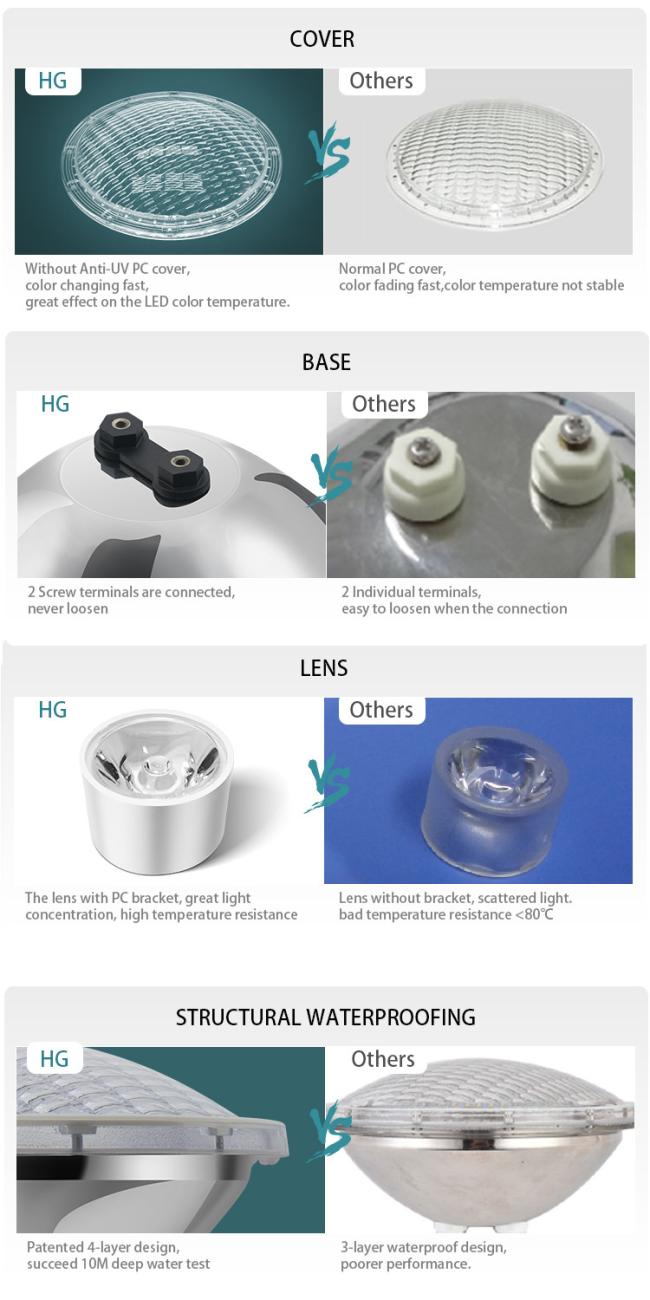

Advantage
1. Assembly with SS316 screws, more durable.
2. PAR56 pool lightsget UL approval for some models.
3. PC material LED lens with bracket, high heat resistance.
4. Constant current power supply driver, EMC anti-interference circuit.
5. IP68 structure waterproof, whithout glue filled, no color temperature fading.
6. Pool light led underwater diameter is about 177mm,can totally meet various PAR56 housing/niche:Pentair,Austra,Hayward,etc.

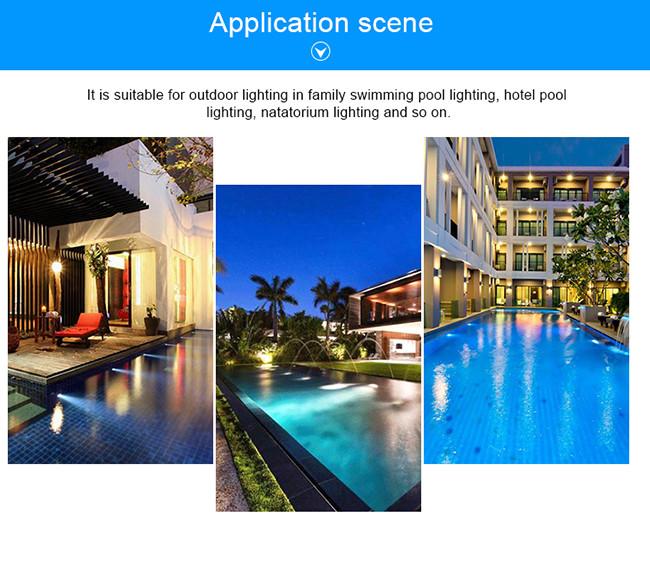

Application
HG-P56-18x3W-C-RGB-T led pool lighting widely use in concrete pool,
vinyl pool, the lamp size can totally match various Germany and US PAR56 housing/niches

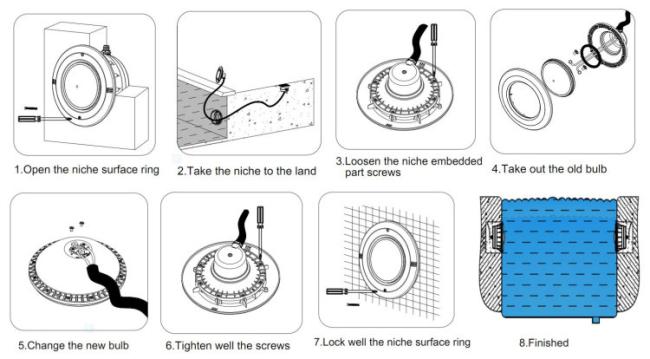

How to replace the old PAR56 led underwater lighting halogen
Packing List
| Item | HG-P56-18x3W-C-RGB-K LED pool lighting |
| Product weight | 1030g |
| color box size | 185×185×118mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 24kg |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃,
so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
