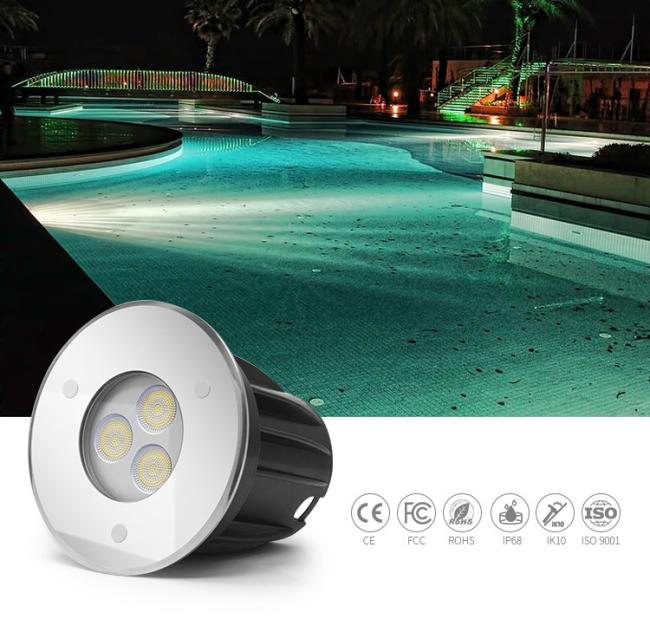

DMX512 Control Underwater LED Spotlights Muti Color 12 Volt 3W SS316L For Swimming Pool
DMX512 control muti color 12 volt 3W SS316L underwater light for swimming pool
Product details
1. IP Rank: IP68 waterproof.
2. Installation method:recessed install.
3. Shinning angle : 30°, other options: 15°/45°/60°.
4. LED pool light remote use Cree Led Chip.
5. LED Color&Color temperature: White color about 6500K±10％.
6. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional).
Specification
| HG-UL-3W-SMD-R-RGB-D | ||||||
| Parameter | Material | 316L Stainless steel material +Anti UV PC | ||||
| Working voltage | DC24V | |||||
| Wattage/Light lumen | 3W±10％/90LM±10％ | |||||
| Color | White/Red/Green/Blue/RGB | |||||
| IP Rank | IP68 | |||||
| Product Size | 98X88mm | |||||
| Certificated | FCC,CE, RoHS,IK10,IP68 | |||||
| Operating Temperature (℃) | -20~40℃ | |||||
| Chip | 3535RGB Led | |||||
| Control Way | DMX512 RGB Control | |||||
| Warranty | 2 year | |||||
| Packing | 50pcs/Carton | |||||
| test Site | Underwater test lighting time(Min) | |||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | |||||
| Underwater test lighting time(Min) | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 52 | 59 | 45 | 58 | 62 | 68 |
| LED | Beam angle | 120° | ||||
| working temperature | -20～40℃ | |||||

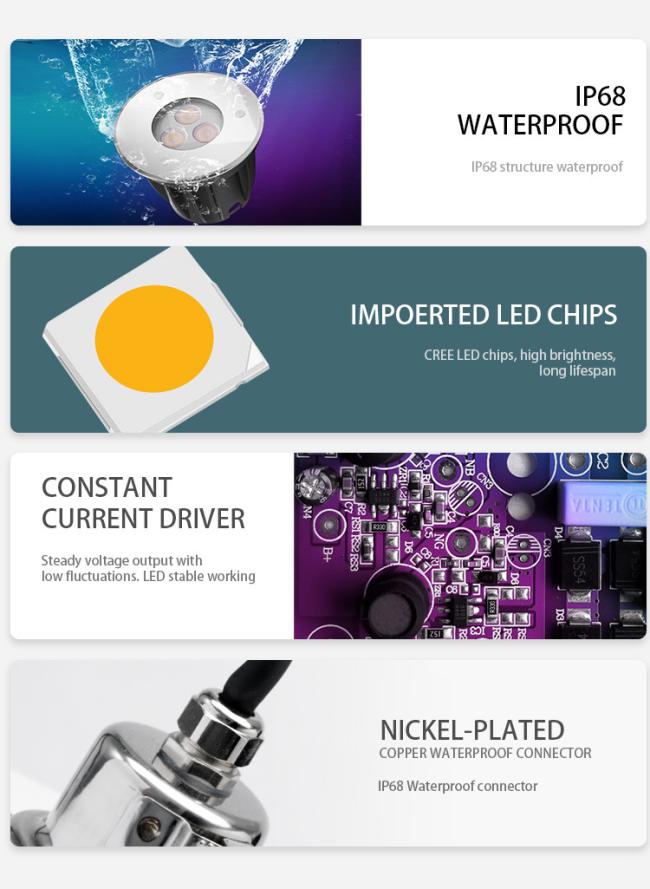

Product Features
1. 3w led pool light with 316L Stainless steel material ,strong anti-corrosion ability.
2. Integrated bead lens with uniform lighting, no dazzling,light transmittance ＞85%.
3. Thickened aluminum board :2-3mm, better heat dissipation with the conductivity :2.0W/(m.k).
4. RGB three-channel circuit design, universal RGB four-wire external controller, using DC24V power input.
5. Ball swimming pool lights use VDE waterproof cable with rubber sleeve,resistant voltage 2000V, temperature resistance at -40℃ to 90℃.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof, can long time use under water.
3. Must be 8 hours aging test and provide 2 Years warranty.
4. Good looking stamping SS316 rivet screws, more stable ,never fall off.
5. Good looking with rivet screw and cover nut assembly, longer lifespan.
6. Ground led light finished products all passed 30 steps quality inspection.
LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,8 hours LED agening test,100% inspection before deliver.

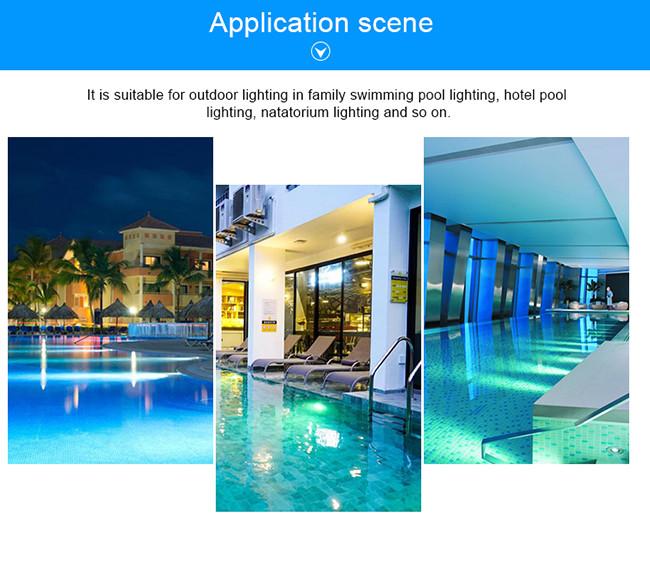

Application
Swimming pool light bulbs widely used in cement swimming pools, hot spring pools, garden pools and other underwater lighting.

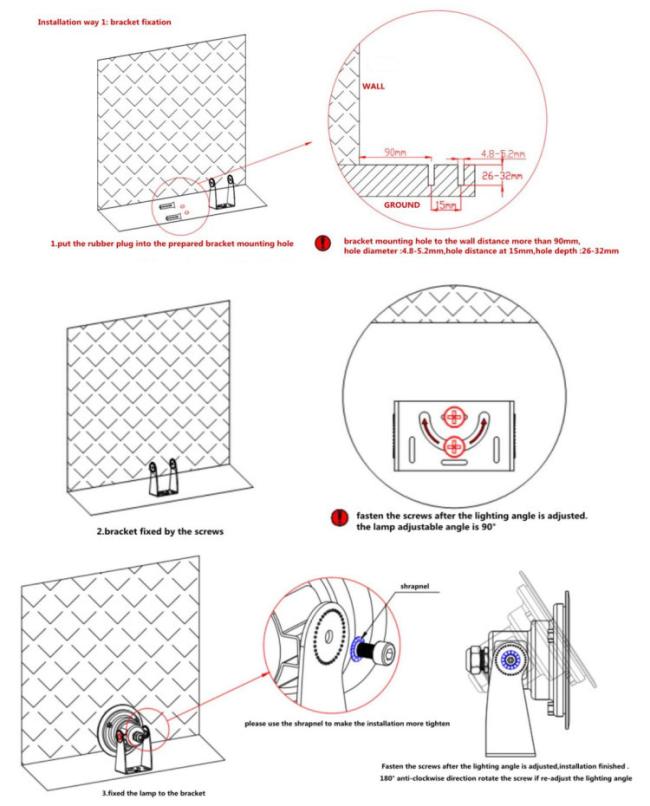

Installtion
Packing List
| Item |
HG-UL-3W-SMD-R-RGB-D |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
