External Control 36W Waterproof 316L Stainless Steel Rgb Led Swimming Pool Light
External Control 36W waterproof 316L Stainless steel rgb led swimming pool light
Product details
1. Pool lights led underwater use Cree Led Chip.
2. Shinning angle : 30°, other options: 15°/45°/60°
3. 8.0mmTempered glass transparent cover, thickness.
4. LED Color:RGB Color with external control.
5. IP68 garden light with VDE standard outlet: standard cable length is 1 meter.
6. RGB external control and DMX512 control are the best selling control in Heguang.
Product Features
1. RGB led swimming pool light use adjustable angle, adding bracket means never loose.
2. CREE brand lamp beads, super high brightness, high display means Ra≥80
3. 316L Stainless steel material, strong anti-corrosion ability.
4. Low voltage constant current power supply drive, efficiency ＞90%, make sure the LED is constant current working,
the input voltage change no effect with the LED lifespan.
5. 316L Stainless steel material ,super good anti-corrosion.
6. Customized IP68 waterproof nickel plated brass design,good anti-corrosion.
Specification
| HG-UL-36W-SMD-R-RGB-X | |||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | |||||
| length | Φ220×93mm | ||||||
| Input voltage | DC24V | ||||||
| Constant Driver | yes | ||||||
| Over-current Protection | yes | ||||||
| Wattage | 35W±10% Epistar | ||||||
| Light lumen | 1200LM±10％ | ||||||
| Beam angle | 15°/30°/45°/60° | ||||||
| Color: | RGB(DMX512/External /Wifi control/automatic changing) | ||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||||
| IP Rating | IP68 | ||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||||
| Life-span | 50,000 hours | ||||||
| Warranty | 2Years | ||||||
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2, external controller (can get the RGB color changing synchronous) 4 wires | |||||
| Test position | LED Underwater light (Min) | ||||||
| Working temperature 28℃ | Working temperature 40℃ | ||||||
| Underwater test time(Min) | 480 | 480 | |||||
| LED edge temperature(℃) | 51 | 63 | |||||
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 RGB led pool light must be 8 hours aging test and provide 2 Years warranty.
3. Waterproof pool lights finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws,more stable ,never fall off
5. Good looking with rivet screw and cover nut assembly,longer lifespan.
6. IP68 structure waterproof ,can long time use under water.

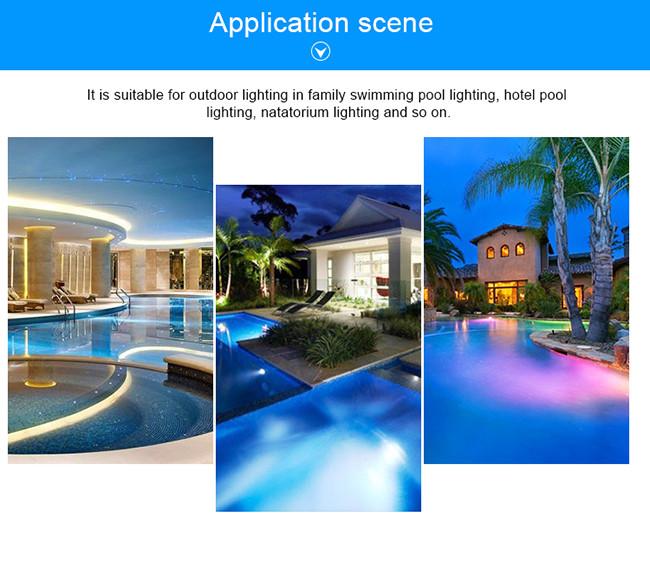

Application
(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.
Packing List
| Item |
HG-UL-36W-SMD-R-RGB-X |
| Product weight | 1700G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 8pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 17KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email so that we will give priority to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order, the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
