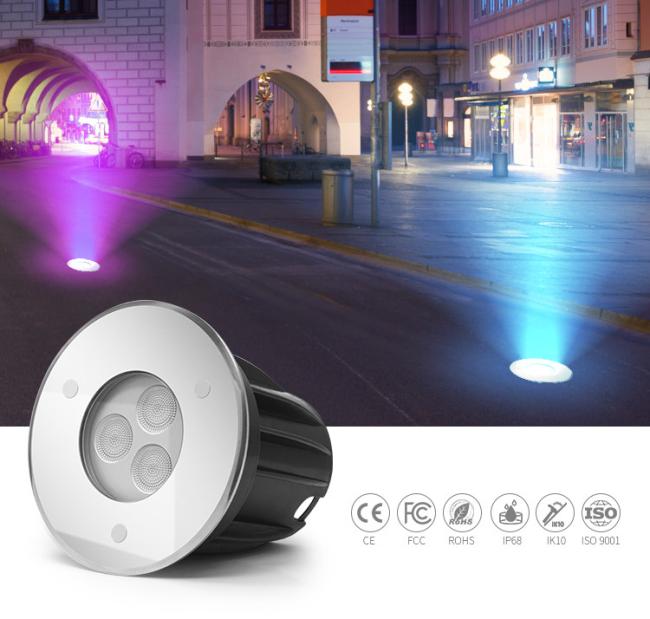

Mini 3W Led Ground Lights 316L Stainless Steel Tempered Glass Cover External Control
Mini 3W Led Ground Lights 316L Stainless Steel Tempered Glass Cover External Control
Product details
1. Made of 316L stainless steel, strong corrosion-resistance.
2. Optical LED lens, 15/30/45/60°for optional.
3. Imported highlight CREE LED chip, CRI>80. Low light degradation and long lifespan.
4. LED Color: White/Red/Green/Blue/RGB.
5. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional)
Product Features

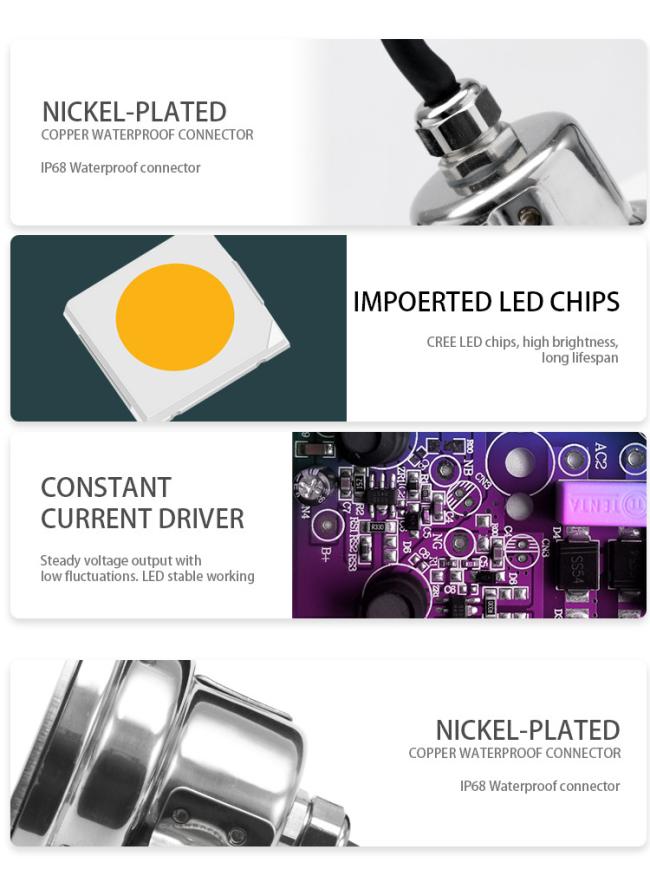

1. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
2. Lamp succeeded in the IES and Temperature rise test.
3. Inground pool lights underwater with Constant current power supply driver.
4. IK10 8mm transparent tempered glass, light transmittance ＞90%, no effect with the LED color temperature.
5. CREE LED chips, RA ≥80, gold wire welding,EMC and ceramic make the heat dissipation faster,
assure the longer lifespan of LED.
6. Constant current power driver, EMC anti-interference circuit.efficiency ＞90%, make sure the LED is constant
current working, the input voltage change no effect with the LED lifespan.
Specification
| HG-UL-3W-SMD-G-RGB-X/HG-UL-3W-SMD-G-RGB-D/HG-UL-3W-SMD-G-RGB-N/HG-UL-3W-SMD-G-RGB-W | |||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | |||
| length | Φ98×88mm | ||||
| Input voltage | DC24V | ||||
| Constant Driver | yes | ||||
| Over-current Protection | yes | ||||
| Wattage | 3W±1W Epistar | ||||
| Light lumen | 90LM±10％ | ||||
| Beam angle | 15°/30°/45°/60° | ||||
| Color | RGB(DMX512/External /Wifi control) | ||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||
| IP Rating | IP68 | ||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||
| Life-span | 50,000 hours | ||||
| Warranty | 2Years | ||||
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | |||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | |||||
| 3.RGB synchronous control design,2 wires connection 4, automatic changing 2 wires | |||||
| Test position | LED Grond light (Min) | ||||
| Working temperature 28℃ | Working temperature 40℃ | ||||
| land test(Min) | 480 | 480 | |||
| LED edge temperature(℃) | 60 | 72 | |||
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Good looking stamping SS316 rivet screws,more stable, never fall off.
3. LED rgb in ground lights must be 8 hours aging test and provide 2 Years warranty.
4. Inground lights rgb finished products all passed 30 steps quality inspection.
5. Thickened aluminum board: 2-3mm, better heat dissipation with the conductivity :2.0W/(m.k).
LED Ground light all passed 30 steps quality control , 100% waterproof at 10m depth, 8 hours LED agening test,
100% inspection before deliver.

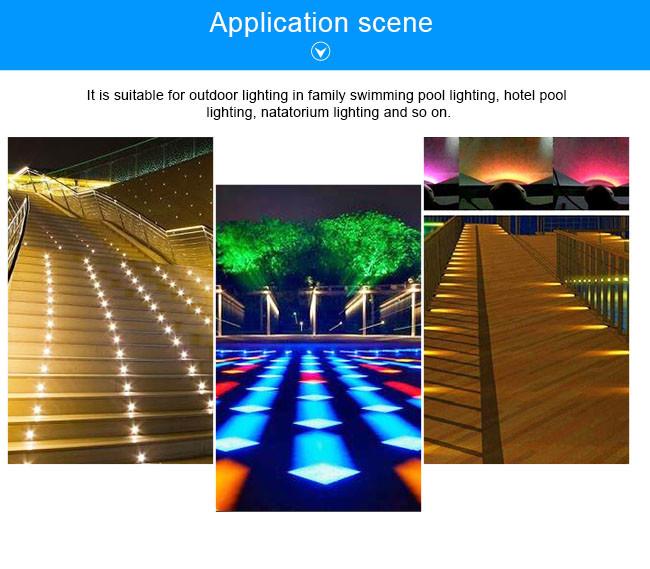

Application
IP68 Led Ground light widely used as garden, community, lawn, park and other landscape lighting
Packing List
| Item |
HG-UL-3W-SMD-G-RGB-X |
| Product weight | 500G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃,
so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
