IK10 90LM LED Underwater Swimming Pool Lights 24V 3W SS316L
Waterproof IP68 Outdoor Led Pin Lights , 24V 3W LED Recessed Pin Light For Park Garden
Product details
1. Working Voltage:DC24V Input.
2. SS316L material, super good anti-corrosion.
3. Led Color& Control Way: RGB Color with DMX512 Control.
4. VDE standard outlet: standard cable length is 1 meter.
5. RGB Switch control and synchronous control are the best selling control in Heguang.

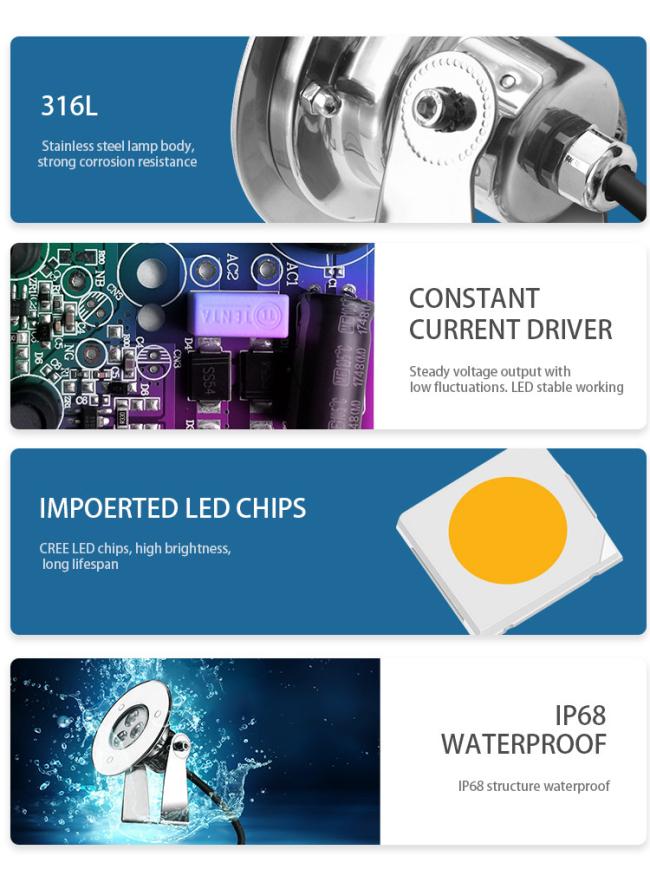

Product Features
1. SS316L material, super good anti-corrosion.
2. LED pins light IP68 is SS316L material, strong anti-corrosion ability.
3. Customized IP68 waterproof nickel plated brass design,good anti-corrosion.
4. LED pin light for park is IP68 structure waterproof, can long time use under water.
5. Thickened aluminum board:2-3mm, better heat dissipation with the conductivity :2.0W/(m.k),
6. LED recessed pin light use VDE waterproof cable with rubber sleeve, resistant voltage 2000V,temperature resistance at -40℃ to 90℃.
Specification
| HG-UL-3W-SMD-P-RGB-X/HG-UL-3W-SMD-P-RGB-D | |||||||
| Lamp paramater | Material | SS316L body+tempered glass cover | |||||
| length | Lamp Size: Φ98(diameter) *118mm(height) Pin size :Φ38×160mm |
||||||
| Input voltage | DC24V | ||||||
| Constant Driver | yes | ||||||
| Over-current Protection | yes | ||||||
| Wattage | 3W±1W | ||||||
| Light lumen | 90LM±10％ | ||||||
| Beam angle | 15°/30°/45°/60° | ||||||
| Color: | RGB(DMX512/External /Wifi control | ||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||||
| IP Rating | IP68 | ||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||||
| Life-span | 50,000 hours | ||||||
| Warranty | 2Years | ||||||
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | |||||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | |||||||
| test Site | LED Underwater light (Min) | ||||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | ||||||
| Underwater test lighting time(Min) | 480 | 480 | |||||
| Light source edge temperature(℃) | 60 | 70 | |||||

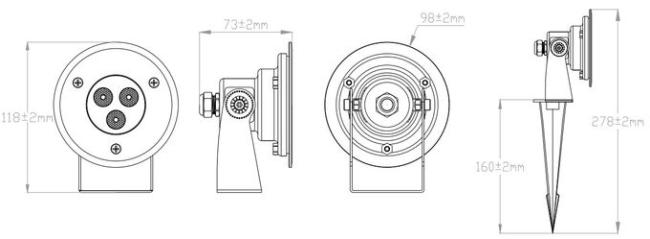

Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 led pin light must be 8 hours aging test and provide 2 Years warranty.
3. Track light with 2 pin finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws, more stable, never fall off.
5. Good looking with rivet screw and cover nut assembly, longer lifespan.
6. IP68 structure waterproof, can long time use under water.
LED Pin light all passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test, 100% inspection before deliver.
Application
HG-UL-3W(SMD)-P-X widely used as garden, community, lawn, park and other landscape lighting.
Packing List
| Item | HG-UL-3W-SMD-P-RGB-X |
| Product weight | 550G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
