18 Watt Waterproof Underwater LED Spotlights 6500K Ip68 SS316L 2 Years Warranty

Price Negotiable
Price: negotiation
MOQ: 1 pcs
Delivery Time: 5-7 working days
Brand: Birmate
Product Description

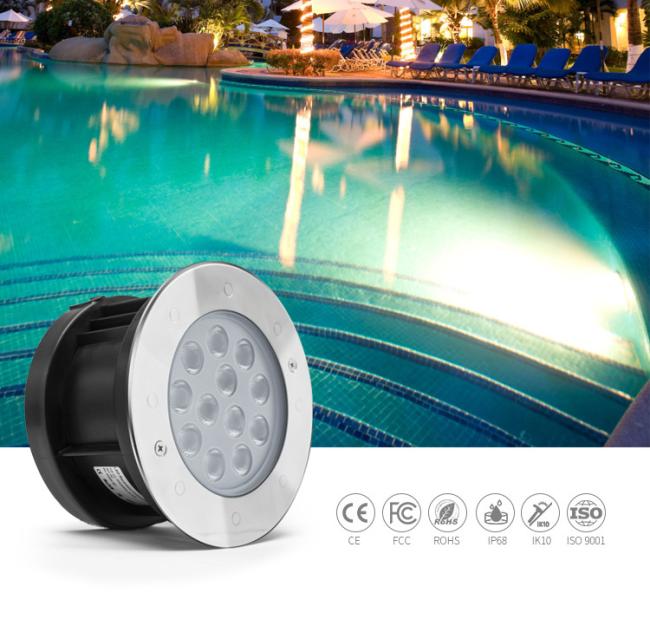

18 Watt Waterproof Underwater Led Lights 6500K Ip68 SS316L 2 Years Warranty



Product details



1. Private Mode products,Support ODM&OEM.

2. 316L Stainless steel material, super good anti-corrosion.

3. Color and CCT:Pure White: 6500K±10% Warm White:3000K±10% costomized.

4. Material: 316L Stainless steel +Tempered glass cover cover, no yellowing or dazzling for two years.

5. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional).

6. RGB external control and DMX512 control are the best selling control in Heguang.









Specification



HG-UL-18W-SMD-R
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ150×87.5mm
Input voltage DC24V
Constant Driver yes
Over-current Protection yes
Wattage 19W±10%
Light lumen 1600LM±10%
LED Chip CREE
Beam angle Beam angle:15°/30°/45°/60°
CCT Pure White: 6500±10%
Warm White:3000K±10%
Costomized
Packing Certificate CE, RoHS,FCC,IP68,IK10
G.W. / pc 1030g
Carton dimension 820×340×250mm
Qty. / ctn. 20PCS/CTN
G.W. / ctn. 21.86Kg
LED Underwater light (Min)
Ambient temperature 28℃ Ambient temperature 40℃
10 30 90 150 10 30 90 150
55 59 64 70 64 64 70 70

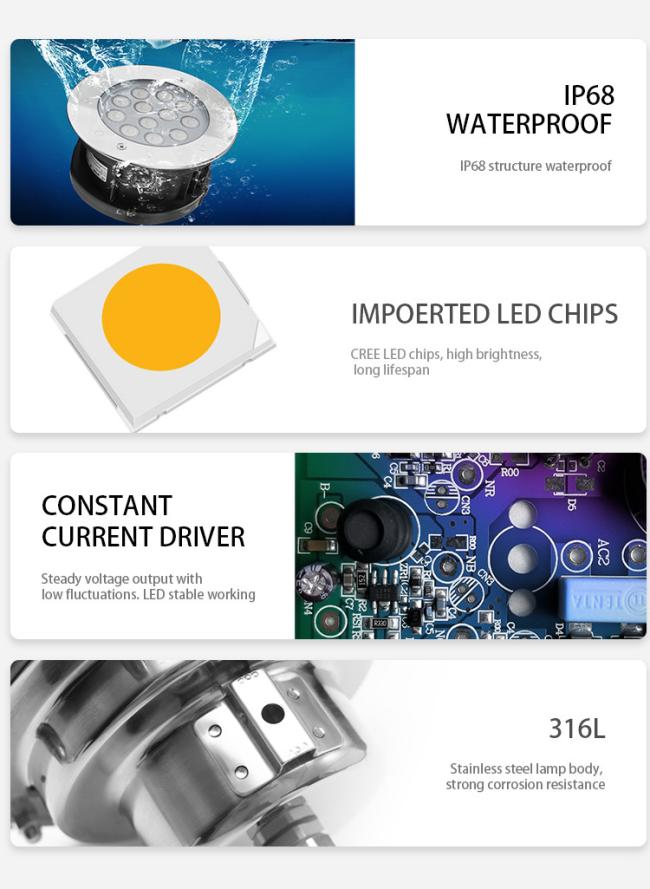

Product Features



1. 316L Stainless steel material ,strong anti-corrosion ability.

2. High quality wafer chip Low light decay / long life / low energy consumption.

3. Integrated bead lens with uniform lighting, no dazzling, light transmittance >85%.

4. Super bright SMD3030 and SMD3535, RA ≥80, gold wire welding, EMC and ceramic

make the heat dissipation faster, assure the longer lifespan of LED.

5. Low voltage constant current power supply drive, efficiency >90%, make sure the LED

is constant current working,the input voltage change no effect with the LED lifespan.







Advantage



1. Reliable quality with 100% 10m depth waterproof test.

2. Finished products all passed 30 steps quality inspection.

3. Good looking stamping SS316 rivet screws,more stable, never fall off.

4. Good looking with rivet screw and cover nut assembly, longer lifespan.

5. IP68 structure waterproof, can long time use under water.

6. Swimming pool lights must be 8 hours aging test and provide 2 Years warranty.



LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,

8 hours LED agening test,100% inspection before deliver.

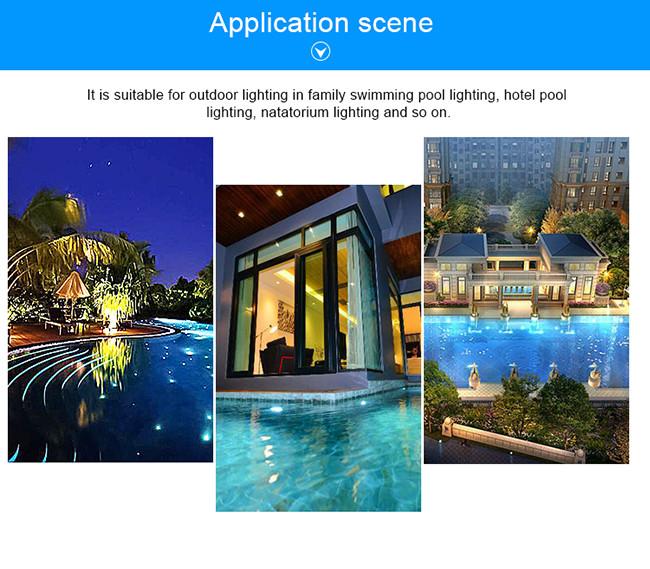

Application



(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding

installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.



Packing List



Item

HG-UL-18W-SMD-R

Product weight 900G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN





FAQ



1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us or tell us your email so that we will give priority to your inquiry.



2. Q: Do you accept the OEM&ODM?

A: Yes, OEM or ODM service are available.



3. Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.



4. Q: What is the MOQ?

A: NO MOQ ,the more you order, the cheaper price you will get.



5. Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention.

It’s our great honor to cooperate with you.



6.Q: How many pieces of lamp can connect with one RGB synchronous controller?

A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs.

If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs.

And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
