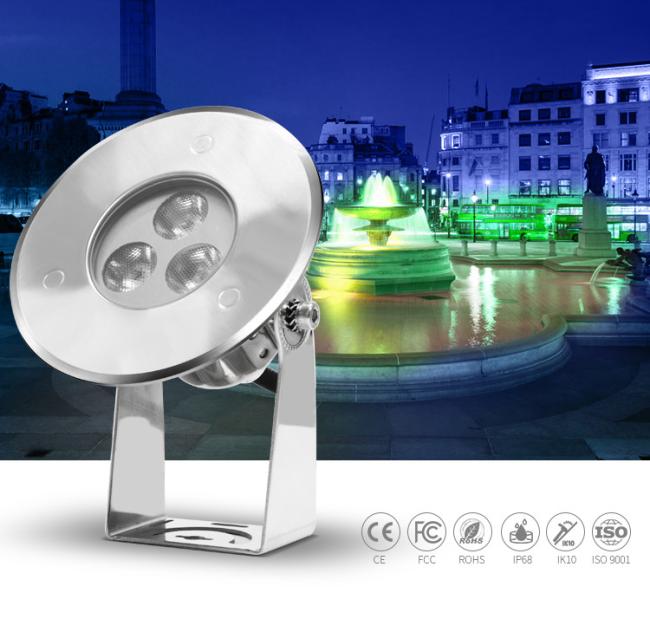

Muti Color 5W Led Underwater Fountain Lights , Led Inground Pool Lights DMX512 24V
Muti Color 5W Led Underwater Fountain Lights , Led Inground Pool Lights DMX512 24V
Product details
1. IP Rate: IP68 Structural waterproof.
2. Private Mode products,Support ODM&OEM.
3. 8.0mmTempered glass transparent cover, thickness.
4. 316L Stainless steel material, super good anti-corrosion.
5. Waterproof underwater led lights Shinning angle : 30°,other options: 15°/45°/60°.
6. RGB external control and DMX512 control are the best selling control in Heguang.
Specification
| HG-UL-5W-SMD-RGB-D | ||||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||||
| length | Φ98×118mm | |||||||
| Input voltage | DC24V | |||||||
| Constant Driver | yes | |||||||
| Over-current Protection | yes | |||||||
| Wattage | 5W±1W Epistar | |||||||
| Light lumen | 130LM±10％ | |||||||
| Beam angle | 15°/30°/45°/60° | |||||||
| Color: | RGB(DMX512/External /Wifi control/automatic changing) | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2Years | |||||||
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2, external controller (can get the RGB color changing synchronous) 4 wires 3.RGB synchronous control design,2 wires connection 4, automatic changing 2 wires | ||||||
| Test position | LED Underwater light (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 53 | 62 | ||||||

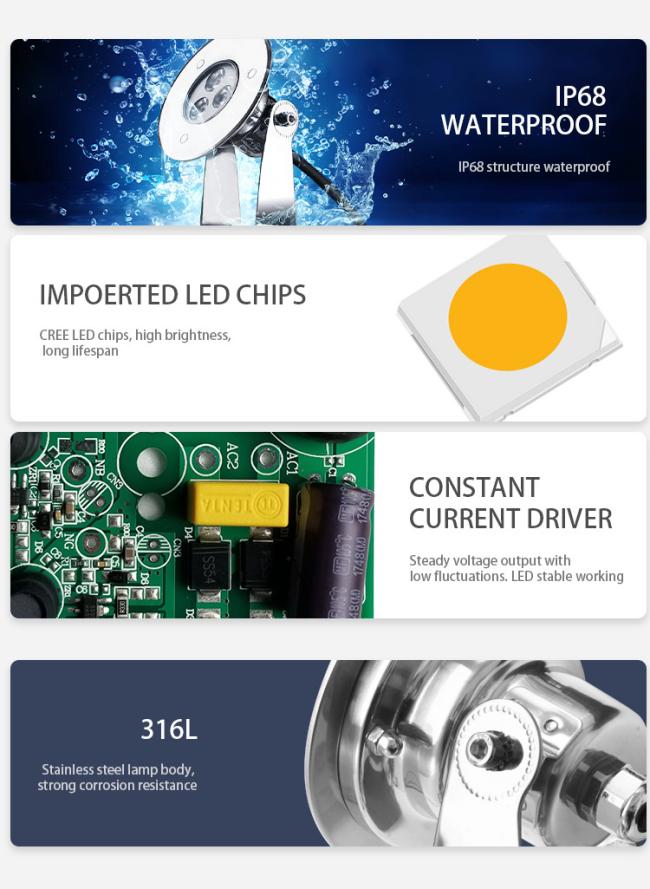

Product Features
1. Swimming pool window light 12v use 316L Stainless steel material,strong anti-corrosion ability.
2. IK10 8mm transparent tempered glass,light transmittance ＞90%, no effect with the LED color temperature.
3. Thickened aluminum board: 2-3mm,better heat dissipation with the conductivity :2.0W/(m.k).
4. RGB three-channel circuit design, universal RGB four-wire external controller, using DC12/24V power input.
5. VDE waterproof cable with rubber sleeve, resistant voltage 2000V, temperature resistance at -40℃ to 90℃.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection.
3. Good looking stamping SS316 rivet screws, more stable, never fall off.
4. Good looking with rivet screw and cover nut assembly, longer lifespan.
5. Swimming pool light 12v led IP68 structure waterproof, can long time use under water.
6. 12v rgb swimming pool lights bulb must be 8 hours aging test and provide 2 Years warranty.
LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.
Connection&Installtion
Packing List
| Item |
HG-UL-5W-SMD-RGB-D |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order, the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
