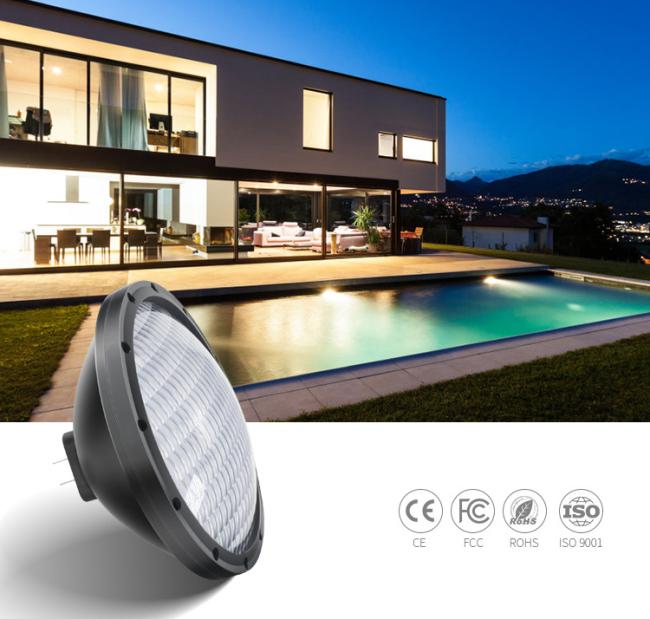

UL 20W PAR56 GX16D Underwater Light Led Wall Recessed For Kids Swimming
UL 20W PAR56 GX16D Underwater Light Led Wall Recessed For Kids Swimming
Product features
1. PC material with bracket lens, high temperature and heat resistance.
2. Constant current driver, it can work steadily at high temperature.
3. Die-casting aluminum lamp body, fast heat dissipation to make LED more durable.
4. Swimming pool for kids Apply for Hayward, Pentair, Jandy brand and several size fixtures.
5. Lamp body 316L Stainless steel material, good heat disspation structure.
6. Same size as traditional PAR56 light, fully compatible with GX16D swimming pool light.
Specification
| Product Item: HG-P56-20W-B(GX16D-H)-UL | ||||||||
| Parameter | Material | Aluminum +anti UV PC cover. | ||||||
| Working voltage | AC100-240V | |||||||
| Wattage/Light lumen | 21W±10％/1800LM±10％ | |||||||
| Color temperature |
Pure White: 6500K±10% Warm White:3000K±10% |
|||||||
| costomized | ||||||||
| Product Size | Φ177×118mm | |||||||
| Working Frequency | 50/60HZ | |||||||
| Working temperature | -20～40℃ | |||||||
| Quantity | 48pcs | |||||||
| Certificate | UL,FCC,CE, RoHS | |||||||
| N.W | 670g | |||||||
| test Site | Underwater test lighting time(Min) | |||||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | |||||||
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 41 | 51 | 55 | 69 | 54 | 57 | 64 | 67 |
| LED | Beam angle | 120° | ||||||
| working temperature | -20～40℃ | |||||||

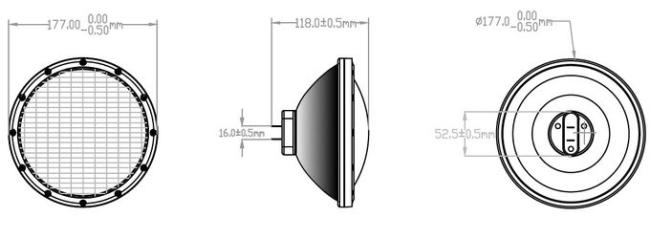

Product size
Application
led salt water pool light application: Concrete pool, Vinyl pool, Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.
Advantage
1. High Power high bright LED chip.
2. swimming pools filters with eather resistance, aging resistance.
3. price swimming pool need to test 8 hours LED agening test.
4. Finished product passed 30 steps quality inspection.
5. 316L Stainless steel material with bracket lens, high temperature and heat resistance
6. 316L stainless steel lamp cup, stronger corrosion resistance,
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
