IP68 Waterproof RGB Color Par 56 Led Swimming Pool Lamp ABS Controller 18 Watt
IP68 waterproof RGB color ABS controller control par 56 led swimming pool lamp
Product features
1. Constant current driver, comply with CE & EMC standard.
2. Swimming pool lamp are IP68 structure waterproof.
3. Home swimming pool have been passed UL certificate.
4. RGB pool light are Engineering enviromental ABS lamp body.
6. RGB Switch control and synchronous control are the best selling control in Heguang.
Specification
|
Product Item: HG-P56-18W-A-RGB-T-UL Connect with our RGB Controller (HG-8300RF) |
||||||||
|
Parameter |
Material | Engieering ABS+anti UV PC cover. | ||||||
| Working voltage | AC12V | |||||||
| Wattage | 18W | |||||||
| Color | RGB | |||||||
| Control Way | 100% Synchronous Control | |||||||
| Light lumen | 1700LM±10％ | |||||||
| Led Size |
Φ177×95mm |
|||||||
| Working temperature |
-20～40℃ |
|||||||
| IP Rank |
IP68 |
|||||||
| packing | 20Pcs/Car | |||||||
| Packing Size |
630×410×410 mm |
|||||||
| packing Weight |
14Kg |
|||||||
| test Site | Underwater test lighting time(Min) | |||||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | |||||||
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 70 |
| LED | Beam angle | 120° | ||||||
| working temperature |
-20～40℃ |
|||||||
Product Size

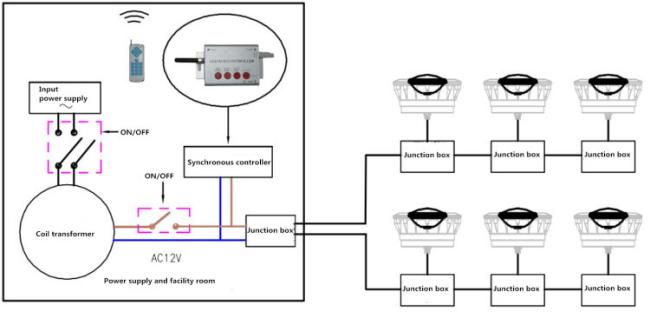

Connection

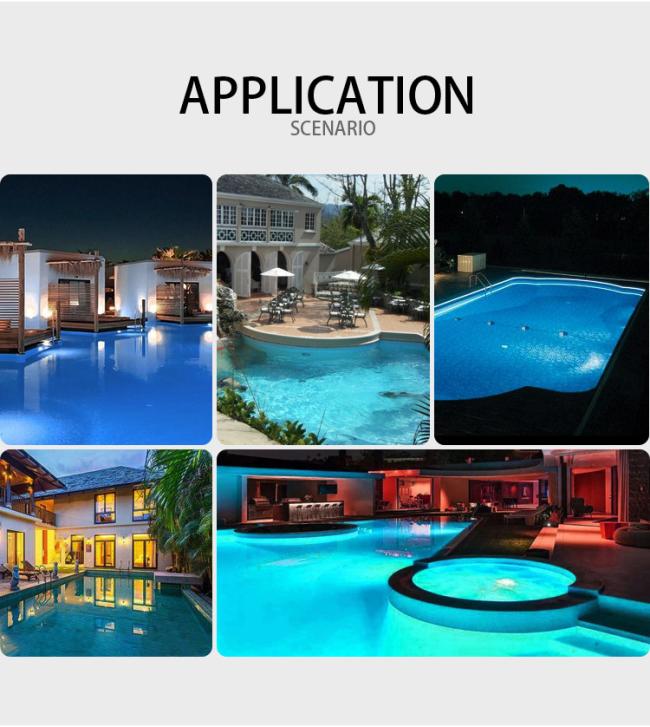

Application
Led ground light are application: Concrete pool, Vinyl pool, Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.

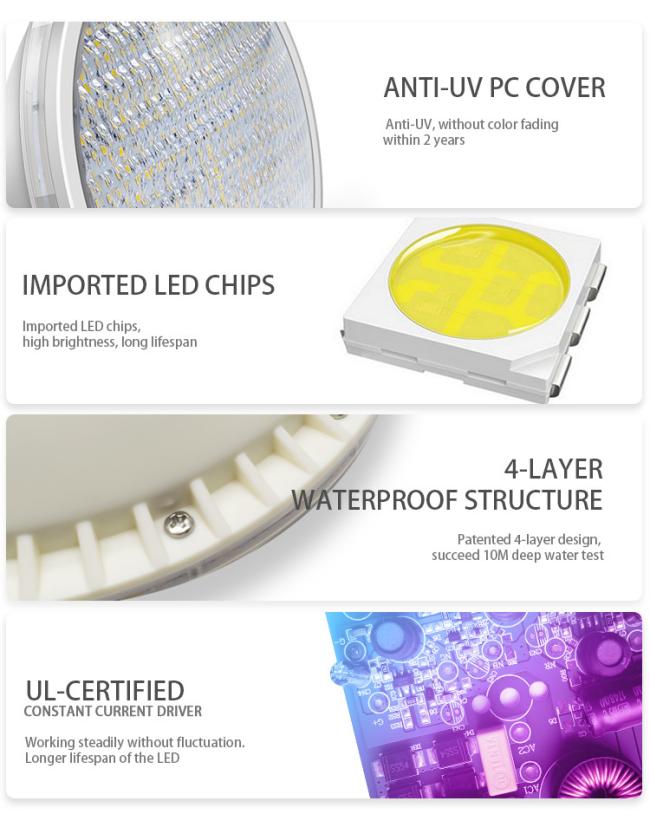

Advantage
1. High Power high bright LED chip.
2. Lights swimming pool with eather resistance, aging resistance.
3. Water fall for swimming pools need to test 8 hours LED agening test.
4. Swimming pool toys get UL approval for some models.
5. 316L Stainless steel material with bracket lens, high temperature and heat resistance.
6. 316L stainless steel lamp cup, stronger corrosion resistance.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
