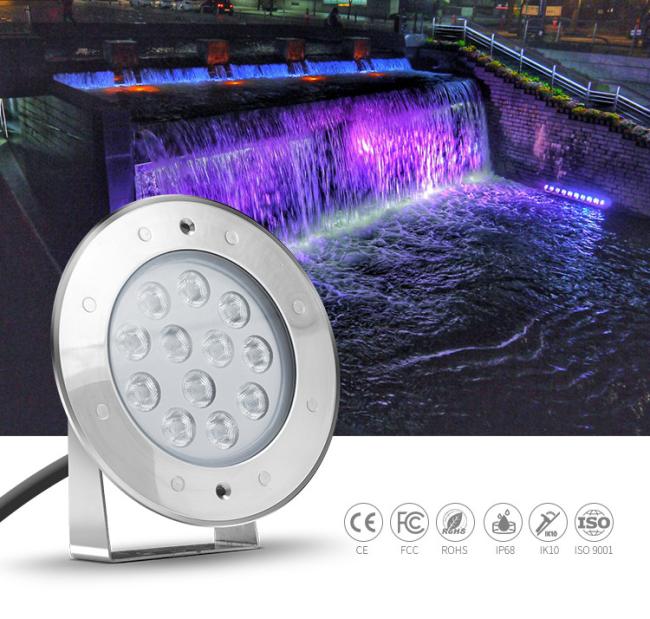

Dmx512 Color Change Underwater LED Spotlights 850LM High Brightness Anti Corrosion
Dmx512 Color Change Underwater LED Spotlights 850LM High Brightness Anti Corrosion
1. LED Color: White/Red/Green/Blue/RGB.
2. Private Mode products,Support ODM&OEM.
3. VDE standard outlet: standard cable length is 1 meter.
4. 316L Stainless steel material, super good anti-corrosion.
5. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional).
Product features
1. Power fluctuation is less than 10%.
2. SS316L Spot light use Anti-loose bracket.
3. CREE brand lamp beads, super high brightness, high display means Ra≥80.
4. 316L Stainless steel material, strong anti-corrosion ability/SS316L material ,super good anti-corrosion.
5. IK10 8mm transparent tempered glass, light transmittance ＞90%, no effect with the LED color temperature.
6. Hoose high-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity aluminum substrate.
Specifications
| HG-UL-9W-SMD-RGB-D-12V | ||||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||||
| length | Φ150×156.5mm | |||||||
| Input voltage | DC24V | |||||||
| Constant Driver | yes | |||||||
| Over-current Protection | yes | |||||||
| Wattage | 9±1W Epistar | |||||||
| Light lumen | 350LM±10％ | |||||||
| Beam angle | 15°/30°/45°/60° | |||||||
| Color: | RGB(DMX512/External /Wifi control | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2Years | |||||||
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | ||||||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | ||||||||
| test Site | LED Underwater light (Min) | |||||||
| Ambient temperature 28℃ | Ambient temperature 40℃ | |||||||
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 59 | 45 | 58 | 62 | 68 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection
3. Good looking stamping SS316 rivet screws, more stable, never fall off
4. Good looking with rivet screw and cover nut assembly, longer lifespan.
5. IP68 structure waterproof, can long time use under water.
6. IP68 inground led bulb Must be 8 hours aging test and provide 2 Years warranty.
Application
RGB underwater lights used as outdoor swimming pool, hotel pool/hotel pool/natatorium/garden/park.
outdoor lawns, home pool lighting, large outdoor fountains, rockery waterfalls.

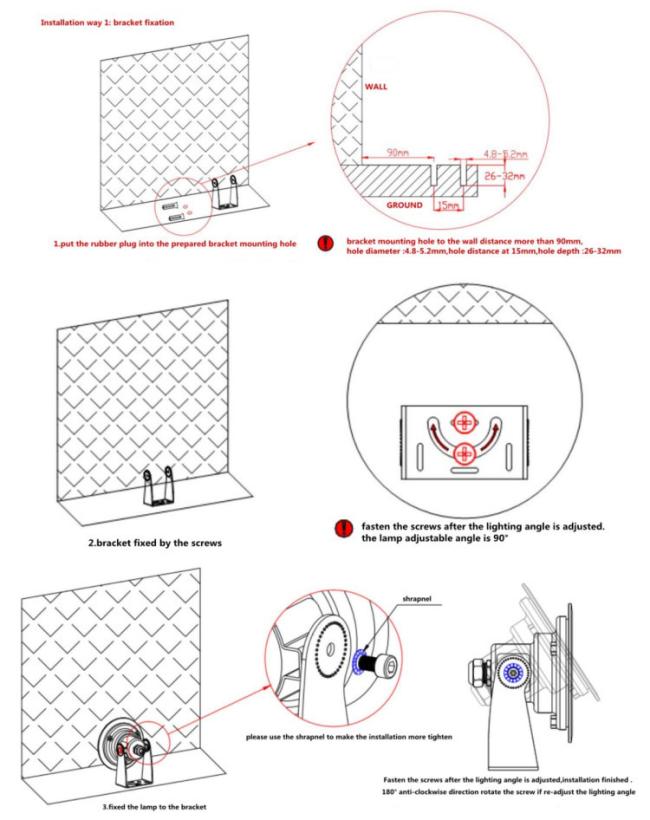

Installtion
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us in your email so that we will give priority to your inquiry.
2.Q: Why choose your factory?
We in led pool lighting over 10 years, iWe have own professional R&D and production and sales team.
we are the only one China supplier who is listed in UL certificate in Led Swimming pool light industry.
3. Q: Do you accept the OEM&ODM?
Yes, OEM or ODM service are available.
4. Q: What is the MOQ?
A: One piece is OK. Because any order is from sample.
5.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
6. Q: How can i get my package?
After we send the products,12-24hours we will send tracking number to you, then you can track your products on your local express website.
