12 Watt IP68 Waterproof Outdoor 6500K White Color Swimming Pool Underwater Light
12 Watt IP68 Waterproof Outdoor 6500K White Color Swimming Pool Underwater Light

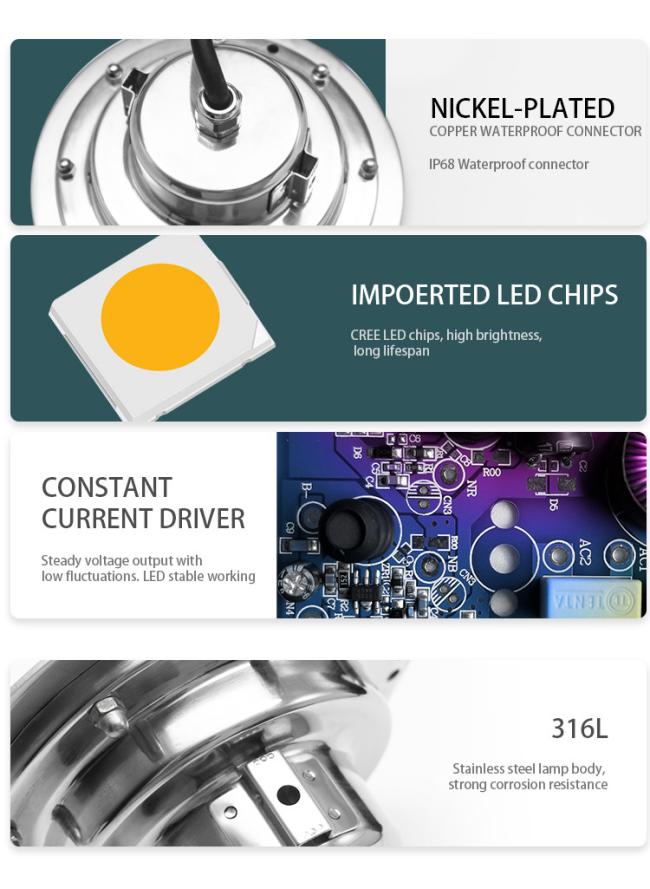

Product details
1. Lamp succeeded in the IES and Temperature rise test
2. Imported high light CREE LED chip, CRI>80. Low light degradation and long lifespan.
3. Optical LED lens, 15/30/45/60°for optional.
4. The patented anti-loose bracket for fixing lighting angle.
Product Features
1. Led pool lighting is used for pond, pool, waterfall.
2. Pentair pool led lights adjustable angle led underwater light for pool
3. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
4. Lamp succeeded in the IES and Temperature rise test
5. Pool lights led underwater swimming, durable and project used.
Specification
| HG-UL-12W-SMD-R-12V | |||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | |||||
| length | Φ150×87.5mm | ||||||
| Input voltage | AC/DC12V | ||||||
| Constant Driver | yes | ||||||
| Over-current Protection | yes | ||||||
| Wattage | 12W±10% | ||||||
| Light lumen | 1100LM±10％ | ||||||
| Beam angle | 15°/30°/45°/60° | ||||||
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | ||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||||
| IP Rating | IP68 | ||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||||
| Life-span | 50,000 hours | ||||||
| Warranty | 2Years | ||||||
| Test position | LED Underwater light (Min) | ||||||
| Working temperature 28℃ | Working temperature 40℃ | ||||||
| Underwater test time(Min) | 480 | 480 | |||||
| LED edge temperature(℃) | 63 | 73 | |||||
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection
3. Good looking stamping SS316 rivet screws, more stable, never fall off.
4. Good looking with rivet screw and cover nut assembly, longer lifespan.
5. Pool light bulb must be 8 hours aging test and provide 2 Years warranty.
6. Thickened aluminum board :2-3mm, better heat dissipation with the conductivity :2.0W/(m.k).
LEDunderwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.

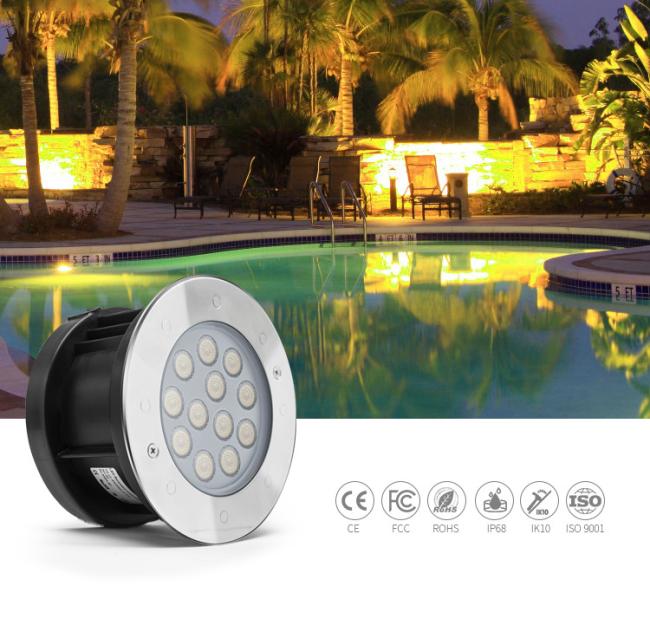

Application
Lights swimming pool widely used in cement swimming pools, hot spring pools, garden pools
and other underwater lighting.
Packing List
| Item | HG-UL-9W-SMD-R-12V |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email, so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
