RGB Color Change SS316L Underwater Spot Light, External Control IP68 Pool Lighting outdoor

Price Negotiable
Price: negotiation
MOQ: 1 pcs
Delivery Time: 5-7 working days
Brand: Birmate
Product Description



RGB Color Change SS316L Underwater Spot Light,RGB External Control IP68 Pool Lighting outdoor



Product details



1. Lamp succeeded in the IES and Temperature rise test.

2. Pool light bulb, durable and project used.

3. IP68 Structure waterproof, all products succeeded in 10m deep water testing before delivery.

4. The whole lamp made of 316L stainless steel, strong corrosion-resistance, can be used in salty water.

5. Low voltage outdoor led lights use VDE standard outlet: standard cable length is 1 meter.

6. RGB external control and DMX512 control are the best selling control in Heguang.







Product Features

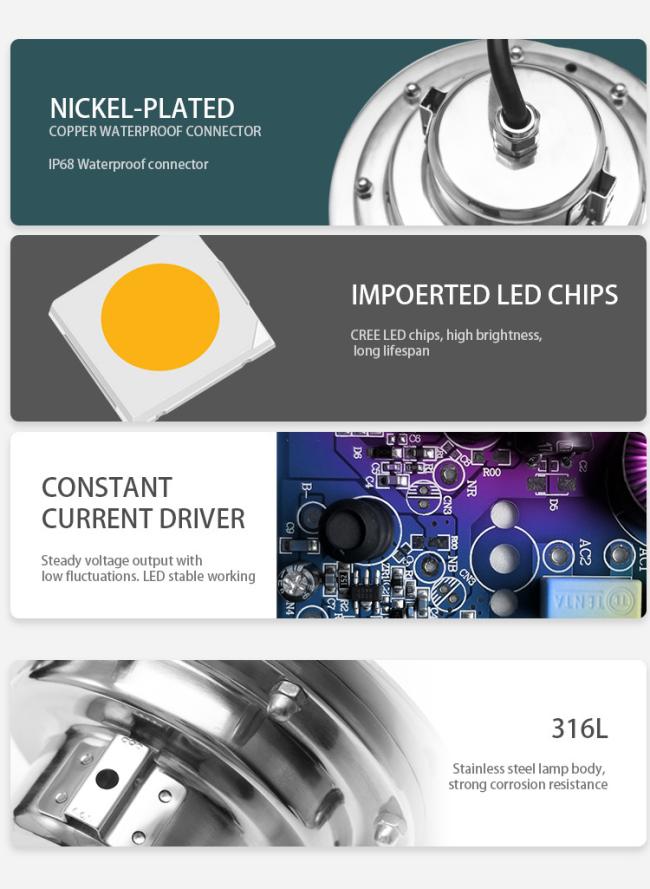

1. 8mm aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.

2. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.

3. Lamp succeeded in the IES and Temperature rise test

5. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.

6. 316 screws are riveted on the surface cover, good looking and won't loosen.



Specification



HG-UL-12W-SMD-R-RGB-X-12V/HG-UL-12W-SMD-R-RGB-D-12V
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ150×87.5mm
Input voltage DC12V/AC12V
Constant Driver yes
Over-current Protection yes
Wattage 12W±10%
Light lumen 480LM±10%
Beam angle 15°/30°/45°/60°
Color: RGB (synchronous control /DMX512/External /Wifi control)
Specifics Operating Temperature (℃) -20~40℃
IP Rating IP68
Certificate CE, RoHS,FCC,IP68,IK10
Life-span 50,000 hours
Warranty 2Years
RGB Controller LED Underwater lights 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2, external controller (can get the RGB color changing synchronous) 4 wires 3.RGB synchronous control design,2 wires connection
Test position LED Underwater light (Min)
Working temperature 28℃ Working temperature 40℃
Underwater test time(Min) 480 480
LED edge temperature(℃) 63 73



Advantage



1. Reliable quality with 100% 10m depth waterproof test.

2. IP68 structure waterproof, can long time use under water.

3. Good looking with rivet screw and cover nut assembly, longer lifespan.

4. Good looking stamping SS316 rivet screws,more stable, never fall off.

5. Lights for pool must be 8 hours aging test and provide 2 Years warranty.

6. Finished products all passed 30 steps quality inspection



LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,

8 hours LED agening test,100% inspection before deliver.



Application

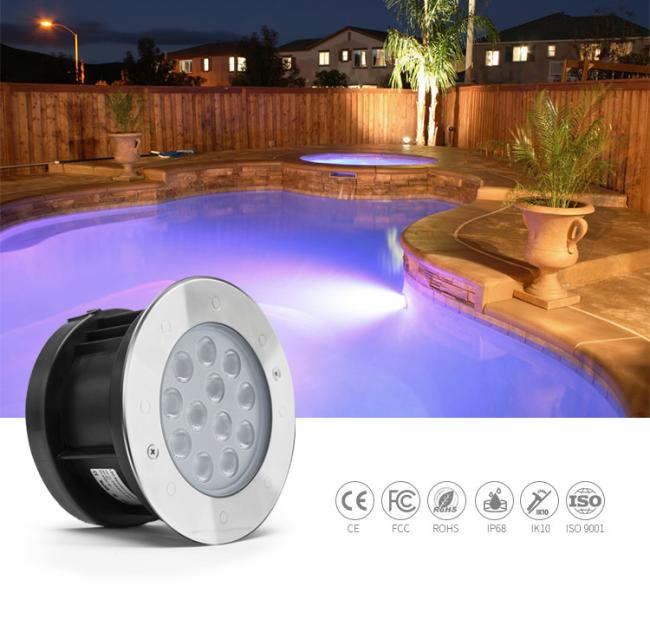

LED  bulb for pool widely used in cement swimming pools, hot spring pools, garden pools and other underwater lighting.





Packing List



Item

HG-UL-5W-SMD-R-RGB-X-12V

Product weight 510G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN





FAQ



1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us or tell us your email so that we will give priority to your inquiry.



2. Q: Do you accept the OEM&ODM?

A: Yes, OEM or ODM service are available.



3. Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.



4. Q: What is the MOQ?

A: NO MOQ, the more you order ,the cheaper price you will get.



5. Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.



6.Q: How many pieces of lamp can connect with one RGB synchronous controller?

A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier,

it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs,

amplifier is 8pcs.
