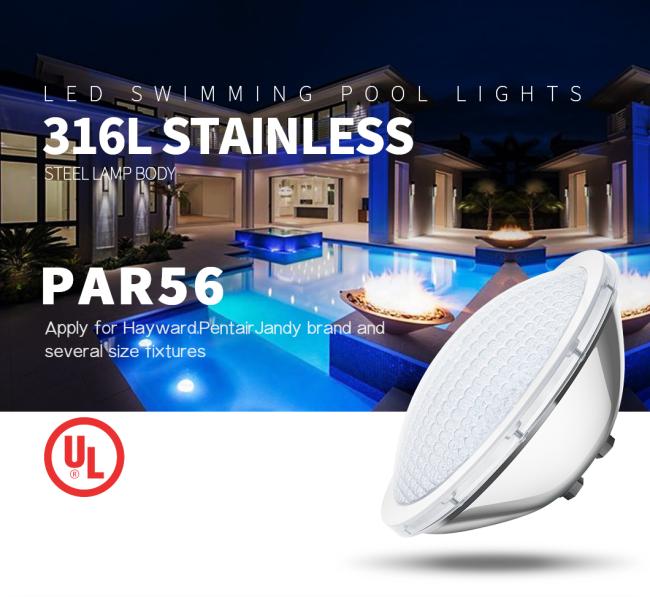

RGB 316L PAR56 Waterproof Swimming Pool Light SS316L UL LED Pool Light

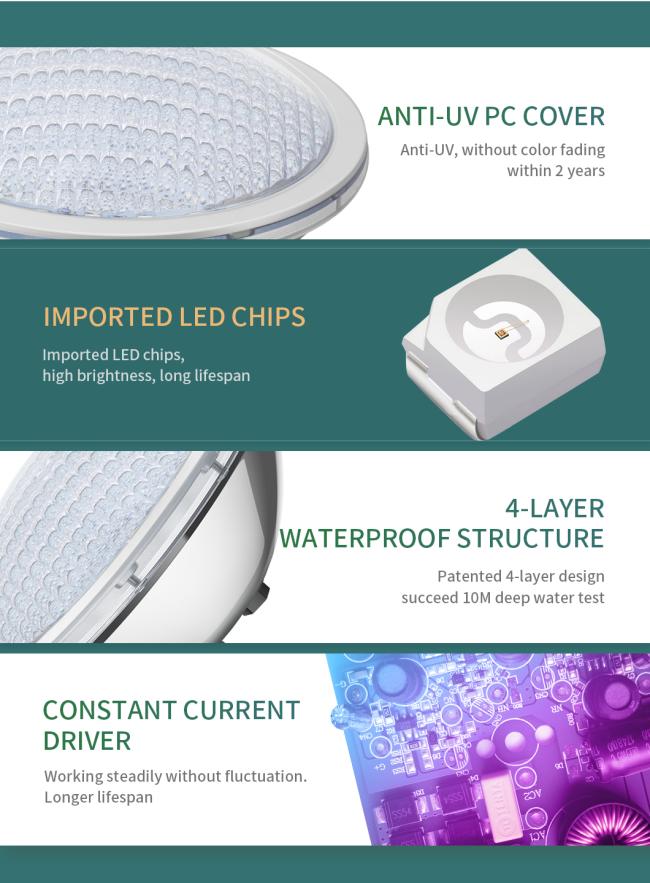

Product features
1. IP68 structure waterproof.
2. 316L stainless steel lamp body.
3. Pool led lights changing color with Anti-UV PC cover.
4. Constant current driver have been passed UL certificate.
5. Constant current power driver, EMC anti-interference circuit.
6. Heguang Lighting patented product have been passed UL certificate.
Specification
| HG-P56-15W-C-RGB-T-UL | ||||||
| Lamp paramater | Material | SS316L + Anti-UV PC cover | ||||
| Light dimension | Φ177×102mm | |||||
| Input voltage | AC12V | |||||
| Wattage | 14W±10％ | |||||
| Light lumen | 450LM±10％ | |||||
| Beam angle | 120° | |||||
| BASE | two screws terminal | |||||
| CCT | RGB | |||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||
| IP Rating | IP68 | |||||
| Certificate | UL,CE, ROHS,FCC, IP68 | |||||
| Life-span | 50,000 hours | |||||
| Warranty | 3 Years | |||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||
| Waterproof ring of housing | must do right to get IP68 | |||||
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer | ||||
| Wattage | 1.5W | |||||
| cable | 2 wires | |||||
| Control way | Synchronous control effect | |||||
| Test position | LED PAR56 swimming pool lights (Min) | |||||
| Working temperature 28℃ | Working temperature 40℃ | |||||
| Underwater test time(Min) | 480 | 480 | ||||
| LED edge temperature(℃) | 64 | 70 | ||||
Product Size
Application
Pool lamps application: Concrete pool, Vinyl pool, Outdoor Swimming Pool,family pool, hotel pool, underwater etc.
Advantage
1. High Power high bright LED chip.
2. Pentair led pool light with eather resistance, aging resistance.
3. Underwater boat light need to test 8 hours LED agening test.
4. Finished product passed 30 steps quality inspection.
5. 316L Stainless steel material with bracket lens, high temperature and heat resistance.
6. 316L stainless steel lamp cup, stronger corrosion resistance.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
