RGB Underwater Led Spotlights , 24W 24V Led Spot Lighting SS316L Adjust Angle Pool Light

Price Negotiable
Price: negotiation
MOQ: 1 pcs
Delivery Time: 5-7 working days
Brand: Birmate
Product Description

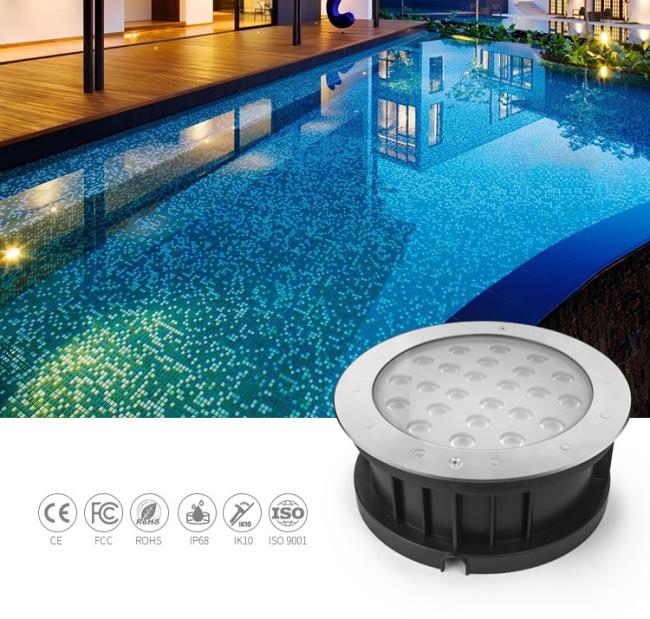

RGB Underwater Led Spotlights , 24W 24V Led Spot Lighting SS316L Adjust Angle pool light



Product details



1. IP Rate: IP68 Structural waterproof.

2. Recessed installation, parallel to the wall. Good looking.

3. IP68 Structure waterproof, all products succeeded in 10m deep water testing before delivery.

4. 316 screws are riveted on the surface cover, good looking and won't loosen.

5. RGB external control and DMX512 control are the best selling control in Heguang.

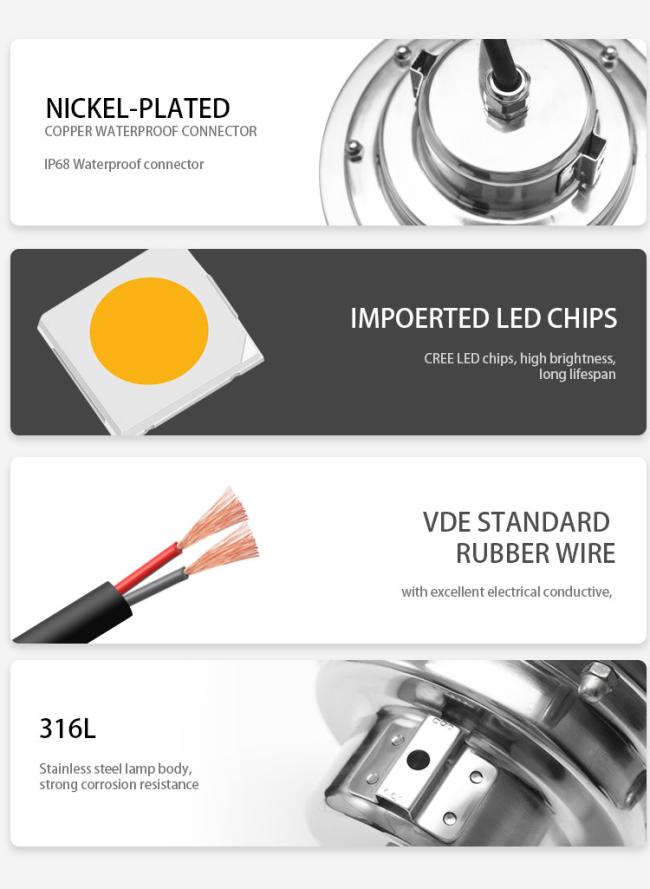

Product Features



1. Recessed under water light use 316L Stainless steel material, strong anti-corrosion ability.

2. Customized IP68 waterproof nickel plated brass design,good anti-corrosion.

3. Integrated bead lens with uniform lighting, no dazzling,light transmittance >85%.

4. Thickened aluminum board :2-3mm,better heat dissipation with the conductivity :2.0W/(m.k).

5. VDE waterproof cable with rubber sleeve, resistant voltage 2000V, temperature resistance at -40℃ to 90℃.



Specification



HG-UL-24W-SMD-R-RGB-X-12V/HG-UL-24W-SMD-R-RGB-D-12V
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ220×93mm
Input voltage DC12V/AC12V
Constant Driver yes
Over-current Protection yes
Wattage 23W±10%
Light lumen 900LM±10
Beam angle 15°/30°/45°/60°
CCT RGB ( synchronous control /DMX512/External /Wifi control)
Specifics Operating Temperature () -20~40
IP Rating IP68
Certificate CE, RoHS,FCC,IP68,IK10
Life-span 50,000 hours
Warranty 2Years
RGB Controller LED Underwater lights 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2, external controller (can get the RGB color changing synchronous) 4 wires
3.RGB synchronous control design,2 wires connection
test Site LED Underwater light (Min)
Working temperature 28 Working temperature 40
Underwater test lighting time(Min) 480 480
Light source edge temperature() 48 62













Advantage



1. Reliable quality with 100% 10m depth waterproof test.

2. IP68 structure waterproof, can long time use under water.

3. Good looking stamping SS316 rivet screws,more stable ,never fall off

4. Good looking with rivet screw and cover nut assembly,longer lifespan.

5. Under water light for fishing finished products all passed 30 steps quality inspection

6. LED pool lights under water swimming light must be 8 hours aging test and provide 2 Years warranty.



LED underwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth,

8 hours LED agening test,100% inspection before deliver.

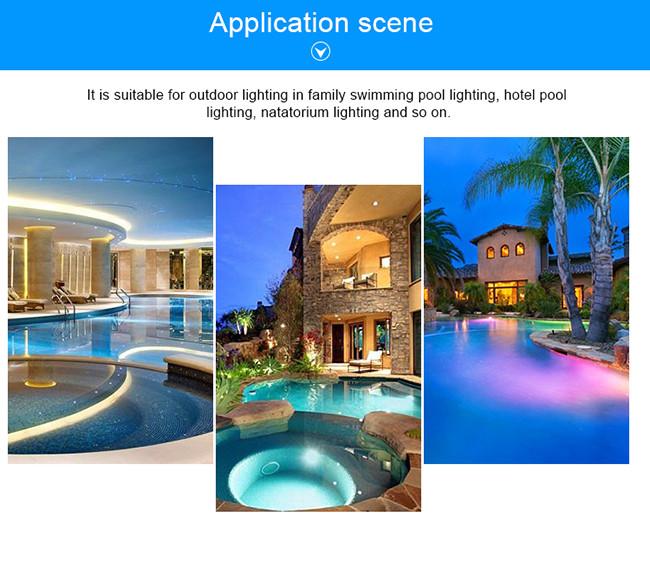

Application



(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.





Packing List



Item

HG-UL-24W-SMD-R-RGB-X-12V

Product weight 1700G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN





FAQ



1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us or tell us your email so that we will give priority to your inquiry.



2. Q: Do you accept the OEM&ODM?

A: Yes, OEM or ODM service are available.



3. Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.



4. Q: What is the MOQ?

A: NO MOQ, the more you order ,the cheaper price you will get.



5. Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.



6.Q: How many pieces of lamp can connect with one RGB synchronous controller?

A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
